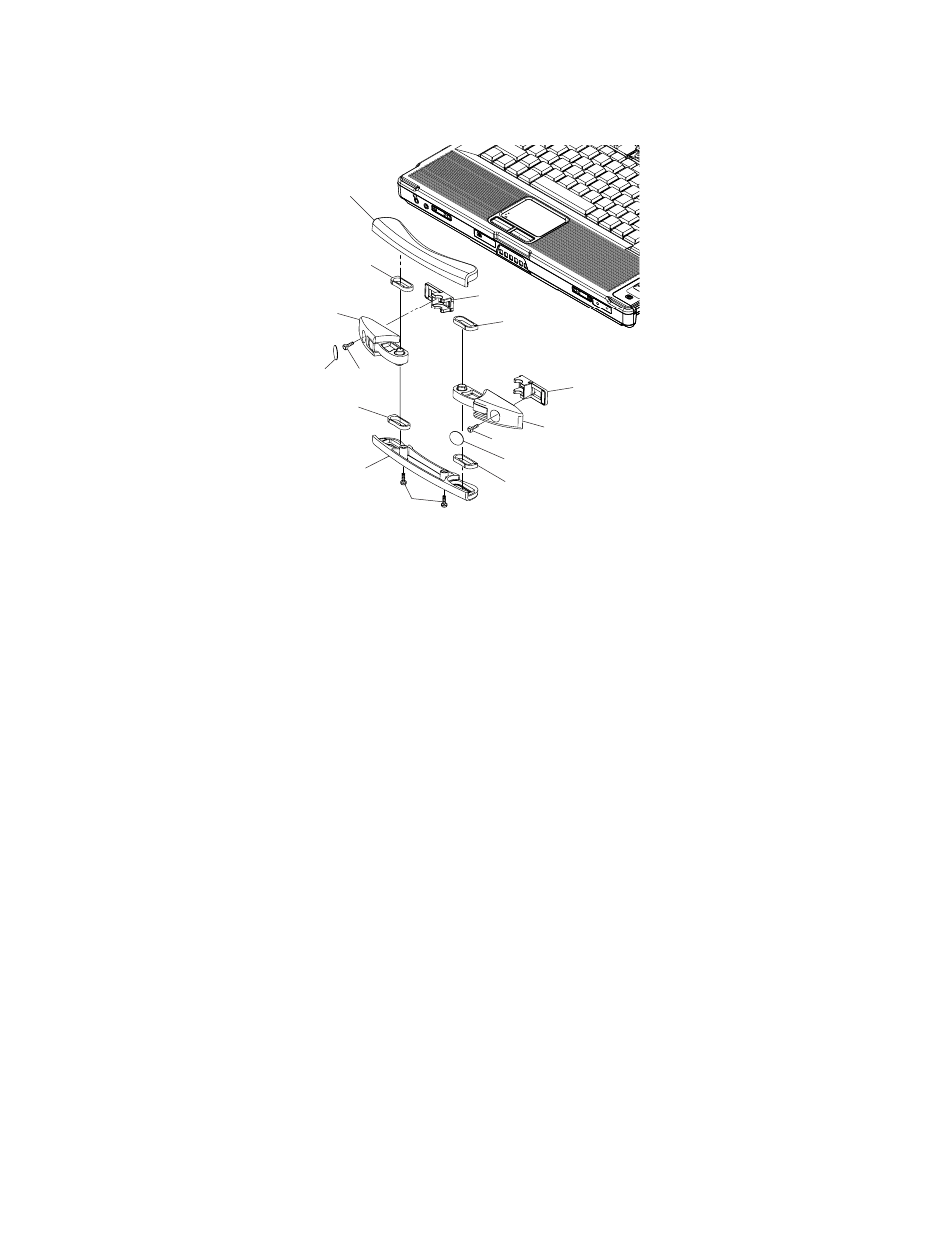

9.2.20. Setting the Handle Ass’y
1. Assemle the Handle Ass’y (Grip Upper, Grip Lower, Handle Base L, Handle Base R, Handle Ring and Handle Pom), and fix
them using the two Screws .
2. Fix the Handle Base Ass’y to the computer using the two Screws .
Paste the Handle Sheet on the Screws .
Screws : DRSB3+8FKLT
Screws : DRYN4+J12KLT
Grip upper
Handle
ring
Handle
ring
Handle
pom
Handle
pom
Handle
ring
Grip
lower
Handle
base L
Handle
base R
Handle
ring
Handle
sheet
Handle
sheet
