9-23

9.2.12.

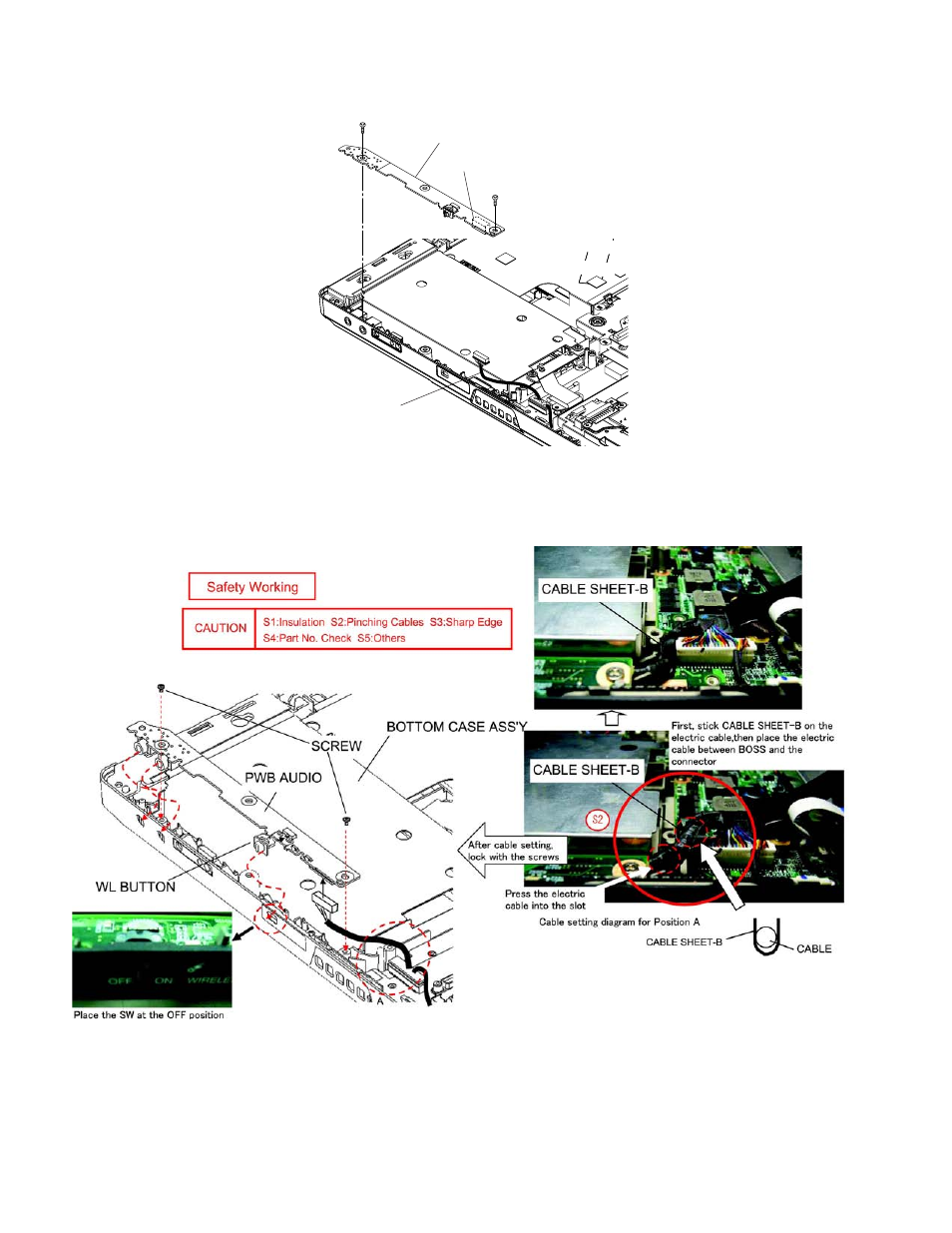

Setting the AUDIO PCB

1. Connect the Cable to the Connector(CN3000).
2. Set the AUDIO PCB to the computer, and fix it using the two Screws . No.1, No.2

Screw : DRHM0093ZA

Arranging the Cable and setting the WL button.

:No.1

AUDIO PCB

CN3000

Cable

:No.2
