9-24

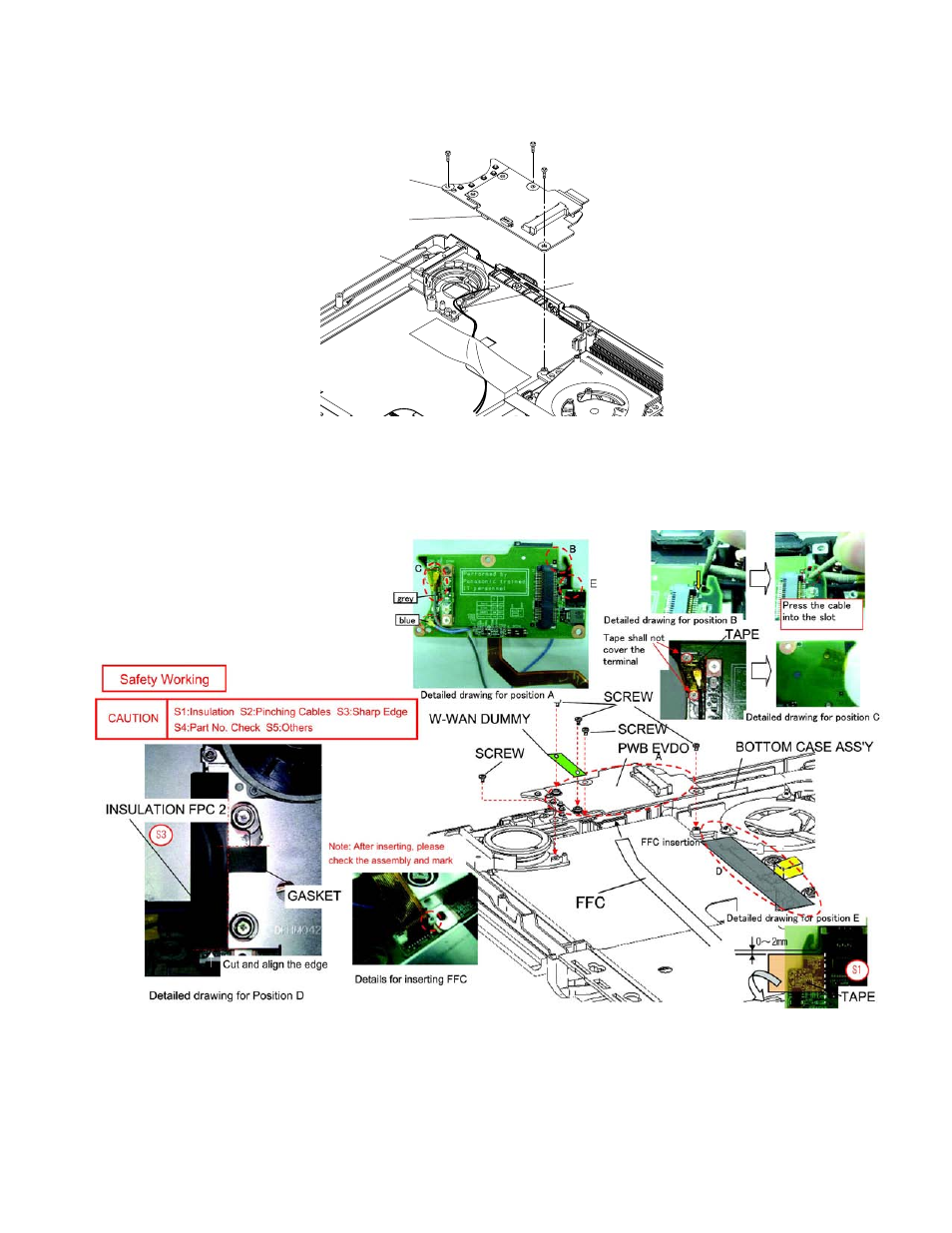

9.2.13. Setting the WWAN PCB
1. Connect the FPC to the Connector(CN7002).
2. Set the WWAN PCB, and fix it using two Screws and the Screw . No.1 to No.3
3. Connect the Cable(Gray) to JK7002 and Cable(Blue) to JK7004.
Screw : DFHE5122YA
Screw : DRHM5104ZAT
■Arranging the Cables and Tapes
:No.2
:No.3
:No.1
WWAN PCB
CN7002
Cable
(Blue)
Cable
(Gray)
