9-18

9.2.6.

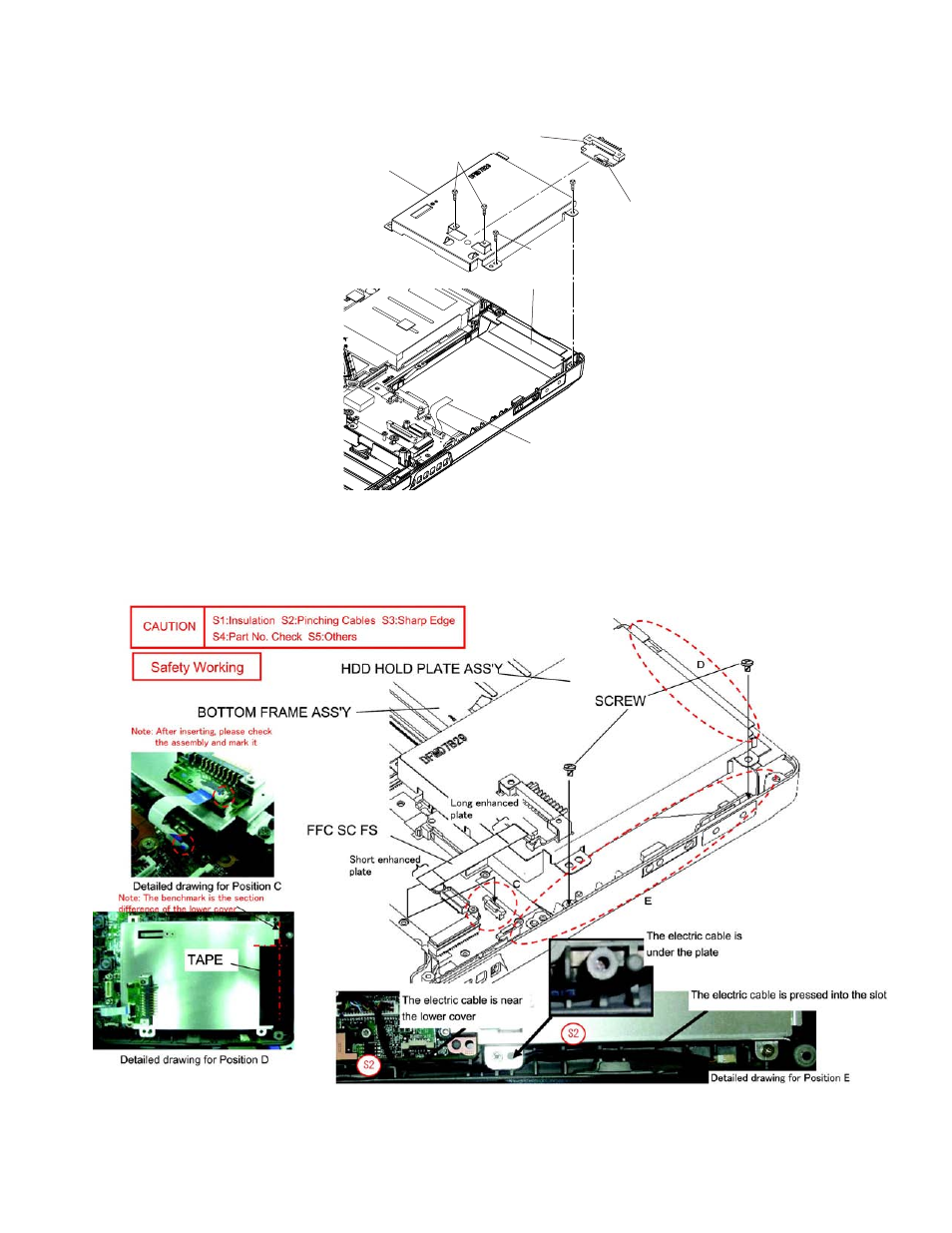

Setting the SC RELAY PCB and HDD Hold Plate

1. Set the SC REALY PCB to the HDD Hold Plate, and fix it using two Screws . No.1, No.2
2. Fix the HDD Hold Plate to the MAIN HIGH PCB using the two Screws . No.3, No.4
3. Connect the FFC to the Connector(CN6503) and paste the Tape.

Screws : DFHE5122YA
Screws : DRHM0093ZA

CN6503

SC RELAY PCB

HDD hold plate

FFC

Tape

:No.2

:No.1
