9-21

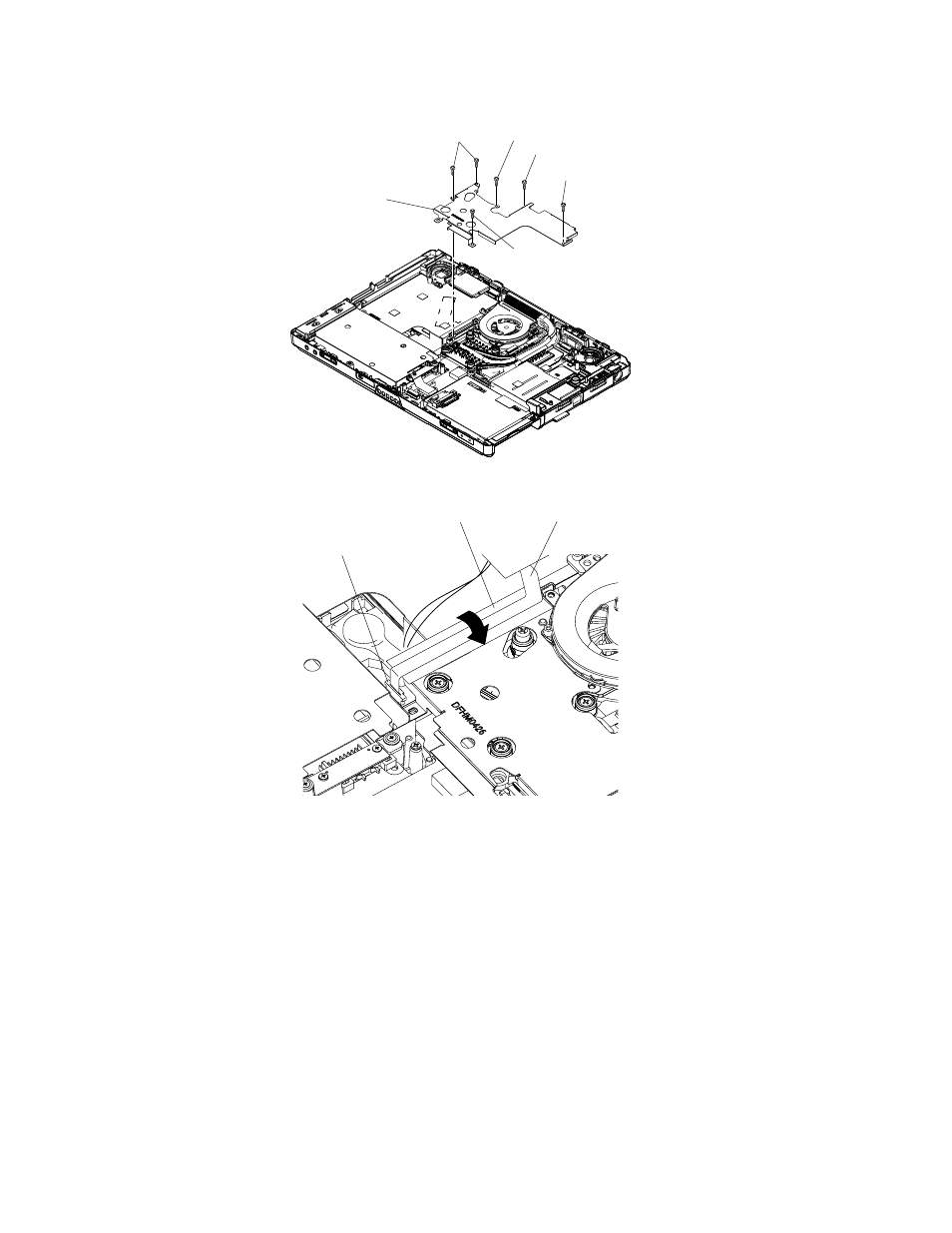

9.2.10. Setting the KBD Earth Plate
1. Set the KBD Earth Plate to the computer.
2. Fix the KBD Earth Plate using the four Screws . No.1 to No.4
3. Fix the KBD Earth Plate using the two Screws.
4. Paste the tape, and connect the FPC to the Connector(CN34).
Screw : DRHM0093ZA
Screw : DXYN2+F12FNL
:No.1
:No.4
KBD EARTH
PLATE
:No.2
:No.3
FFC Tape
CN34
