9-3

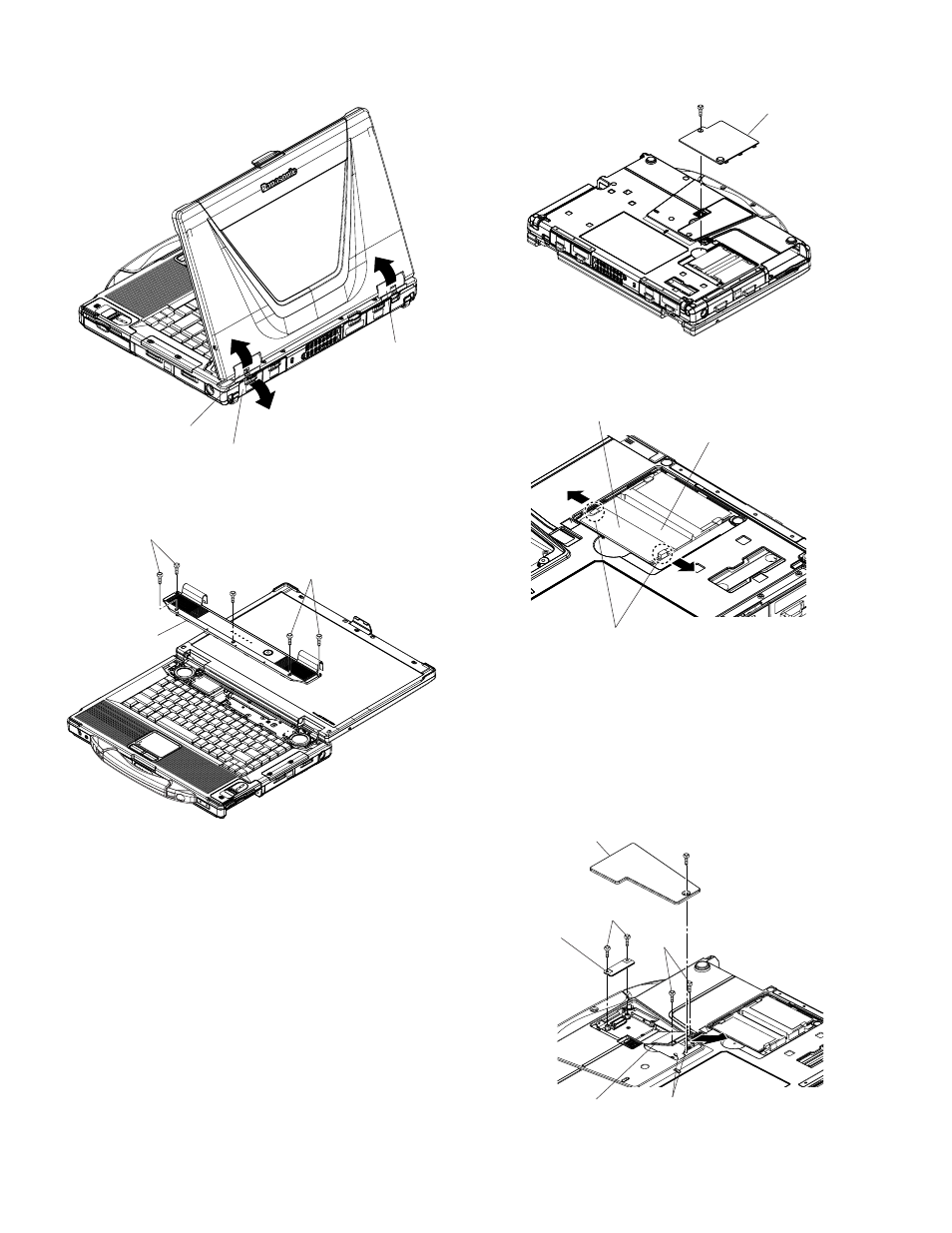

9.1.5. Removing the Tilt Panl Ass’y
1. Turn the Cover down and pull the Tilt Panel in the direc-
tion of arrows.
2. Remove the five Screws , and remove the Tilt
Panel Ass’y.
Screws : DRSB2+4FKLT
9.1.6. Removing the DIMM Memory Card
1. Remove the Screw , and remove the DIMM Cover.
2. Open the right and left Hooks of the DIMM Memory Card
outward, and remove the DIMM Memory Card.
Screws : DRSB2+3FKLT
9.1.7. Removing the ROBSON Cover,
Wireless LAN Module and BIOS
PCB
1. Remove the Screw , and remove the ROBSON
Cover.
Cover
Tilt panel
Tilt panel
Tilt panel ass'y
DIMM cover
DIMM memory card
Hook
DIMM memory connector
Wireless
LAN module Cables
(Gray and blue)
ROBSON cover
BIOS PCB
