9.1.7.1. Wireless LAN Module
1. Remove the two Screws and two Cables(Gray and
Blue).
2. Pull out the Wireless LAN Module in the direction of
arrows.
9.1.7.2. BIOS PCB
1. Remove the two Screws , and remove the BIOS
PCB.
Screws : DFHE5122YA
Screws : DRHM0065ZA

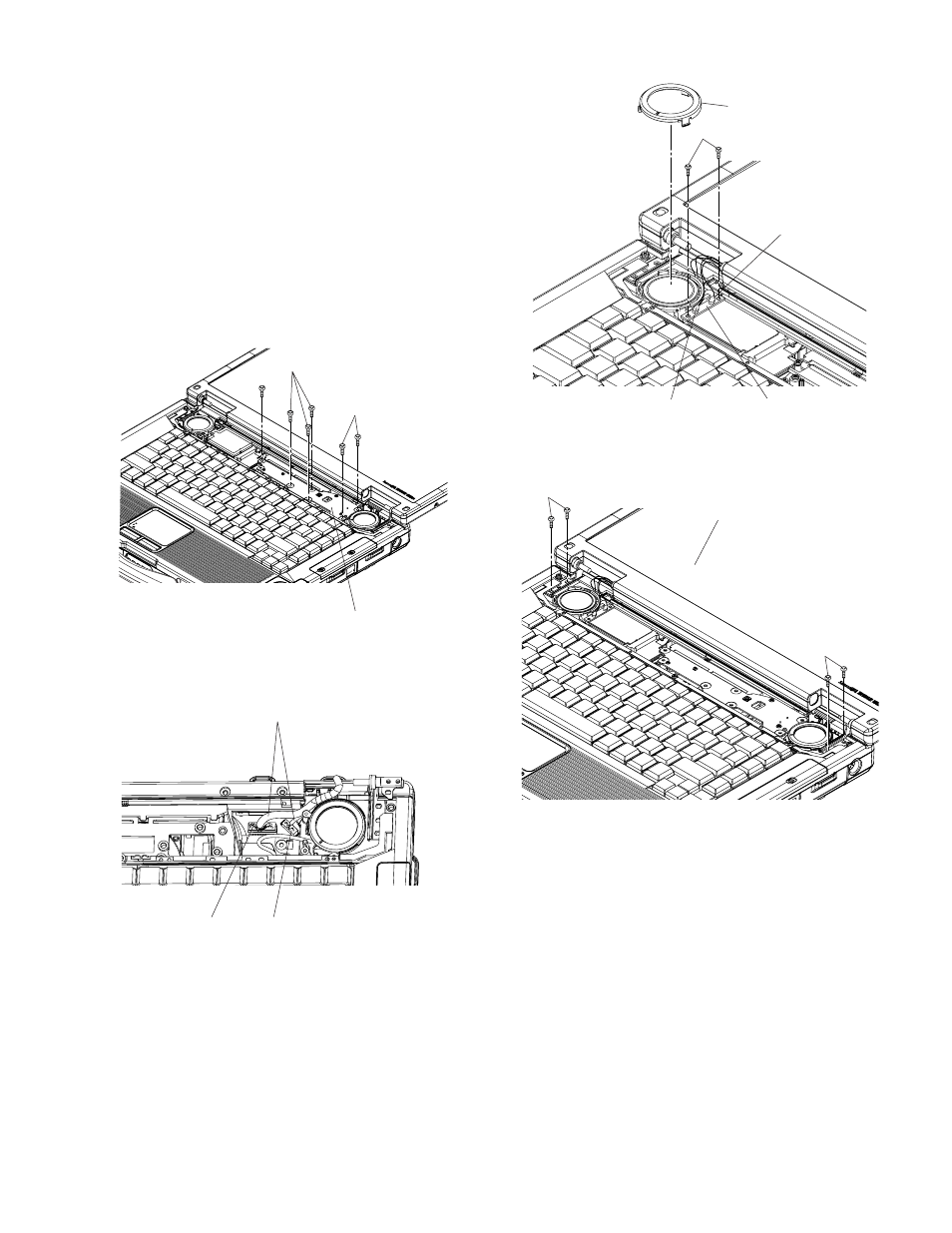

9.1.8. Removing the Display unit
1. Remove the six Screws , and turn over the SW LED
MDC PCB.
2. Disconnect the two Cables from the Connectors (CN5
and CN35).
3. Remove the Speaker Holder L and four Cables (black,
white, blue and grey).
Remove the two Screws , and BIOS HIGH PCB.
4. Remove the four Screws , and remove the Display
unit.
Screws : DFHE5122YA
Screws : DRHM0093ZA
SW LED MDC PCB
Cables
CN5 CN35
Cable (black)
Cable (white) BIOS HIGH PCB
Speaker holder
Display unit
