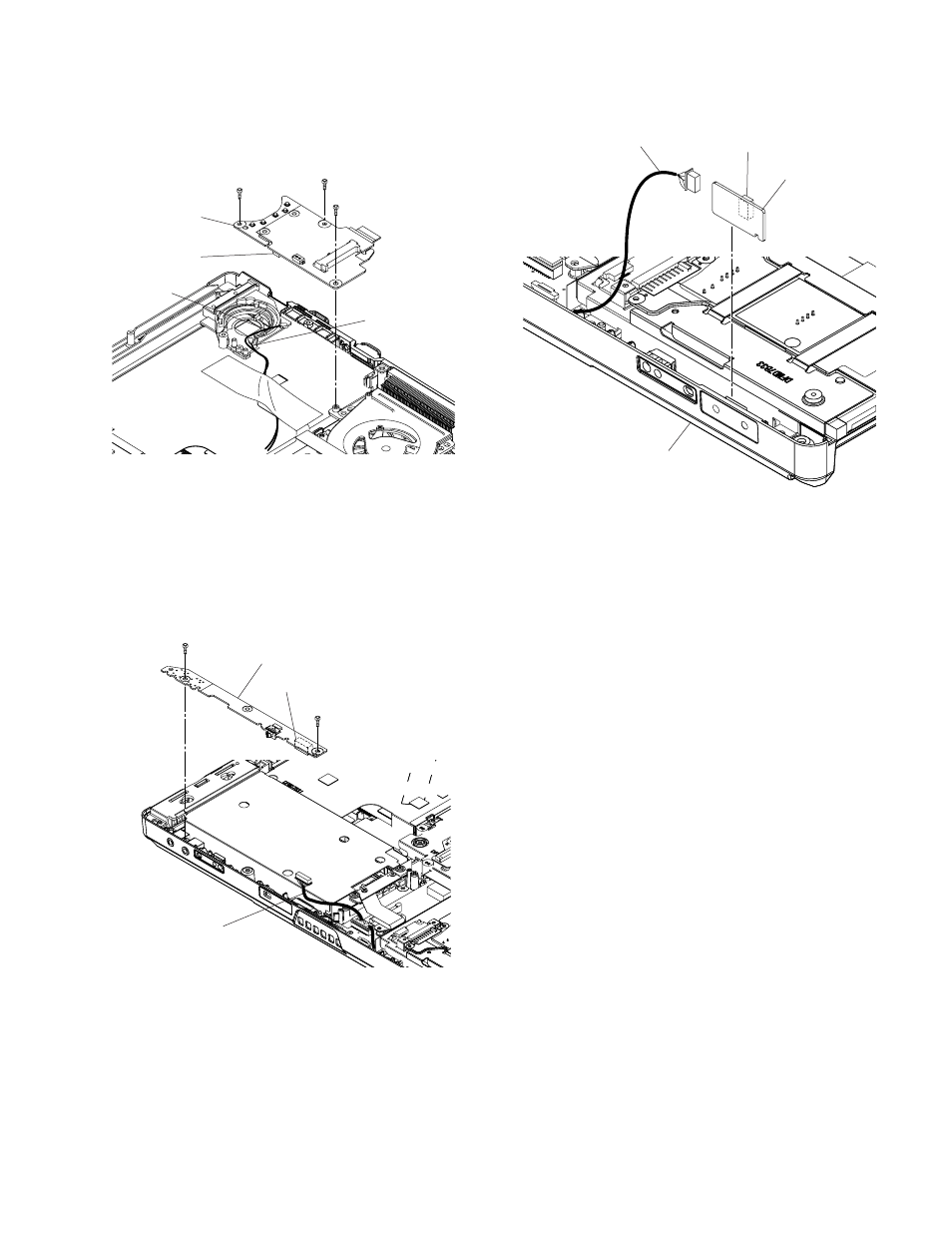

9.1.17. Removing the WWAN PCB
1. Disconnect the Cables(Gray and Blue) from the WWAN
PCB.
2. Remove the two Screws and the Screw .
3. Disconnect the FPC from the Connector(CN7002), and
remove the SD PCB.
Screws : DFHE5122YA
Screw : DRHM5104ZAT
9.1.18. Removing the AUDIO PCB
1. Remove the two Screws .
2. Disconnect the Cable from the Connector(CN3000), and
remove the AUDIO PCB.
Screw : DRHM0093ZA
9.1.19. Removing the PWR BATTERY LED
PCB
1. Remove the PWR BATTERY LED PCB, and disconnect
the Cable from the Connector(CN4400).
WWAN PCB
CN7002
Cable
(Blue)
Cable
(Gray)
AUDIO PCB
CN3000
Cable
CN4400
Cable
PWR BATTERY
LED PCB
Bottom case ass'y
