Setting the Keyboard

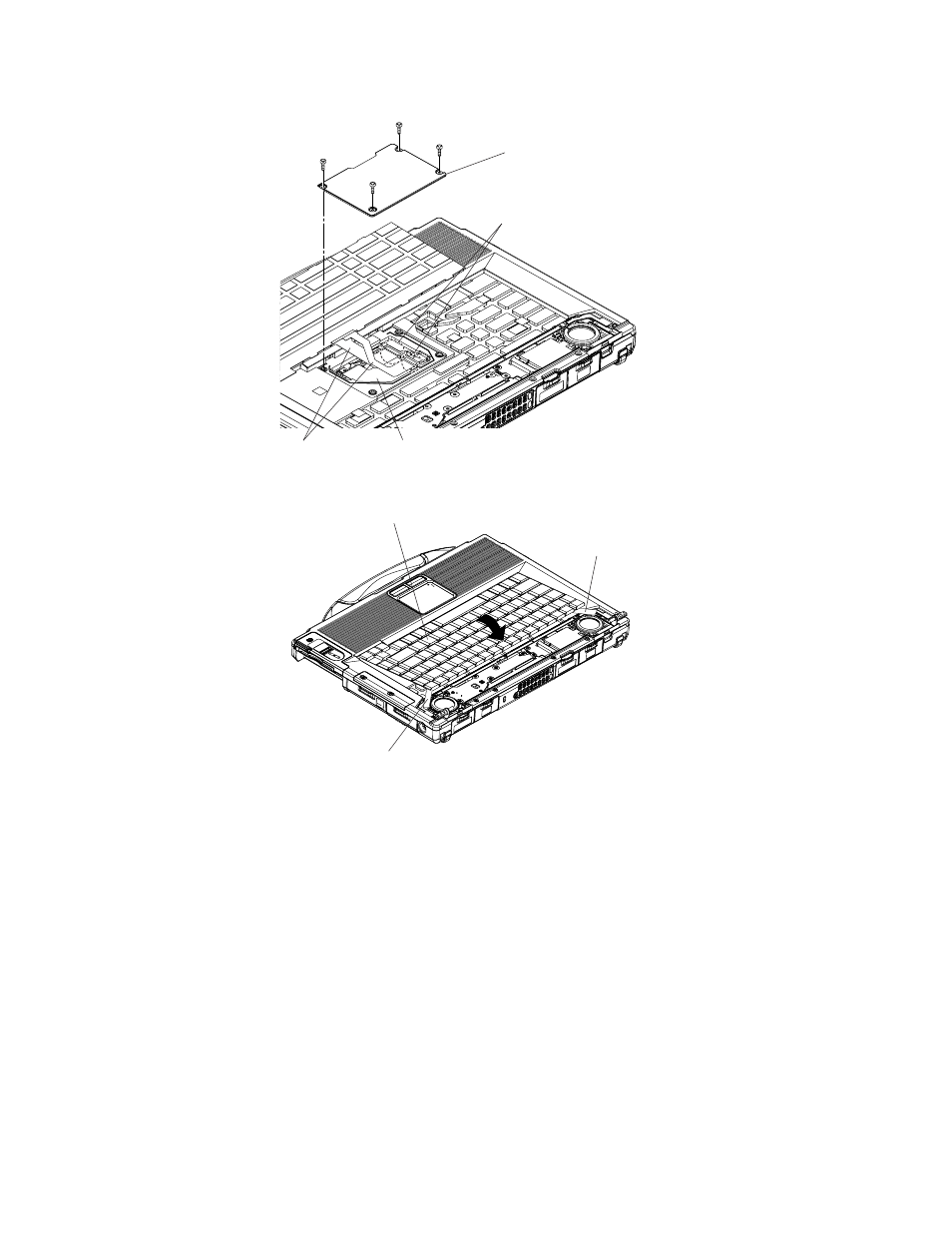

1. Connect the FPCs to the Connector on the KBD FPC.
2. Place the Keyboard Lid Plate on the Top Cover, and fix it using the four Screws . No.1 to No.4

3. Place the Keyboard on the Top Cover and paste the Tapes.

Screws : DFHE5122YA

KBD FPC

Connectors

Key board lid plate

:No.4

:No.1

:No.2

:No.3

FPC

Keyboard

Tape

Tape
