9-20
9.2.9.

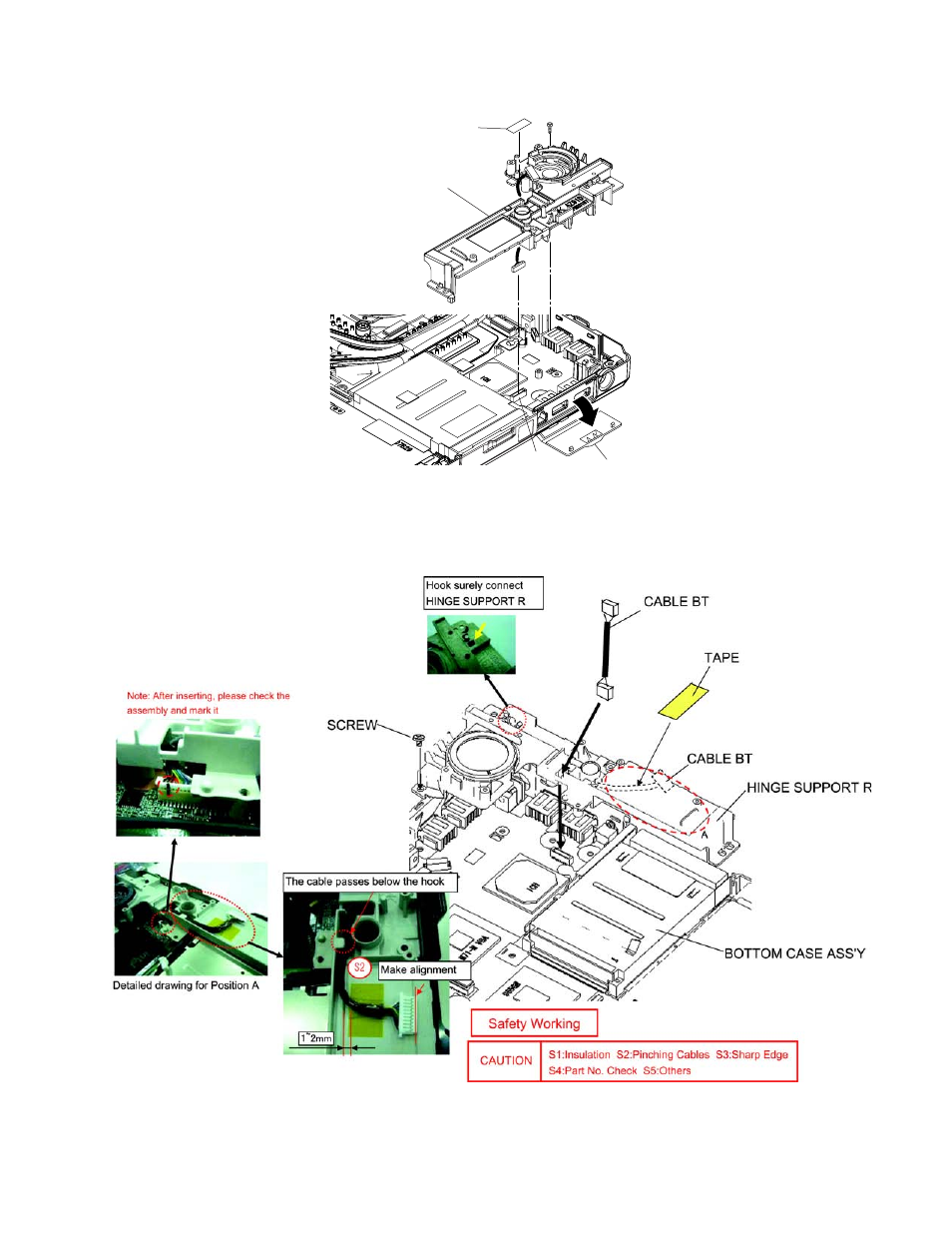

Setting the Hinge Cover R
1. Place the Cable through the rectangled hole of Hinge Support R and connect the Cable to the Connector (CN7).
2. Fix the Hinge Support R to the computer using the Screw .
Screw : DRHM0093ZA
■How to place the Cable
Tape
Hinge support R
Cover PC card
CN7
