9-19

9.2.7.

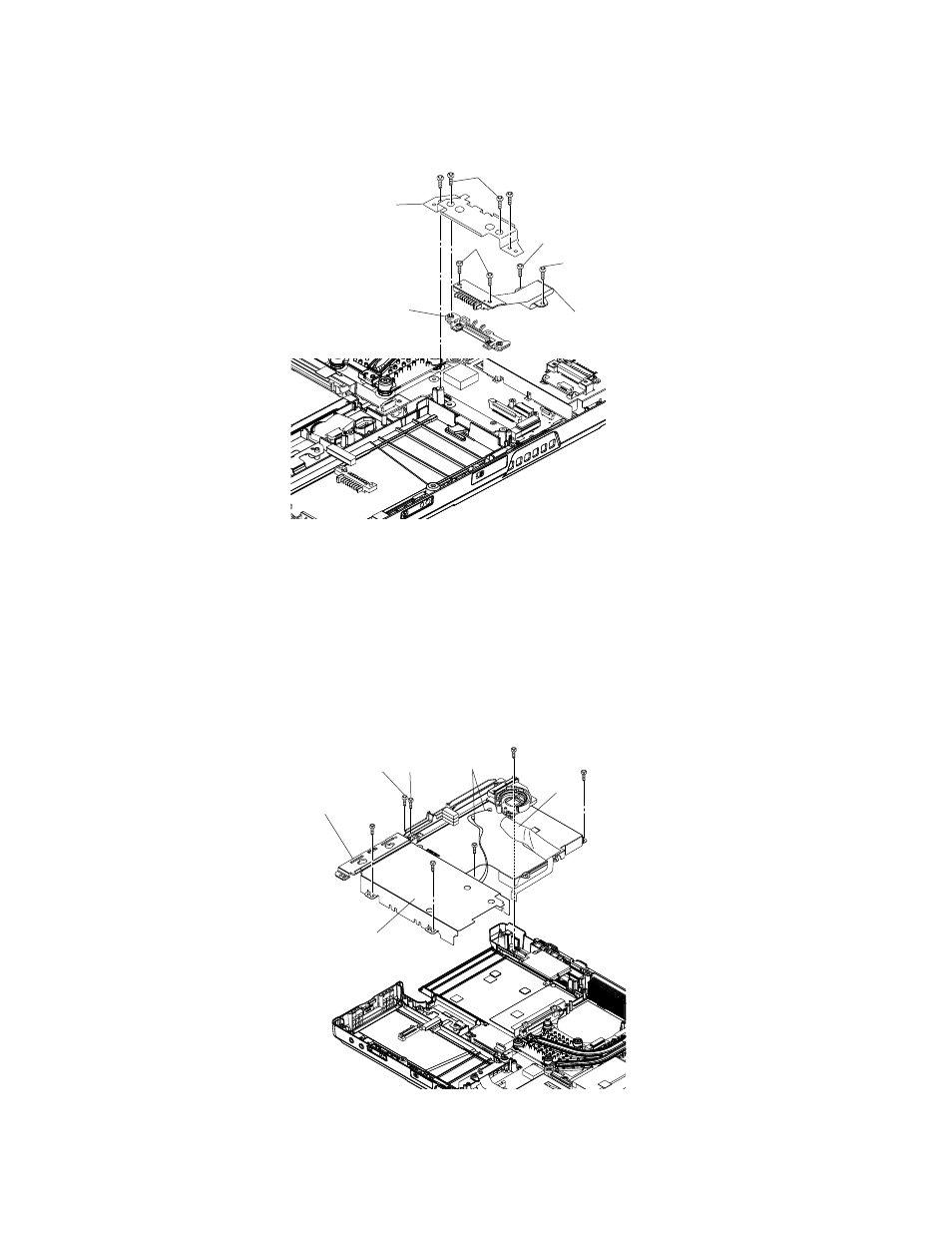

Setting the Battery Connector Ass’y

1. Fix the Batt Con Holder to the FPC Batt using the two Screws .
2. Fix the Batt Con Holder to the Batt FPC Plate using the two Screws .
3. Fix the Batt FPC Plate to the computer using the two Screws . No.1, No.2
4. Connect the FPC Batt’s connector to the connector(CN1000), and fix the FPC Batt to the MAIN HIGH PCB using the two

Screws . No.1, No.2

Screw : DFHE5122YA
Screw : DRHM0093ZA
Screw : DRHM0112ZA
Screw : DRHM0115ZA

9.2.8.

Setting the Hinge Support L and MP Hold Plate

1. Set the Hinge Support L and MP Hold Plate to the computer.
2. Fix the Hinge Support L and MP Hold Plate using the six Screws . No.1 to No.6
3. Paste the Tapes.

Screw : DRHM0093ZA

:No.3

:No.4

Batt FPC plate

Batt con holder

FPC batt

:No.1

:No.2

Cables
(Gray and
Blue)

Tapes

Hinge

support L

MP hold

plate

:No.1

:No.2

:No.3

:No.4

:No.5

:No.6

:No.7
