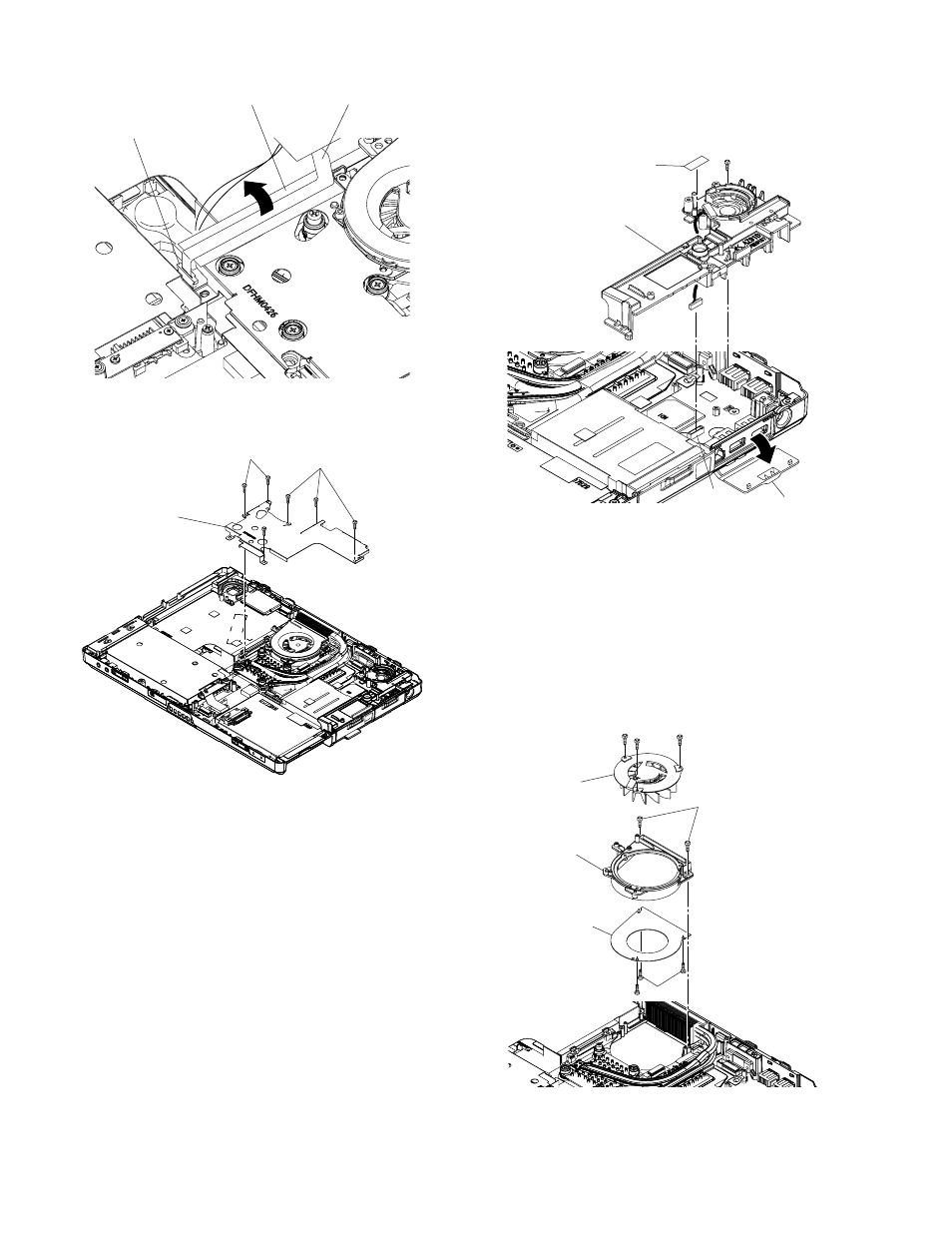

9.1.20. Removing the KBD Earth Plate
1. Remove the Tape in the direction of arrow.
2. Remove the four Screws and two Screws ,
and remove the KBD Earth Plate.
Screw : DRHM0093ZA
Screw : DXYN2+F12FNL
9.1.21. Removing the Hinge Support R
1. Peel off the Tape and remove the Screw .
2. Disconnect the Cable from the Connector (CN7).
3. Turn the Cover PC Card down in the direction of arrow,
and remove the Hinge Support R.
Screw : DRHM0093ZA
9.1.22. Removing the Fan Ass’y
1. Disconnect the Cable from the Connector(CN18).
2. Remove the two Screws , and remove the Fan
Ass’y.
3. Remove the three Screws , and remove the Fan.
4. Remove the three Screws , and remove the Fan
Case Plate.
Screw : DFHE5122YA
Screw : DRHM0093ZA
Screw : DXSB2+4FNLT
FFC Tape
CN34
KBD EARTH
PLATE
Tape
Hinge support R
Cover PC card
CN7
Fan
Fan case
Fan case plate
