Matsushita CF-52AJYZDZM - Manual (Page 58)

9-35

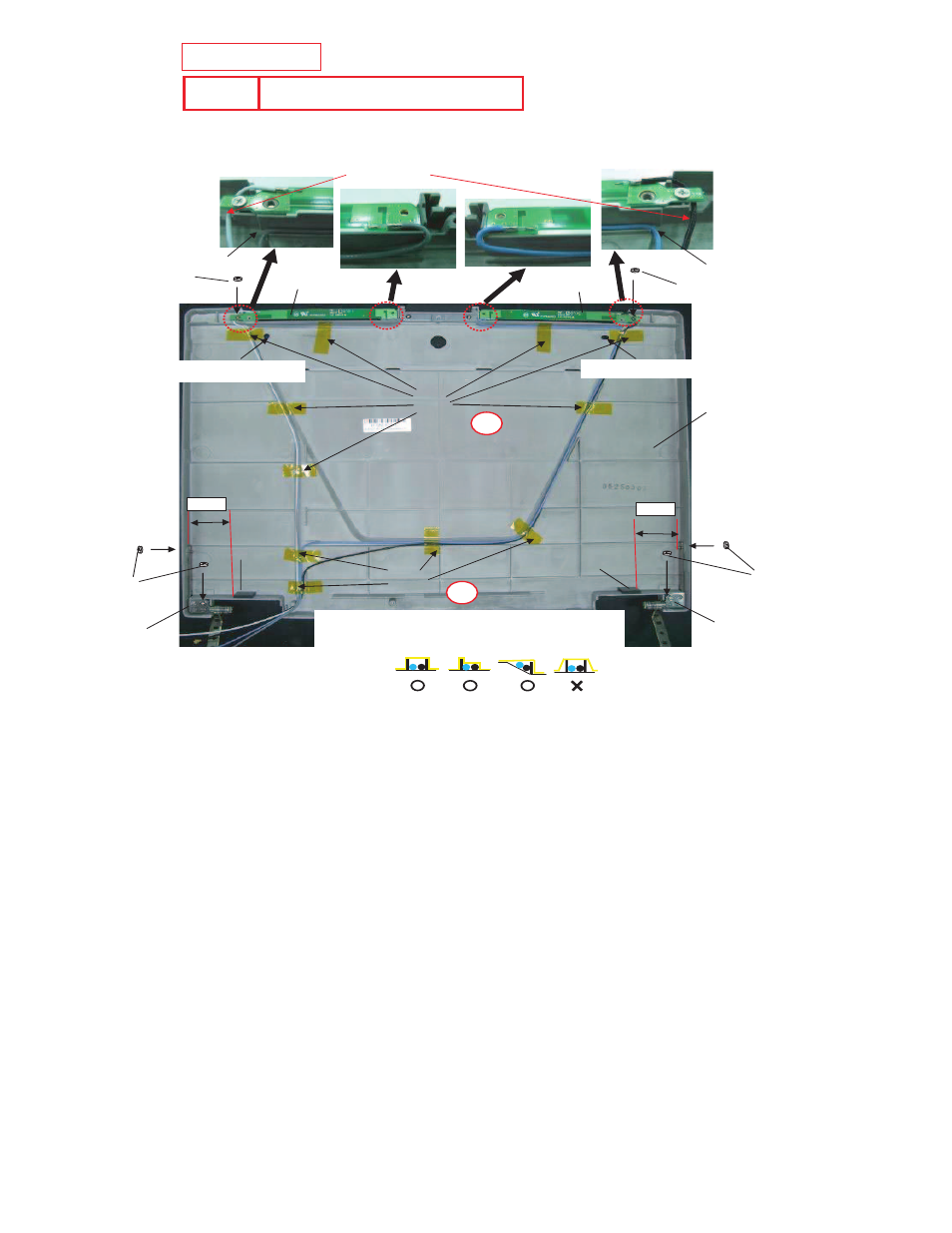

Attention: The heat-resistant adhesive tape
shall be stuck onto the part surely.
Tape shall not cover the round hole
Along the slot
S5
S5
The Cable is under
the base plate
Along the slot
Tape shall not cover the round hole
LCD REAR COVER
HINGE L
TAPE
PWB ANT L PWB ANT R
LCD DAMPER E
SCREW
SCREW
SCREW
SCREW
TAPE
LCD DAMPER E
HINGE R
CAUTION
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Safety Working
