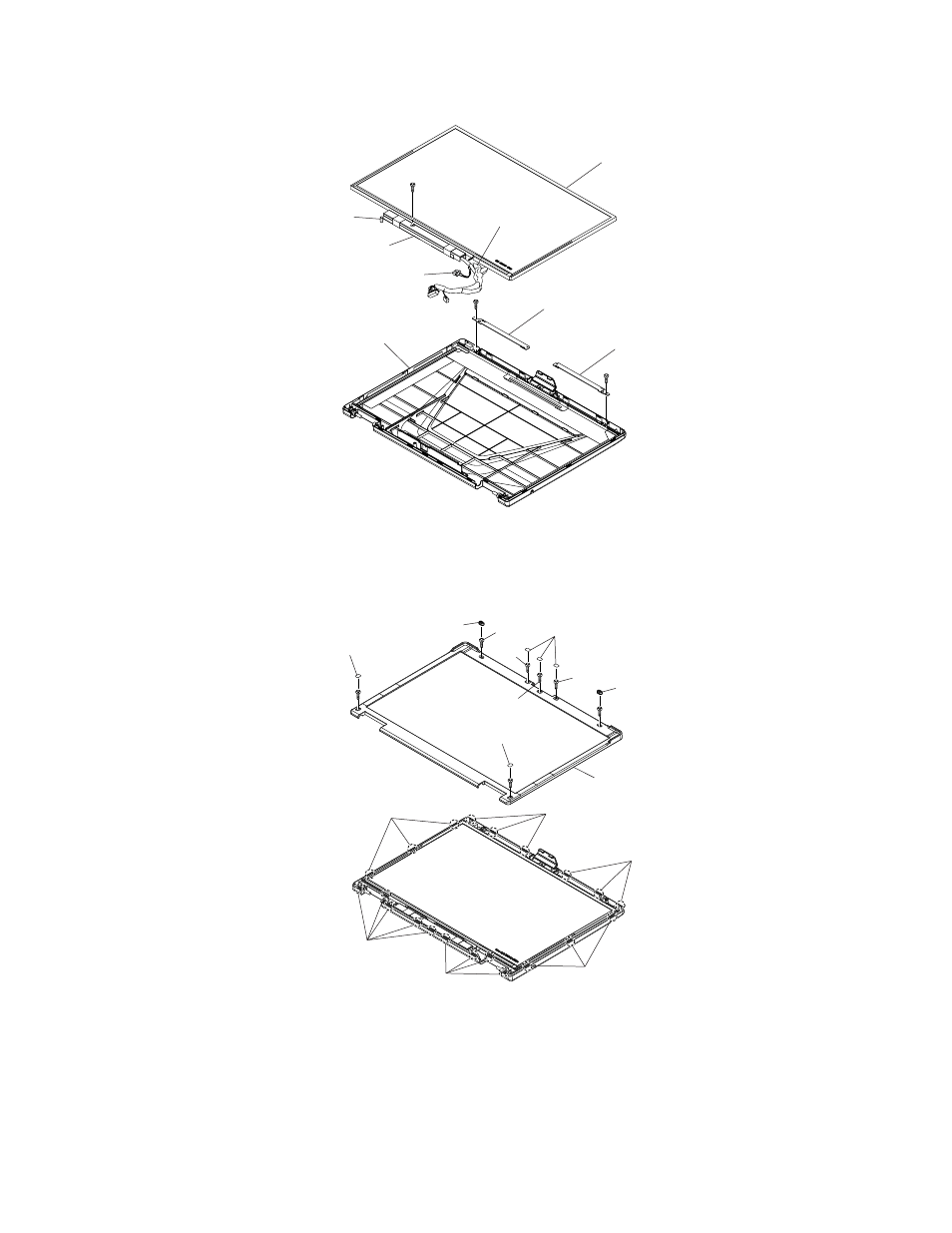

9.2.21. Setting the LCD Unit, Inverter Ass’y and Antenna PWB L, R
1. Set the LCD Unit to the LCD Rear Cover
2. Fix the Inverter Ass’y using the Screw .
3. Fix the Anttena PWB L and R using the Screws .
4. Place the LCD Front on the LCD Rear Case.
Confirm that the twenty-one Hooks are fixed perfectly.
5. Fix the LCD Front using the five Screws and two Screws .
6. Paste the LCD Screw Sheet and LCD Rubber.
Screws : DFHE5122YA
Screw : DRHM0093ZA
Screws : DXSB2+4FNLT
Screws : XQN17+BJ6FJ
Cable
Inverter
ass'y
Cable
Tape
LCD rear cover
ANTENNA
PWB R
LCD unit
ANTENNA
PWB L
LCD
rubber
LCD
rubber
LCD screw
sheet
LCD screw
sheet
LCD screw
sheet
Hooks
Hooks
Hooks
Hooks
Hooks
LCD front
Hooks
