9-12

9.2.

Reassembly Instructions

9.2.1.

Attention when CF-52 series is repaired

• Please execute writing BIOS ID when you exchange the Main Board.
• You cannot reuse the Conductive Clothes and the heat dissipating parts such as Sheet and Rubber. Use new parts.

9.2.2.

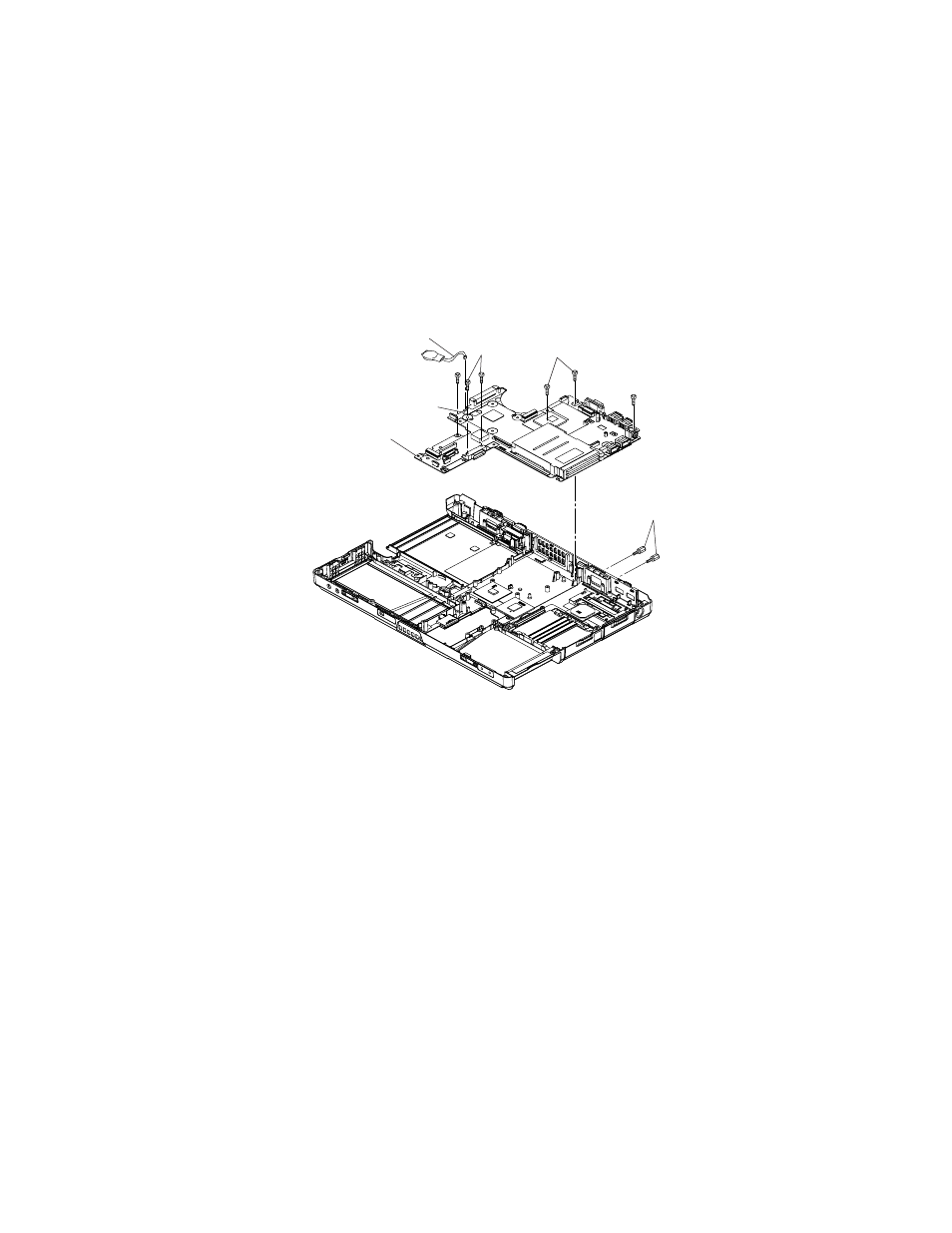

Setting the MAIN HIGH PCB

Note:

After replacing the Main Board, rewrite the BIOS ID.

1. Set the MAIN HIGH PCB to the computer.
2. Fix the MAIN HIGH PCB using the two Screws . No.1, No.2
3. Fix the MAIN HIGH PCB using the two Screws . No.3 to No.6
4. Fix the MAIN HIGH PCB using the two Screws .
5. Connect the Battery Cable to the Connector (CN42).

Screw : DFHE5035ZB
Screw : DRHM0093ZA
Screw : DXYN2+F12FNL
Screws : DFHE5025XA

CN4

MAIN HIGH PCB

Battery

cable

:No.1

:No.2

:No.3

:No.4

:No.6

:No.5
