Page 29: Removing the keyboard

9-6

9.1.11.

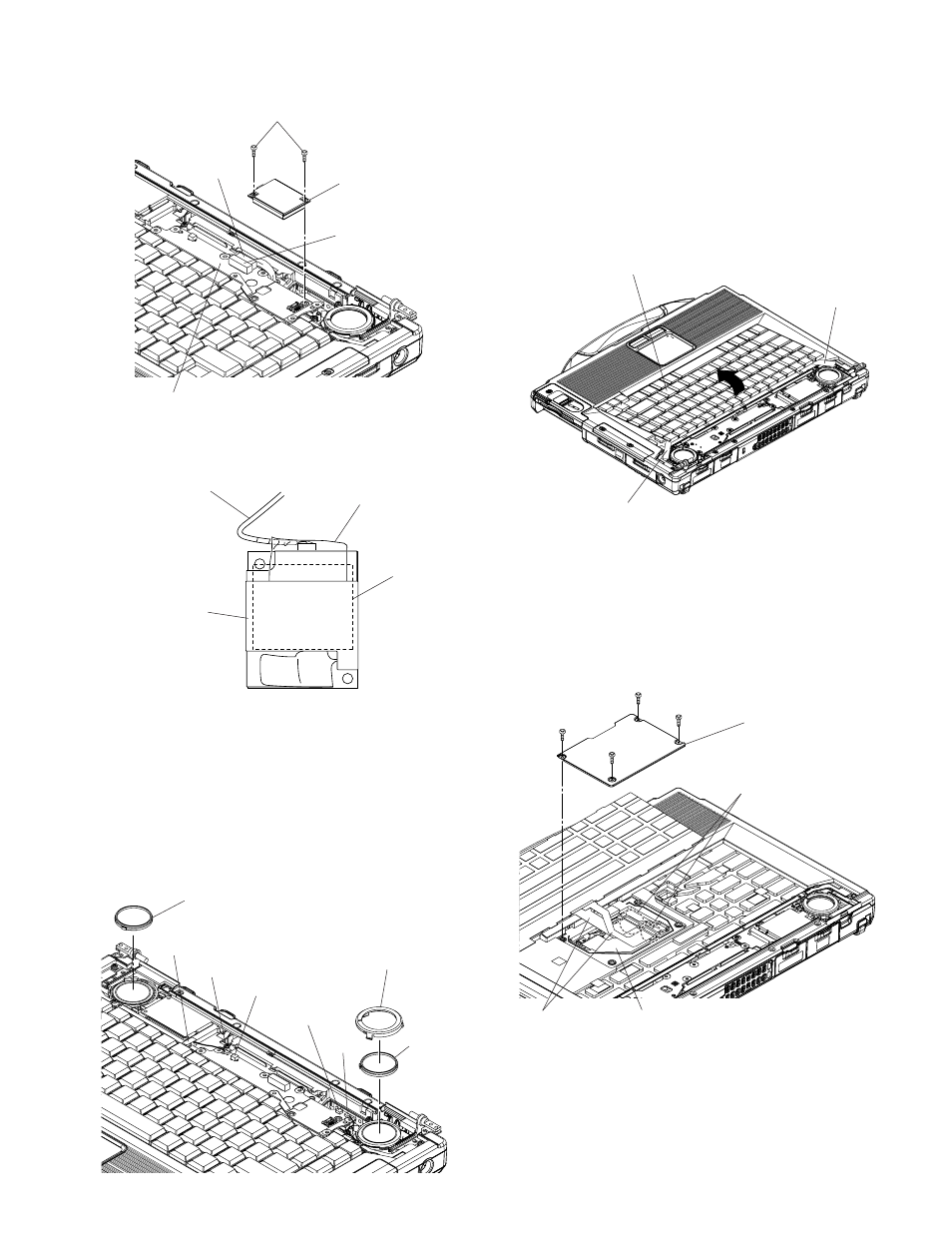

Removing the Modem

1. Disconnect the Cable from the Connecor(CN4200).
2. Remove the two Screws , and remove the Modem.

3. Remove the Tape1, Conductive tape-modem and Tape2,

disconnect the Cable from Modem

Screws : DFHE5122YA

9.1.12.

Removing the SW LED MDC PCB
and Speakers

9.1.12.1. SW LED MDC PCB

1. Disconnect the Cables from the Connectors(CN4202 and

CN4203), and remove SW LED MDC PCB.

9.1.12.2. Speaker R

1. Remove the Speaker Holder R, and remove the Speaker

9.1.12.3. Speaker L

1. Remove the Tape, and remove the Speaker L.

9.1.13.

Removing the Keyboard

1. Remove the two Tapes.
2. Lift the upper part of the Keyboard and draw it backward,

and then turn the Keyboard over forward.

Note:

Take extreme care when peeling off the tape as it is
strongly sticked.

3. Remove the four Screws , and remove the Key-

board Lid Plate.

4. Disconnect the two FPC from the two Connectors (KBD

FPC).

5. Remove the Keyboard.

Screws : DFHE5122YA

Modem

CN4200

SW LED MDC PCB

Cable

Tape 2

Tape 1

Conductive

tape-modem

Cable

CN4202

CN4203

Speaker holder R

Speaker
R

Speaker
L

Tape

Keyboard

Tape

KBD FPC

Connectors

Key board lid plate

FPC
