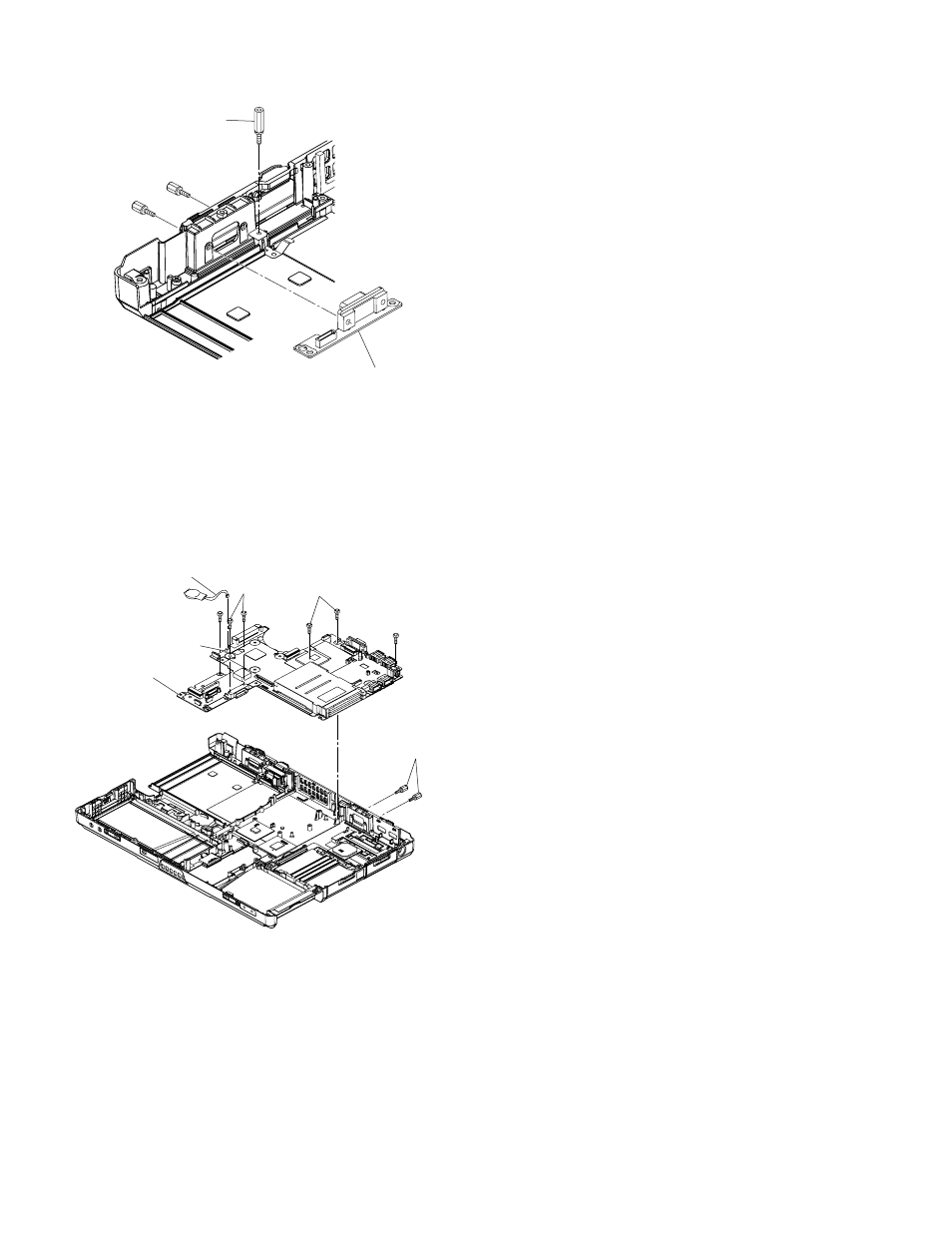

9.1.27. Removing the SERIAL PCB
1. Remove the two Screws and Hex Spacer.
2. Remove the SERIAL PCB.
Screw : DFHE5035ZB
9.1.28. Removing the MAIN HIGH PCB
1. Remove the two Screws , four Screws and
two Screws .
2. Disconnect the Battery Cable from the Connector(CN4).
3. Remove the MAIN HIGH PCB.
Screw : DFHE5035ZB
Screw : DRHM0093ZA
Screw : DXYN2+F12FNL
Hex spacer
SERIAL PCB
CN4
MAIN HIGH PCB
Battery
cable
