78

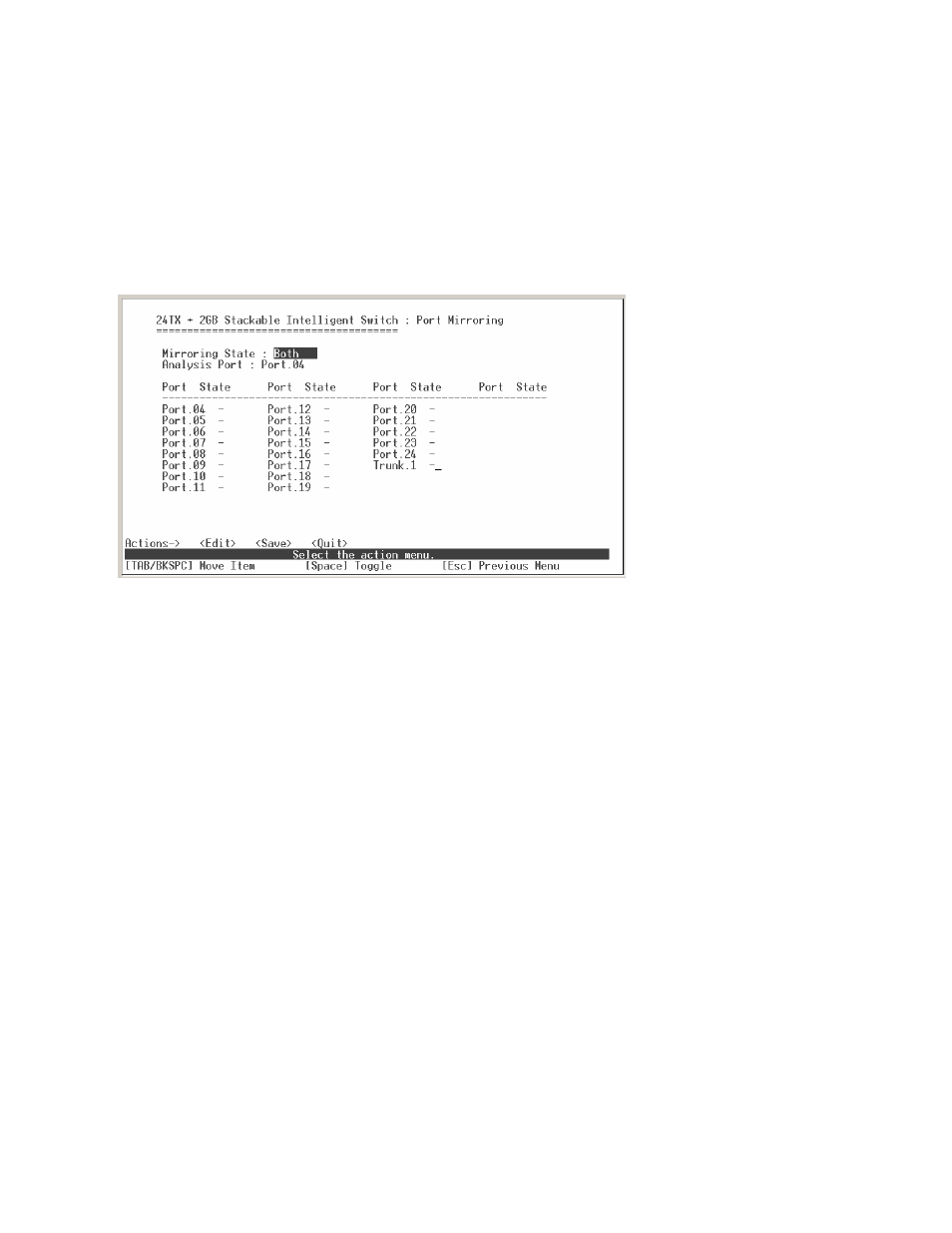

6-3-4. Port Mirroring Configuration
Port mirroring is a method for monitoring traffic in switched networks. Traffic
through ports can be monitored by one specific port. The traffic being received
or transmitted by the monitored ports will be duplicated into the monitoring port.
Press the Space key to change the configuration of an item.
Mirroring state: User can select Mirror mode for TX packet only, RX packet
only or Both.
Analysis port: The port to which all traffic to be mirrored will be sent.
Press the SPACE key to mark each of the ports that should be mirrored.
Actions->
: Exits the port mirroring configuration page and returns to previous
menu.
: Configures all items. When finished, pressing ESC returns to the action
menu line.
