193
7-6-1. Setting up an IP Stacking Group

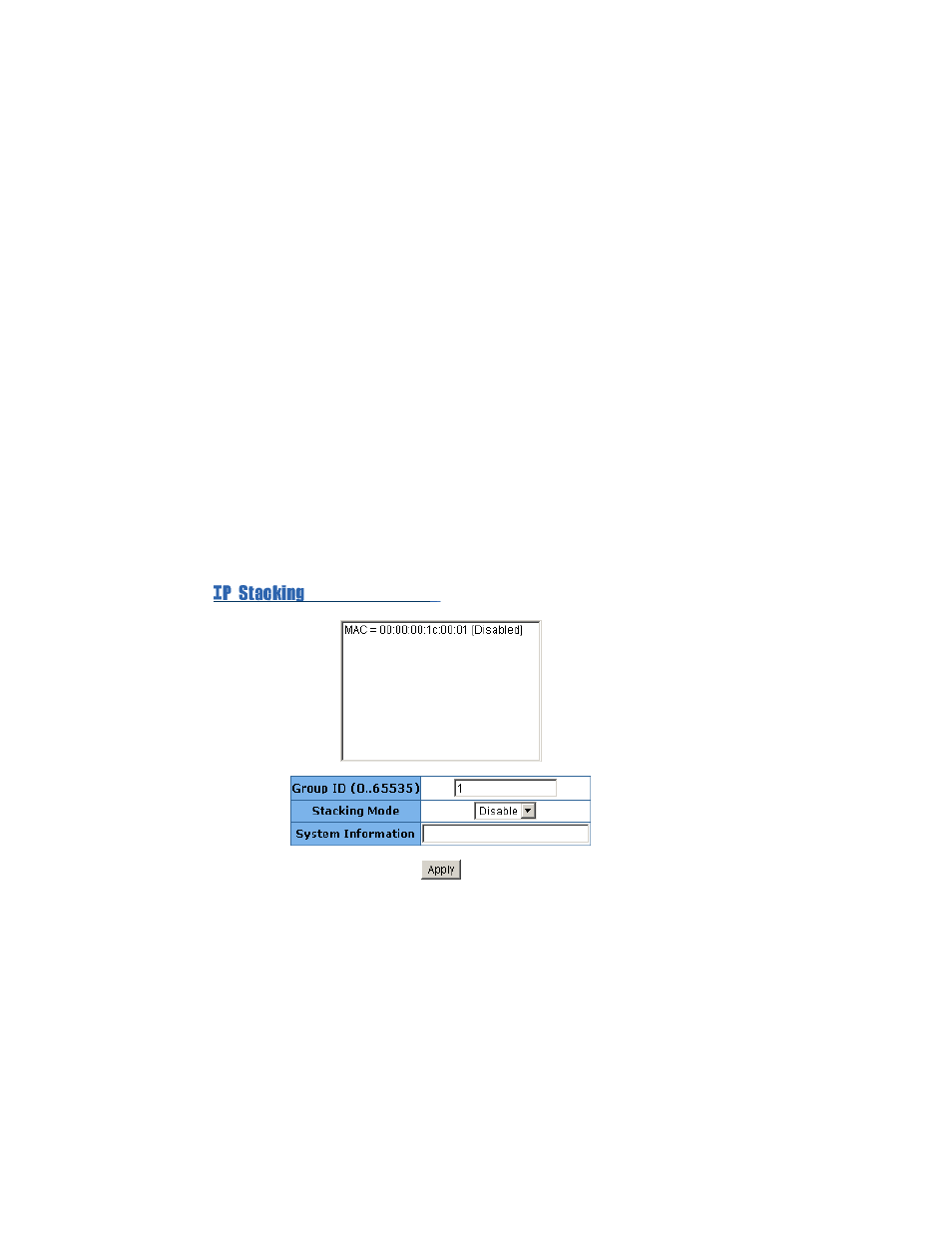

Select IP Stacking in the menu bar and enter the following information for the
master switch in the stack. Click the Apply button to save the new configuration.
Group ID (0...65535): Assign a group ID for stacking group. The switches in
the same stacking group have same group ID.
Stacking Mode: Select one of the following as the stacking mode for each
switch.
Disable: The stacking function is not enabled.
Master: One switch must be selected to control all other switches in
stacking group. Only one switch can be assigned to be the master switch in
one stacking group. Once the stacking group is set up, the master switch
will control all switches in the stacking group.
Slave: All remaining switches in a stacking group must be configured to
slave mode. Once the stacking group is set up, the slave switches can only
be configured through the master switch.
System Information: Enter a brief description of the switch.
