Hardware Description
Front Panel
The Front Panel of the MIL-SM2401M-STK switch series consists of 24
10/100Base-TX RJ-45 ports (Auto MDI/MDIX) and one expansion slot. The LED
Indicators and console port are also located on the front panel of the switch.
Console LED Fast Ethernet Ports Module Bay
Port Indicators

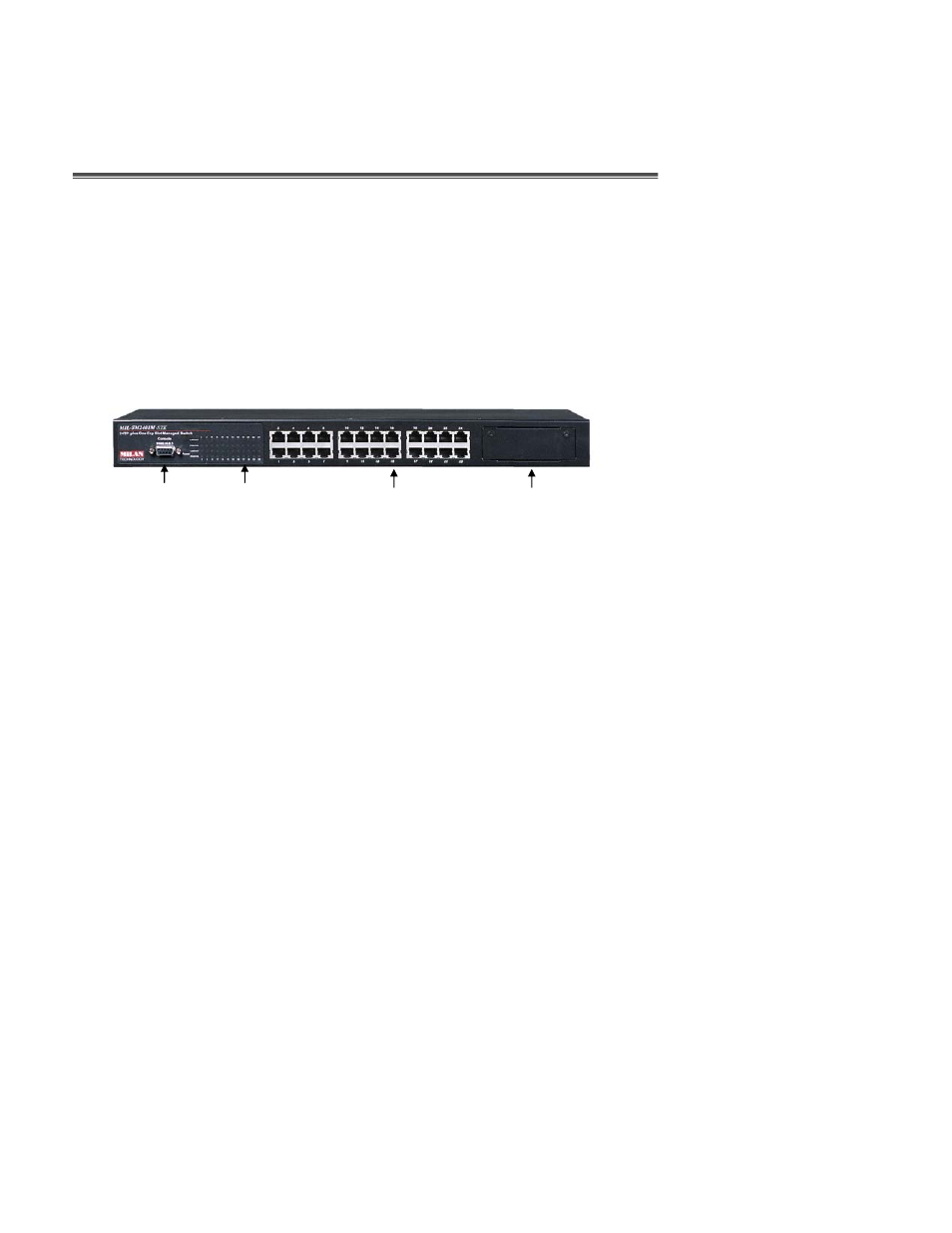

Figure 2-1. Front panel for MIL-SM2401M-STK
„ 100BASE-TX UTP Ports: The MIL-SM2401M-STK comes with 24 100Mbps
Fast Ethernet UTP ports.
„ Modules: The MIL-SM2401M-STK provides a broad range of expansion slot
modules. Check with your MiLAN sales representative for details.
„
Console Port: Console management can be done through the Console Port.
It requires a direct connection between the switch and an end station (PC) via
a RS-232 cable.
