20
Console - Login
After you have entered the parameter settings, click OK. When the blank screen
appears, press the Enter Key to access the login screen. Type the user name and
password to login. The default user name is root; the default password is root.

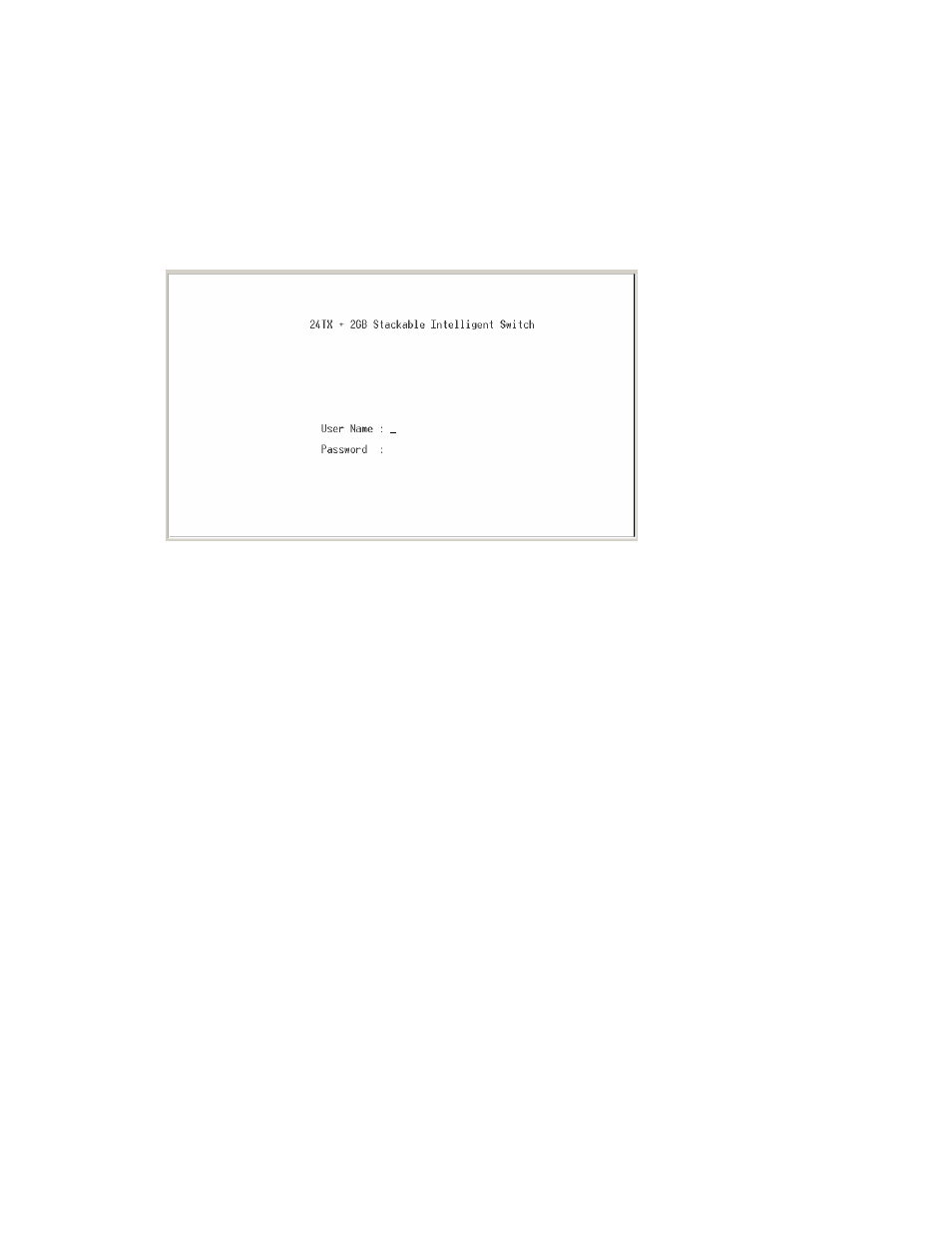

Figure 4-3. Console login screen
1. The switch also provides a serial interface to manage and monitor the switch.
The user can follow the Console Port Information provided by the web to use
the Windows HyperTerminal program to link the switch.
2. Type the user name and password to login. The default user name is root; the
default password is root.
3. The timeout on the console port is 60 seconds. If no action is taken on the
console screen for one minute, the program reverts back to the logon screen
and a new login is necessary in order to continue.
