LED Indicators
The LED Indicators give real-time information of systematic operation status. The
following table provides descriptions of LED statuses and their meaning.

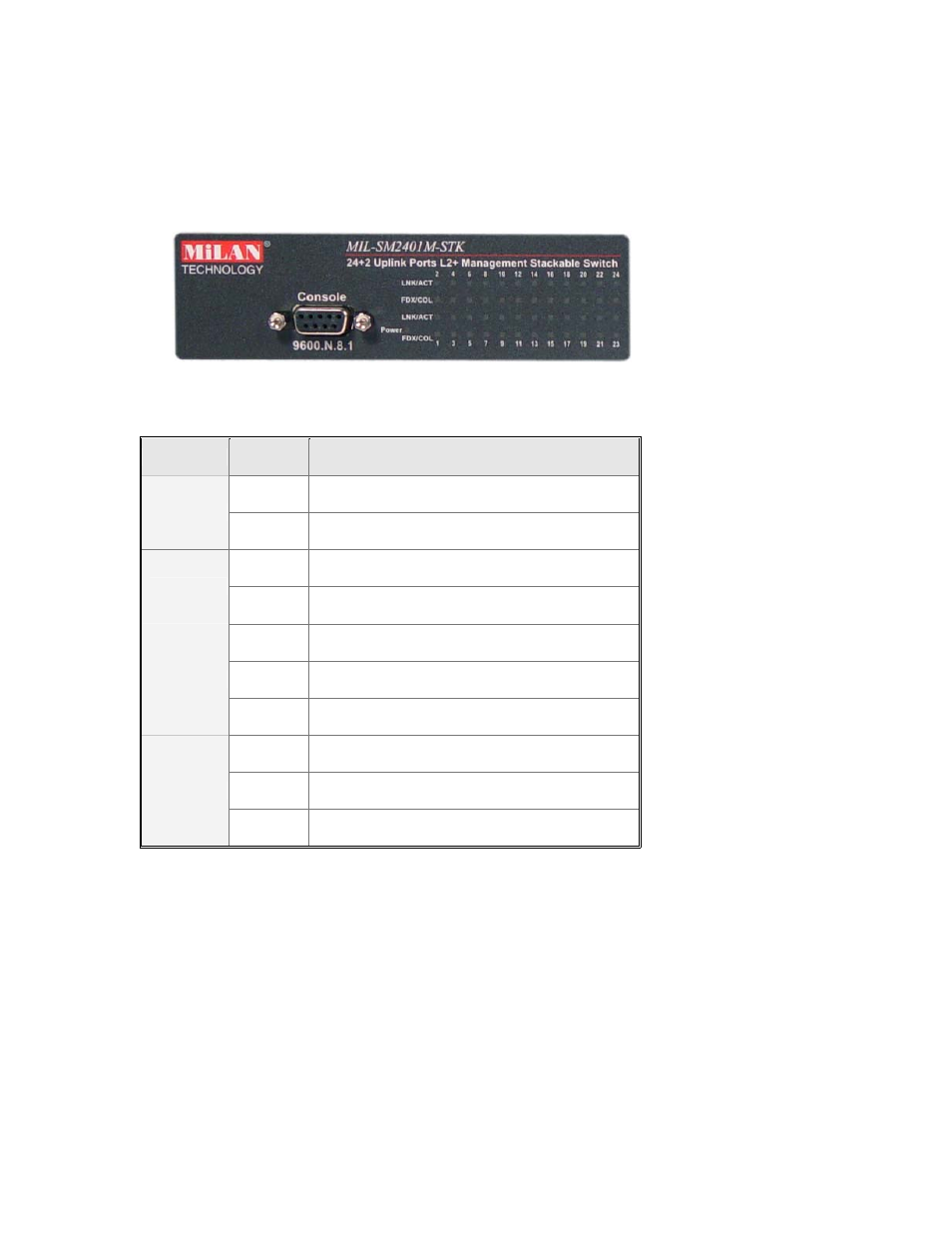

Figure 2-2. LED Indicators
LED
Status
Description
Green Power
On
Power
Off
Power is not connected
Green
The port is in 100Mbps speed.
100M
Off
The port is in 10Mbps speed.
Green
The port is connecting with the device.
Blinks
The port is receiving or transmitting data.
LNK/ACT
Off No
device
attached.
Orange
The port is operating in Full-duplex mode.
Blinks
Collision of Packets is occurring on the port.
FDX/COL
Off
The port is operating in half-duplex mode
Table 2-1. The Description of LED Indicators
