RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP 800 Series Card Printer/Encoders Service Manual (Rev. 5.0) 452
Setting the Transfer TOF
This procedure positions the HDP Film correctly on the leading edge of the card. Refer to the
Preparing to adjust the Print Offset, Transfer TOF and Transfer EOF procedure in Section 8,
page 449, for proper sequence.
Step Procedure
1 Choose MENU, Print Test Image and Gray/Align YMC to print a test card.
2 Examine the test card.
• The Inner Alignment arrows should appear at the edge of the leading edge.
• The Outer Alignment arrows should not appear on the card, but are shown
here for clarity.
If the test card does not look like the display (below), go to step 5 to adjust the
Transfer TOF.

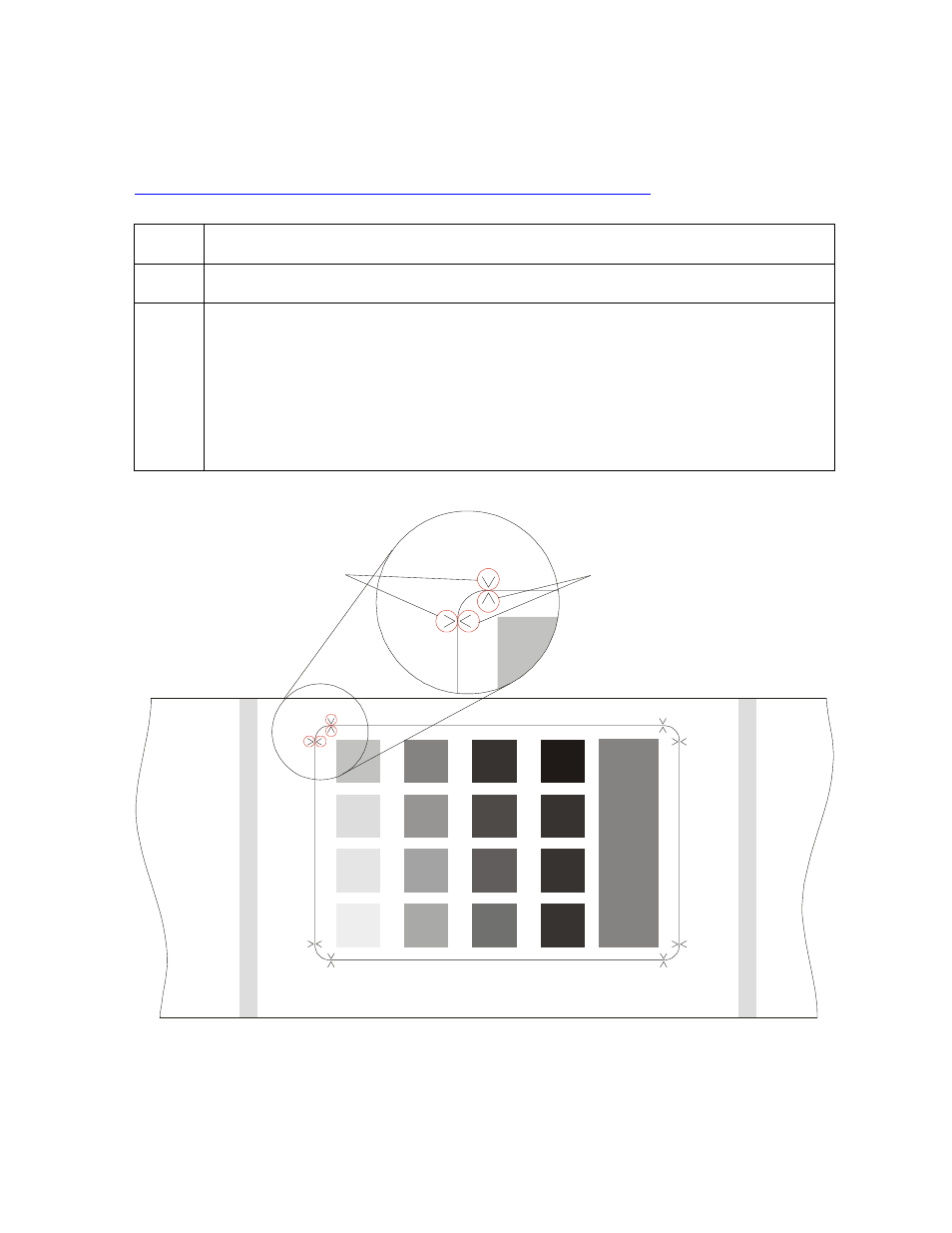

HDP Transfer Film
Outer Alignment
Arrows
Inner Alignment
Arrows
TOF
Leading Edge
of Card
EOF
Trailing Edge
of Card
Continued on the next page
