Adjusting the Image Position controls
Use the Image Position controls to position the image on a card (to be adjusted).
Step Procedure
1 Adjust the Image Position values by clicking on the Vertical and Horizontal
adjustment arrows.
• These values ensure that the Cards always remain in the same position as
they travel through the Printer (regardless of image orientation).

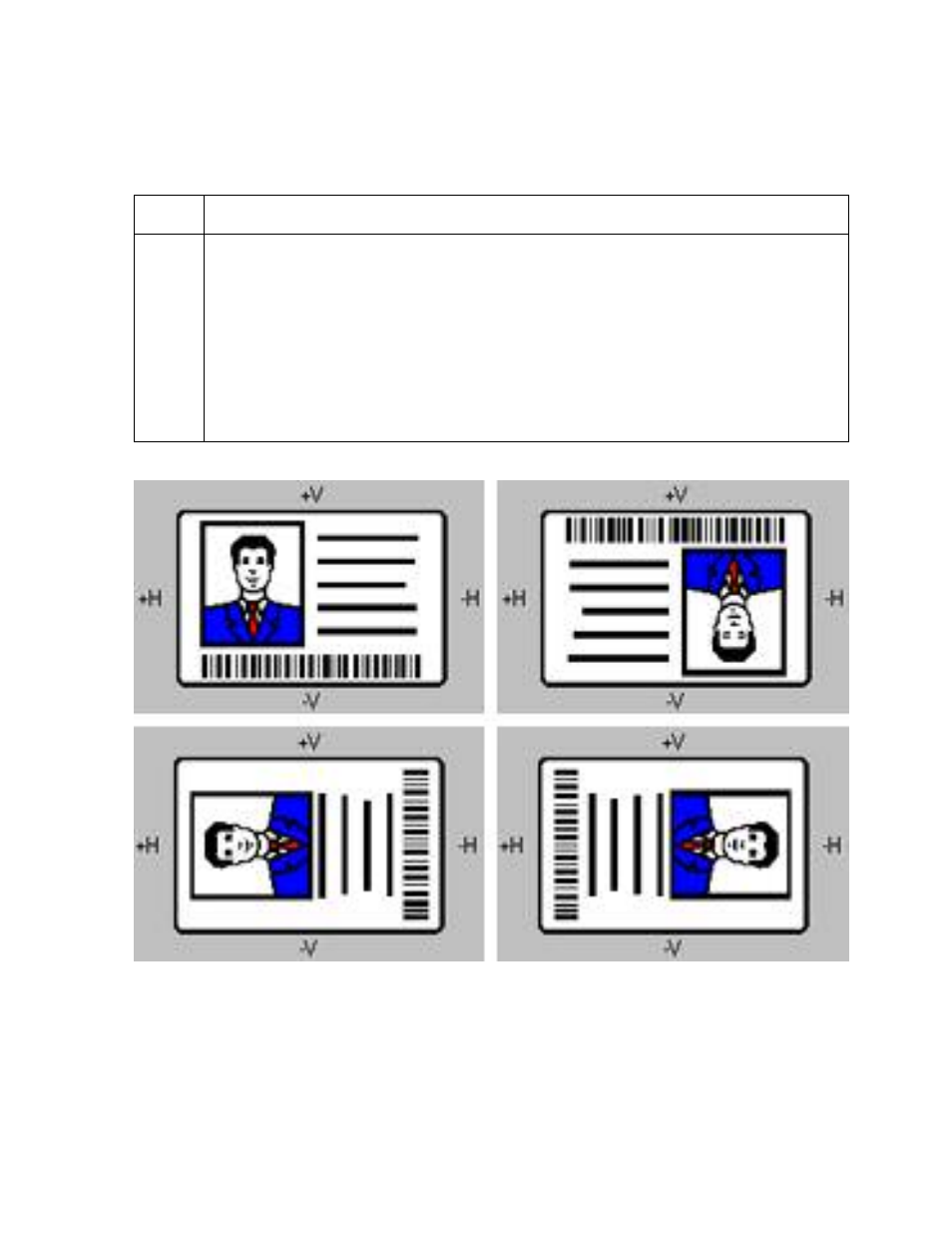

• The Card Illustration (shown in the Image Position box) will flip and rotate
according to the selection of Portrait, Landscape or Rotate 180 Degrees.
• The outline around the illustration will always remain in the same Landscape
orientation.
Continued on the next page
