Attaching the Card Lamination Module (continued)

Step Procedure

In all, eight (8) screws, the Card Output Hopper's main enclosure and the Card
Output Bin should now be removed from the Printer. (Note: Set these items
aside.)

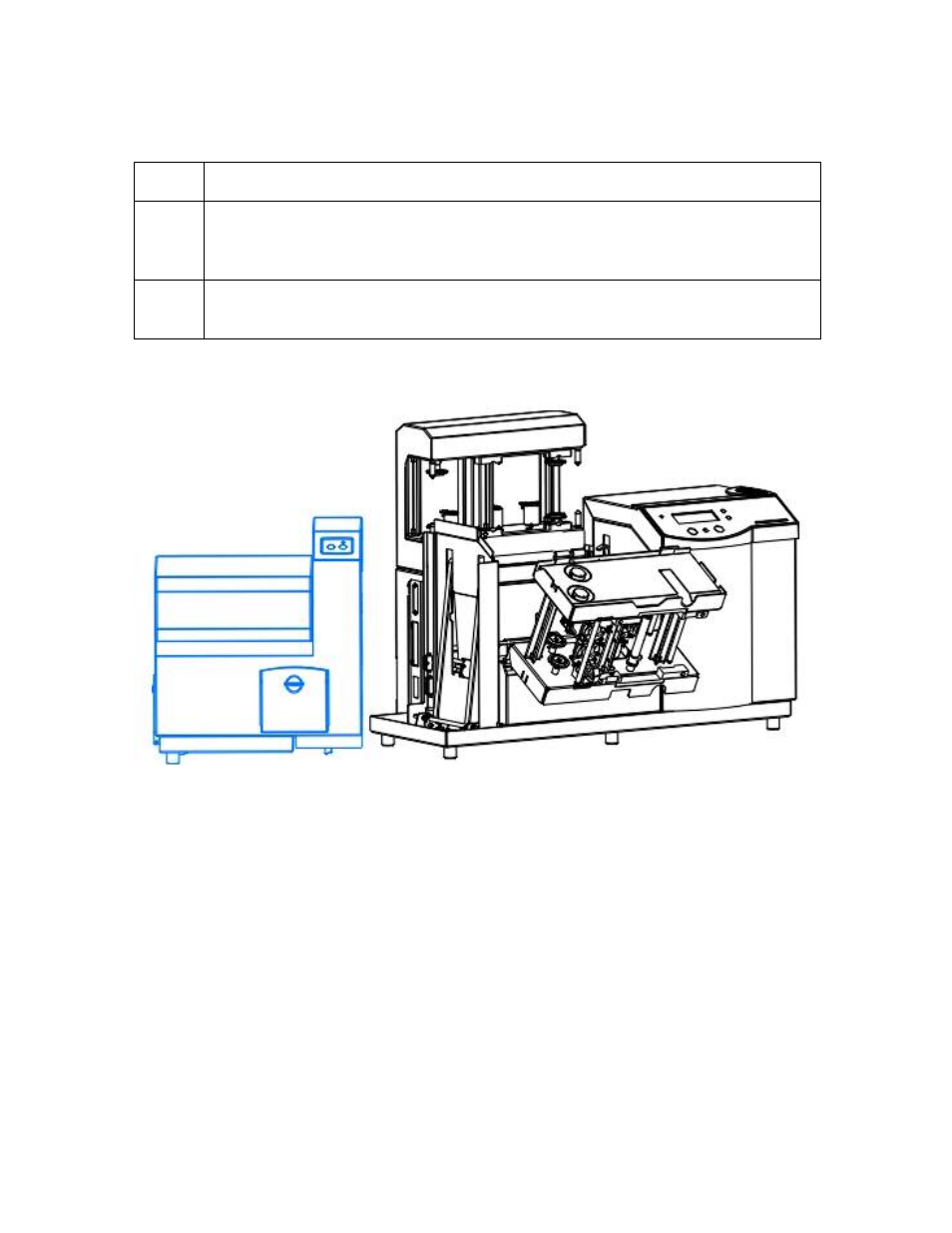

Set the Card Lamination Module just to the left of the Printer and at a slight
angle as shown.
