Monitoring and Testing
5-22
3162-A2-GB20-40
August 2000

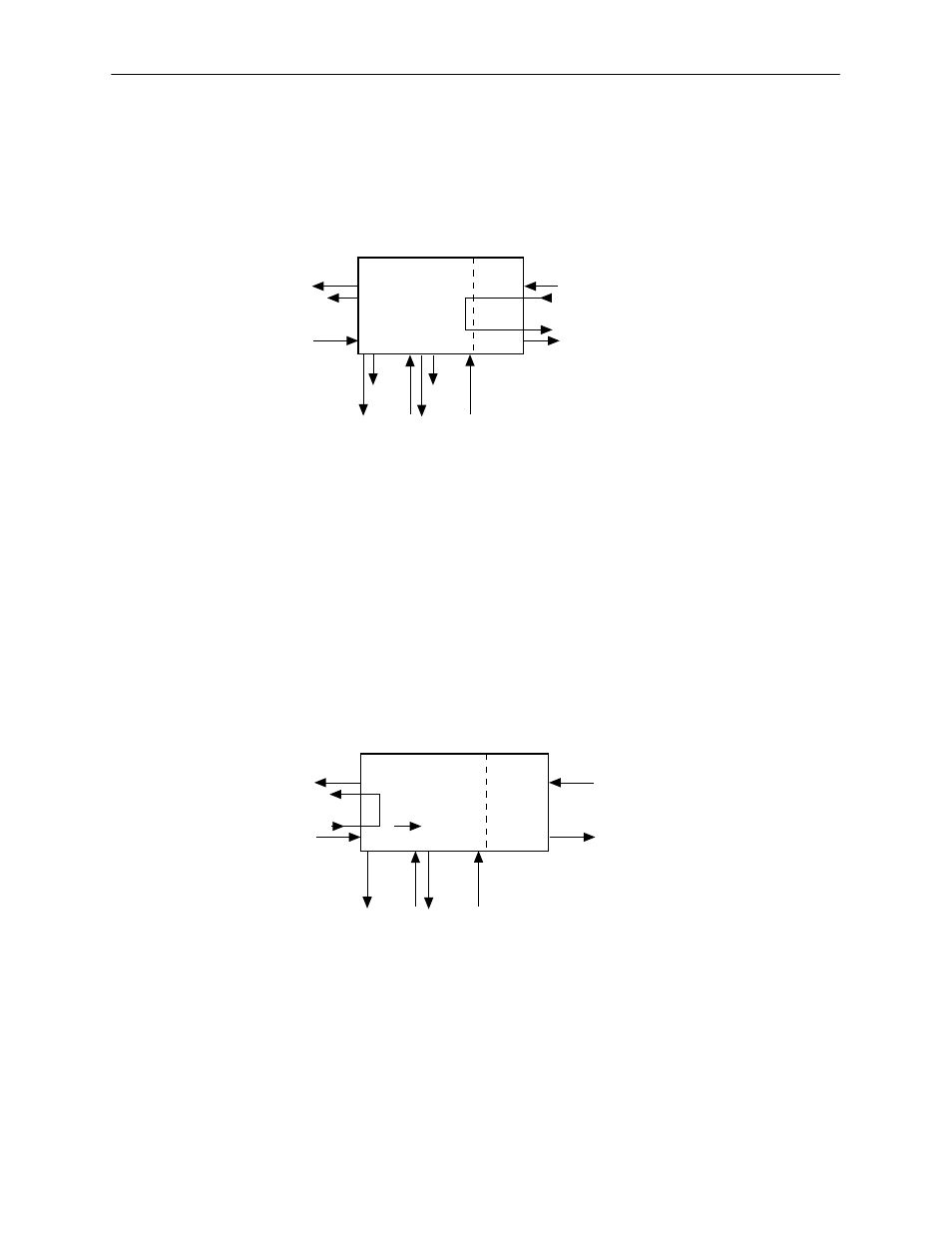

Starting a Payload Loopback
The Payload Loopback command (PLB) loops the received signal on the network
interface back to the network. The signal is looped back as close to the DTE
Drop/Insert (DSX-1) port as possible (after it has passed through the framing
circuitry of the DSU/CSU). Framing CRCs and BPVs are corrected.
496-14316-02
CSU
DSU
NETWORK
INTERFACE
DTE
(DSX-1)
ALL 1s
PLB
PORT 1
PORT 2
ALL 1s
ALL
1s
"
Procedure
To perform a Payload loopback:
1. From the Main Menu screen, select Test.
2. From the Test screen, select Network & DTE Tests.
3. For the Payload Loopback command (under Local Loopbacks), select Start.
Starting a DTE Loopback
The DTE Loopback command (DLB) loops the received signal on the DTE
Drop/Insert (DSX-1) port back to the DTE without change.
496-14317-02
CSU
DSU
NETWORK
INTERFACE
DTE
(DSX-1)
DLB
PORT 1
PORT 2
ALL 1s
"
Procedure
To perform a DTE loopback:
1. From the Main Menu screen, select Test.
2. From the Test screen, select DTE Tests.
3. For the DTE Loopback command (under Local Loopbacks), select Start.
