Pin Assignments
D-13 3162-A2-GB20-40 August 2000
EIA-530-A-to-X.21 Adapter
The EIA-530-A-to-X.21 adapter (Figure D-9) provides the X.21 interface shown in
Table D-7 .
2
14
3
16
17
9
4
19
8
10
7
24
11
2
9
4
11
6
13
3
10
5
12
8
7
14
TD-A
TD-B
RD-A
RD-B
RXC-A
RXC-B
RTS-A
RTS-B
RLSD-A
RLSD-B
SIG. COMMON
TT-A
TT-B
TD-A
TD-B
RD-A
RD-B
RXC-A
RXC-B
RTS-A
RTS-B
RLSD-A
RLSD-B
SIG. COMMON
TT-A
TT-B
530
SIGNAL
DB25
PLUG DB15
SOCKET
X.21
SIGNAL
495-14787

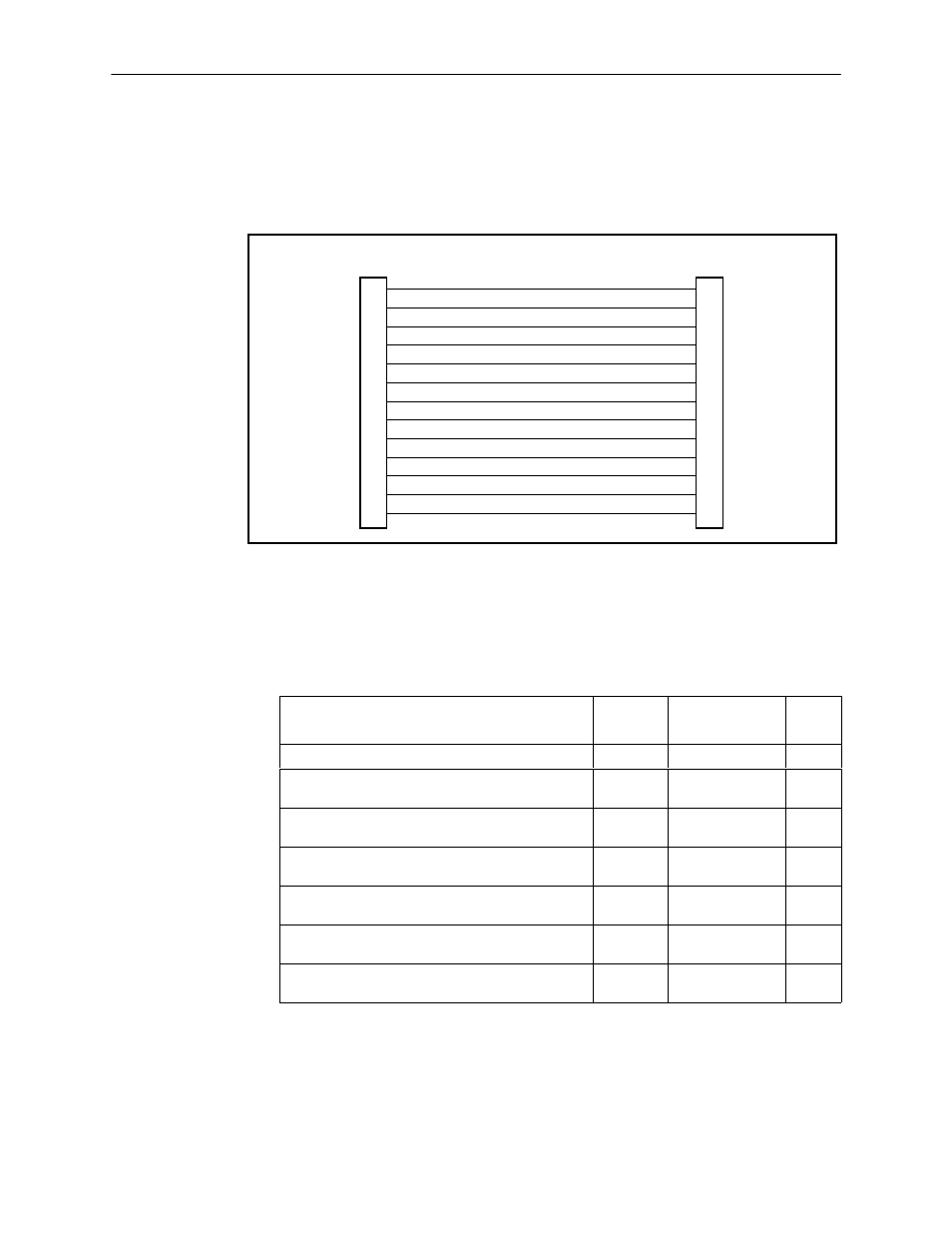

Figure D-9. EIA-530-A-to-X.21 Adapter
Table D-7. X.21 Cable Interface
Signal
CCITT
Number
Direction Pin
Signal Common 102 — 8
Transmitted Data 103 To DSU/CSU 2 (A)
9 (B)
Received Data 104 From DSU/CSU 4 (A)
11 (B)
Request-to-Send 105 To DSU/CSU 3 (A)
10 (B)
Data Channel Received Line Signal Detector 109 From DSU/CSU 5 (A)
12 (B)
Transmit Signal Element Timing (DTE Source) 113 To DSU/CSU 7 (A)
14 (B)
Receiver Signal Element Timing (DCE Source) 115 From DSU/CSU 6 (A)
13 (B)
