Local carrier with remote standalone – HP 3162 User Manual
Page 181
IP Network Addressing Scenario
F-3
3162-A2-GB20-40
August 2000
Local Carrier with Remote Standalone
The second scenario (Figure F-2) is a carrier communicating with standalone
remotes. All devices are still on the same subnet, and the subnet mask is
255.255.255.00. A static route still must be set in the NMS host to subnet
135.18.2.0.
ETHERNET
135.18.2.17
496-14646-02
LAN
ADAPTER
FT1
CO
MSP
HE
RE 3610
COM
SPH
ERE
3610
CO
MS
PHE
RE 3610
135.18.2.18
135.18.2.26
135.18.2.1
135.18.2.16
135.18.40.1
COM IP ADDRESS: 135.18.40.3
SUBNET 135.18.40.0
SUBNET 135.18.2.0
T1
CO
M
SP
HE
RE
30
00
NETWORK

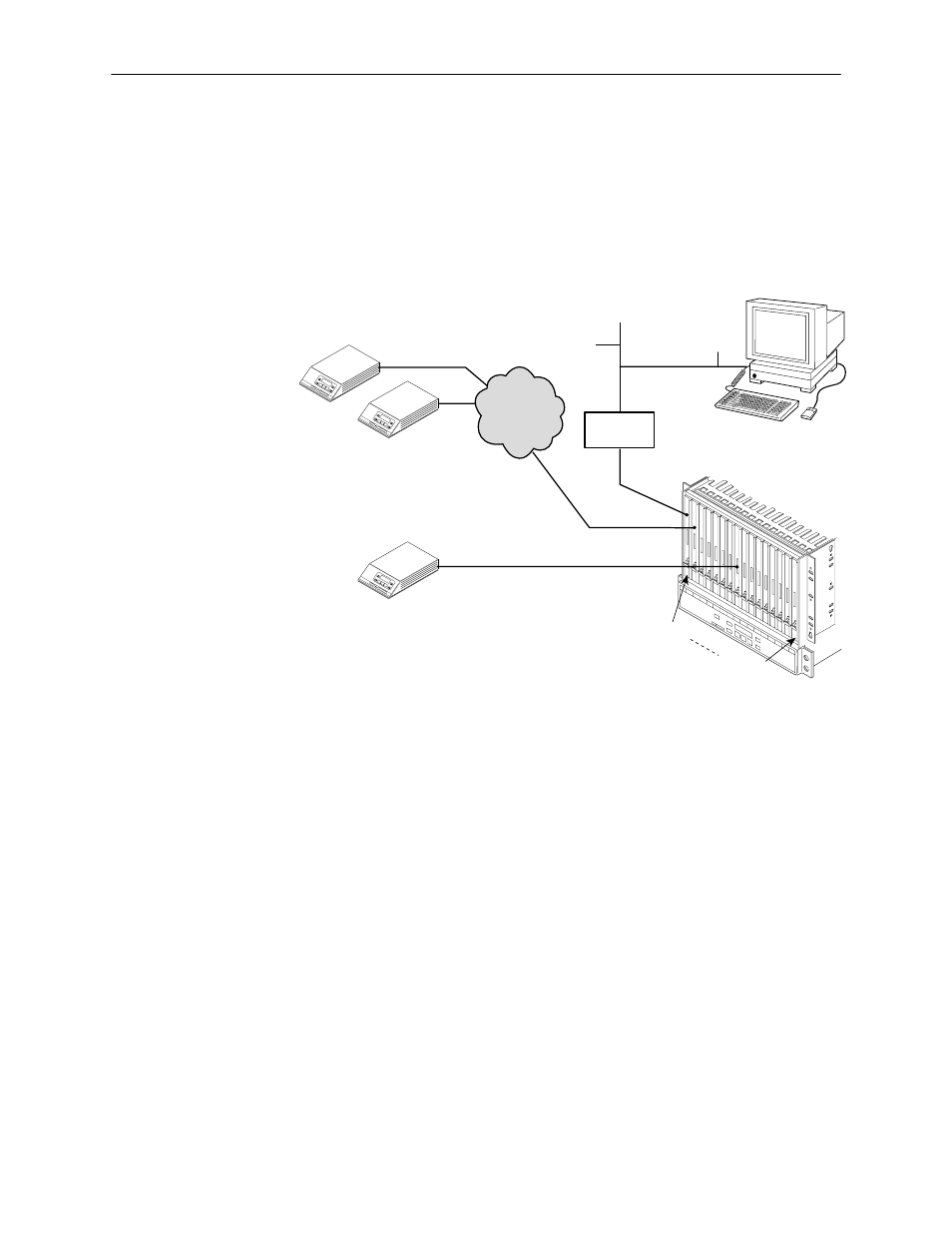

Figure F-2.
Local Carrier with Remote Standalone
