HP PAVILLION ZD7000 User Manual
Page 98
5–26
Maintenance and Service Guide
Removal and Replacement Procedures

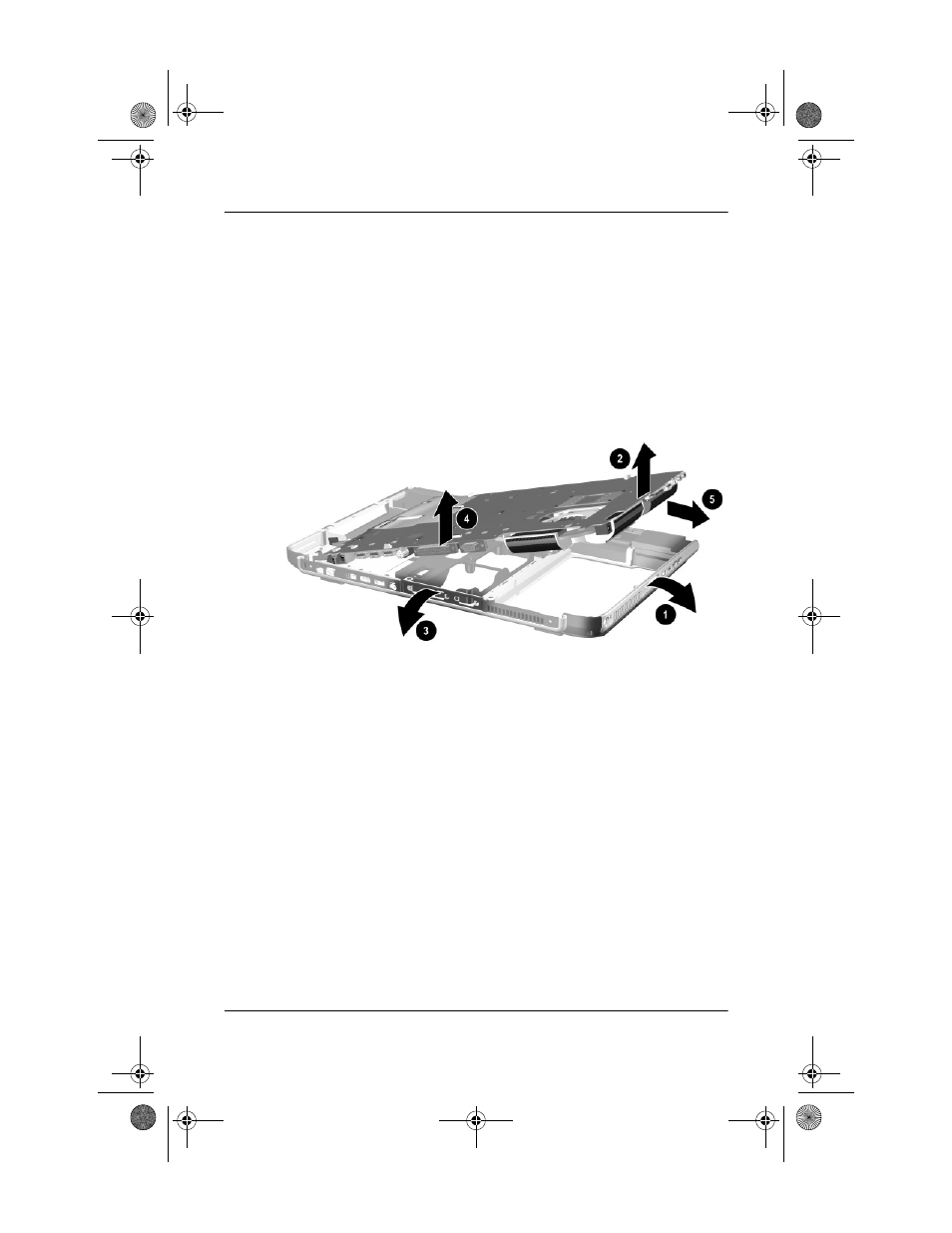

7. Flex the right side of the base enclosure to the right 1.
8. Lift the right side of the system board 2 until the connectors
on the right side of the board clear the base enclosure.
9. Flex the rear edge of the system board toward you 3.
10. Lift the rear edge of the system board 4 until the connectors
on the rear panel of the board clear the base enclosure.
11. Slide the system board to the right at an angle 5 and
remove it.
Removing the System Board
Reverse the above procedure to install the system board.
333621-001.book Page 26 Wednesday, September 17, 2003 12:24 PM
