HP PAVILLION ZD7000 User Manual
Page 91
Removal and Replacement Procedures
Maintenance and Service Guide
5–19
7. Position the notebook so the rear panel faces you and the
display is in an upright position.

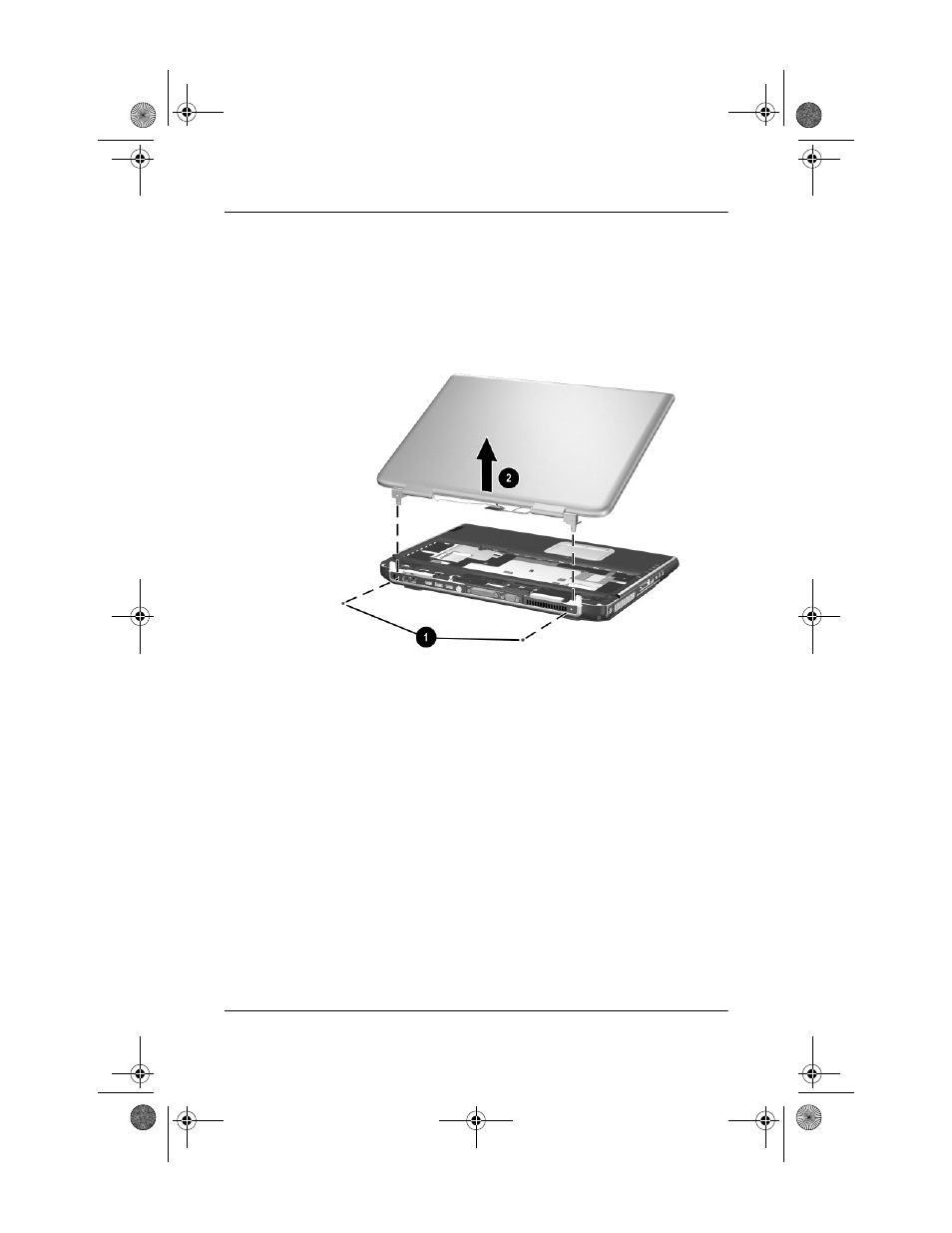

8. Remove the two PM2.5×8.0 screws 1 that secure the display
assembly to the notebook through the rear panel.
9. Lift the display assembly straight up 2 to remove it.
Removing the Display Assembly
Reverse the above procedure to install the display assembly.
333621-001.book Page 19 Wednesday, September 17, 2003 12:24 PM
