Troubleshooting

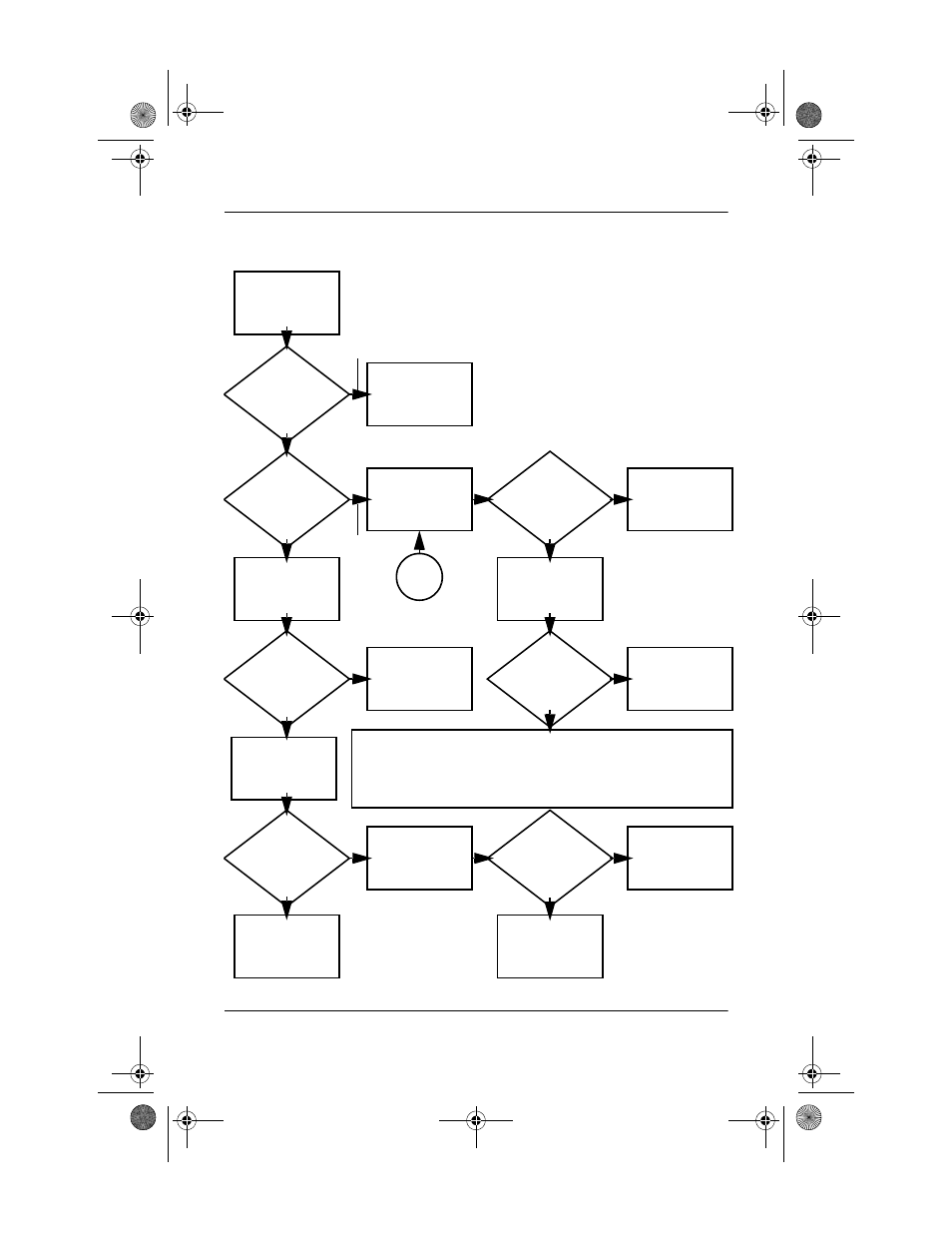

Flowchart 2.6—No Video, Part 1
A
N
Stand-alone
or expansion
base?
No video.
Replace the following one at a time. Test after each replacement.
1. Cable between notebook and notebook display (if applicable)
2. Inverter board (if applicable)
3. Display
4. System board
Internal or
external
display*?
Adjust
brightness.
Video OK? Done
Expansion
Base
Internal
Stand-alone
External
Adjust
brightness.
Video OK? Done
Y
Press lid
switch to ensure
operation.
Video OK? Done
Y
N
Video OK?
Done Done
N
Check for bent
pins on cable.
Try
another
display.
Internal and
external
video OK?
Replace
system
board.
Y Y
N
N
*NOTE: To change from internal to
external display, use the hotkey
combination.
Y
Go to
Flowchart 2.7,
No Video, Part 2.
