Removal and Replacement Procedures
Maintenance and Service Guide
5–15

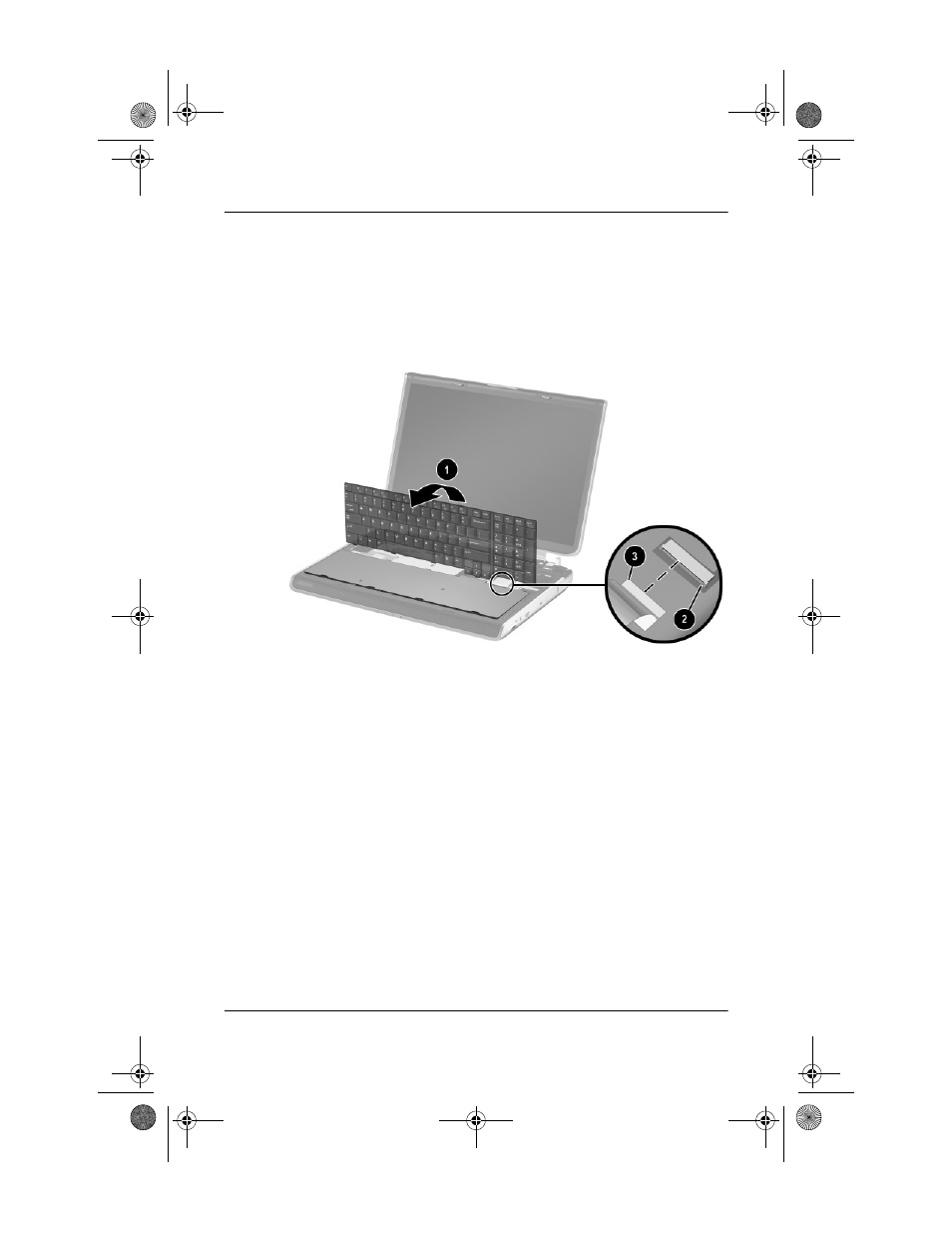

12. Lift up on the back of the keyboard and swing it forward 1
until it rests on the palm rest.
13. Release the zero insertion force (ZIF) connector 2 to which
the keyboard cable is connected and disconnect the cable 3.
14. Remove the keyboard.
Removing the Keyboard
Reverse the above procedure to install the keyboard.
