HP PAVILLION ZD7000 User Manual
Page 96
5–24
Maintenance and Service Guide
Removal and Replacement Procedures
2. Release the ZIF connector 1 to which the SD Card
slot/infrared module cable is attached and disconnect the
cable 2.
3. Disconnect the right 3 and left 4 speaker cables from the
system board.

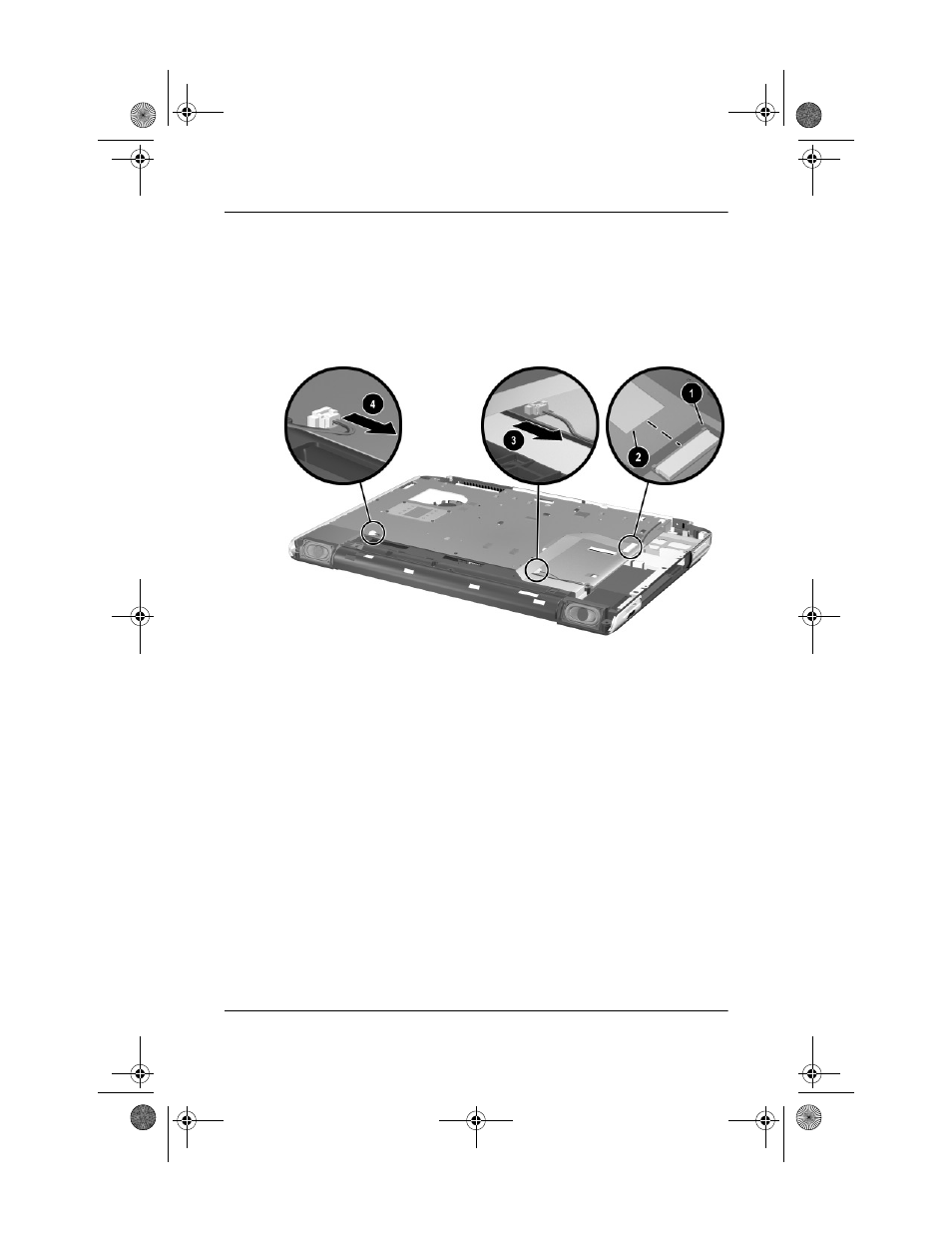

Disconnecting the SD Card Slot/Infrared Module and Speaker
Cables from the System Board
