Maintenance and Service Guide
Removal and Replacement Procedures
7. Disconnect the LED board cable 1 from the system board
and remove the cable from the clip in the top cover.
✎
The LED board cable is included in the Miscellaneous Cable Kit,
spare part number 344851-001. The LED board is included with
the top cover.
8. Disconnect the display lid switch module cable 2 from the
display lid switch module.
9. Lift the front edge of the top cover 3 until the TouchPad
cable 4 is accessible.
10. Disconnect the TouchPad cable from the low insertion force
(LIF) connector on the system board.
11. Remove the top cover 5.

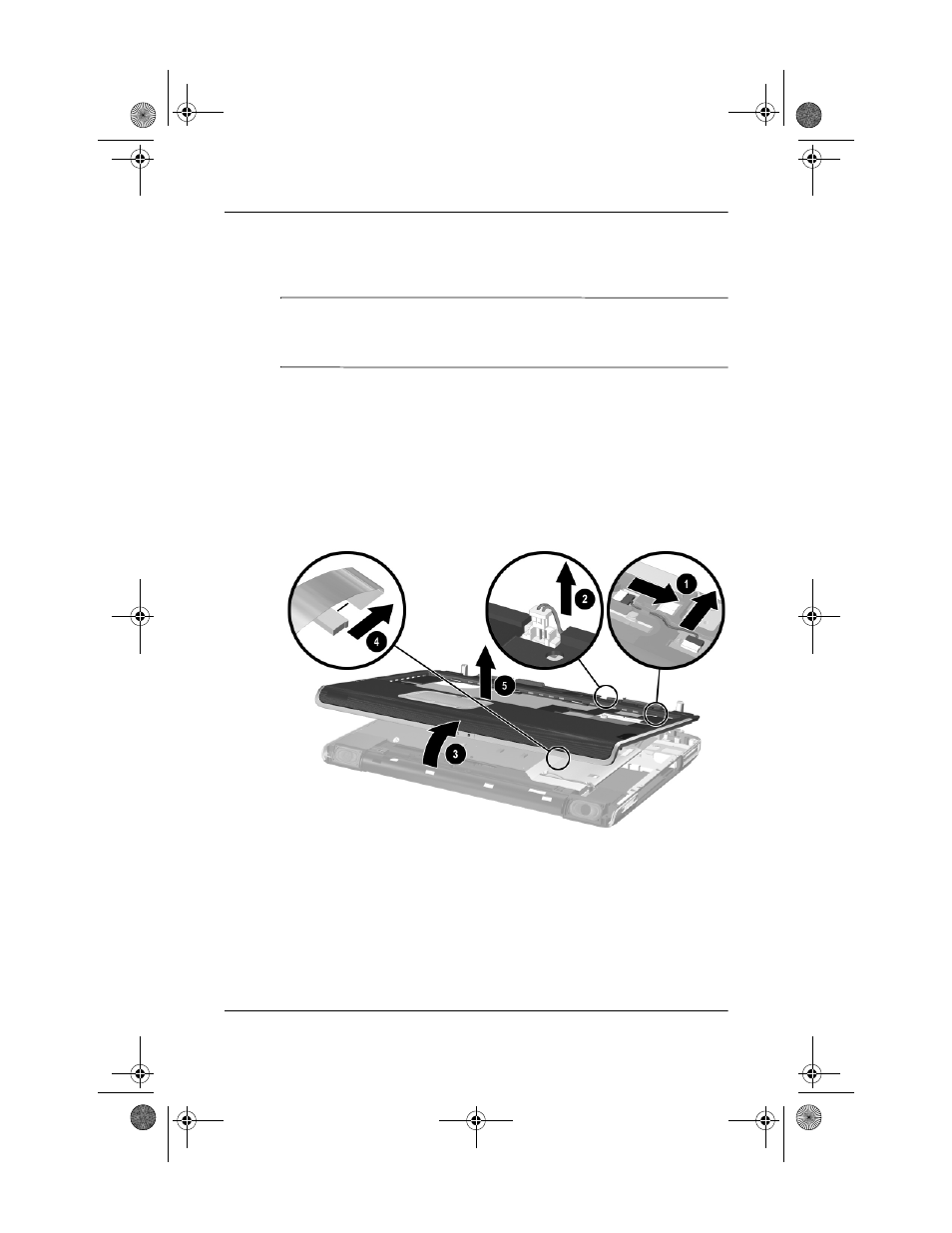

Removing the Top Cover
Reverse the above procedure to install the top cover.
