Removal and Replacement Procedures

Maintenance and Service Guide

5–29

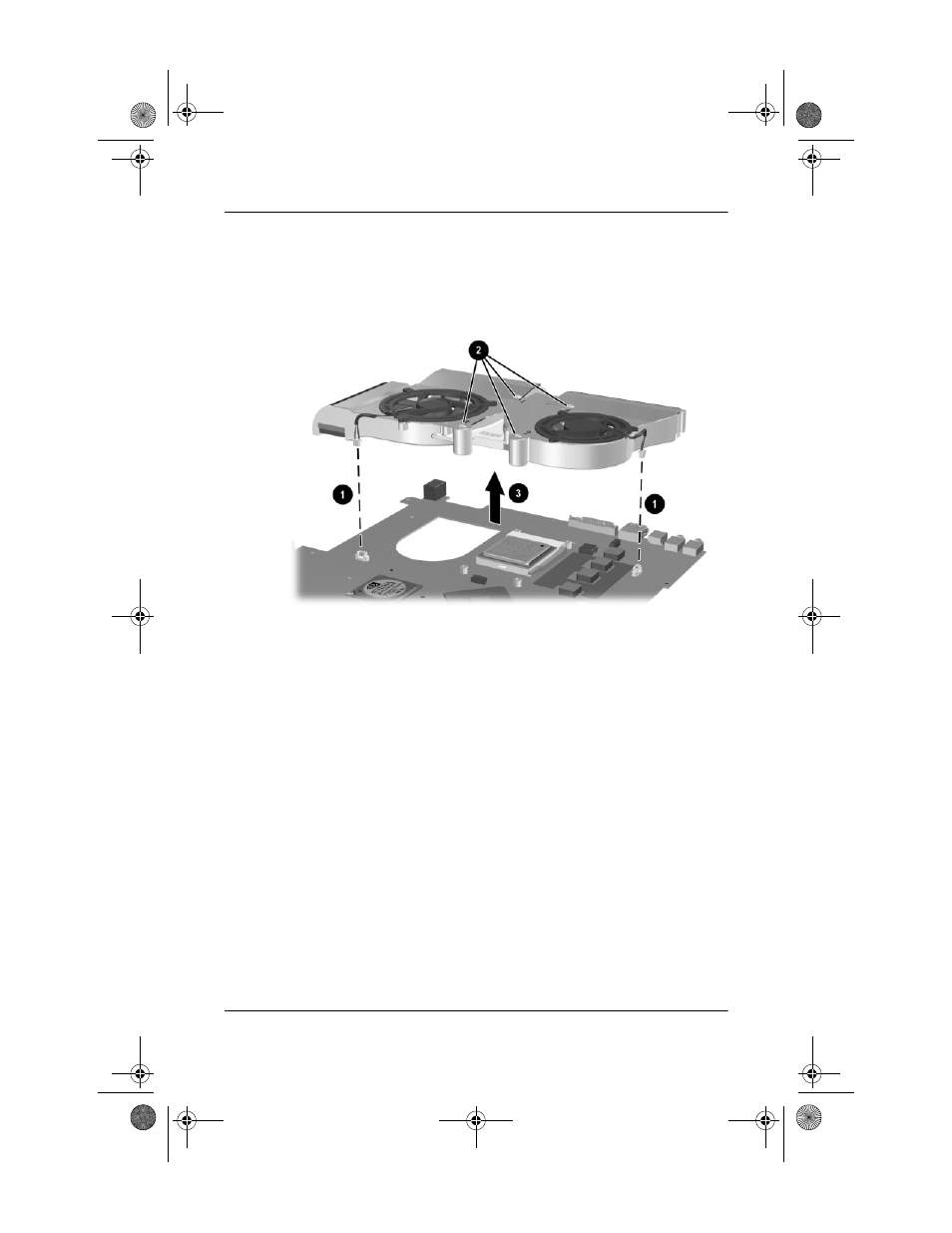

3. Disconnect the fan cables 1 from the system board.

4. Loosen the four heat sink screws 2.

5. Remove the heat sink 3.

Removing the Heat Sink
