HP PAVILLION ZD7000 User Manual
Page 78
5–6
Maintenance and Service Guide
Removal and Replacement Procedures

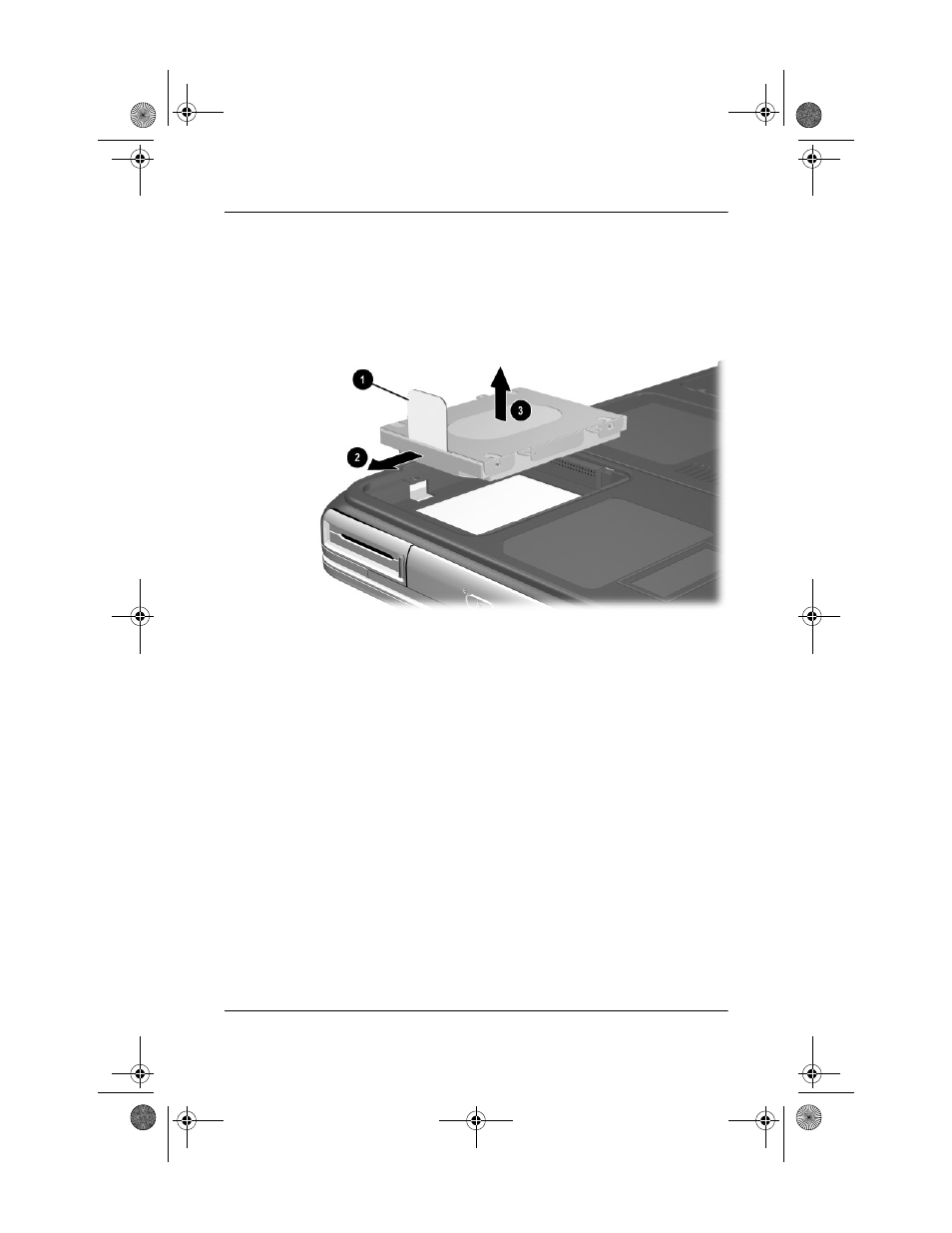

d. Use the Mylar tab 1 to slide the hard drive to the right 2
to disconnect it from the system board.
e.
Lift the hard drive straight up 3.
f.
Remove the hard drive.
Removing the Hard Drive
Reverse the above procedure to install the hard drive.
333621-001.book Page 6 Wednesday, September 17, 2003 12:24 PM
