5.11 Top Cover
1. Prepare the notebook for disassembly (Section 5.3) and
remove the following components:
❏ Optical drive (Section 5.7)
❏ Keyboard (Section 5.8)
❏ Keyboard cover (Section 5.9)
❏ Display assembly (Section 5.10)
2. Turn the notebook upside down with the front facing you.
3. Remove the following:
1 Two PM2.5×8.0 screws on the notebook front edge
2 Three PM2.5×5.0 screws in the battery bay
3 One PM2.5×8.0 screw in the rear/right corner of the
battery bay
4 Two PM2.5×5.0 screws in the optical drive bay

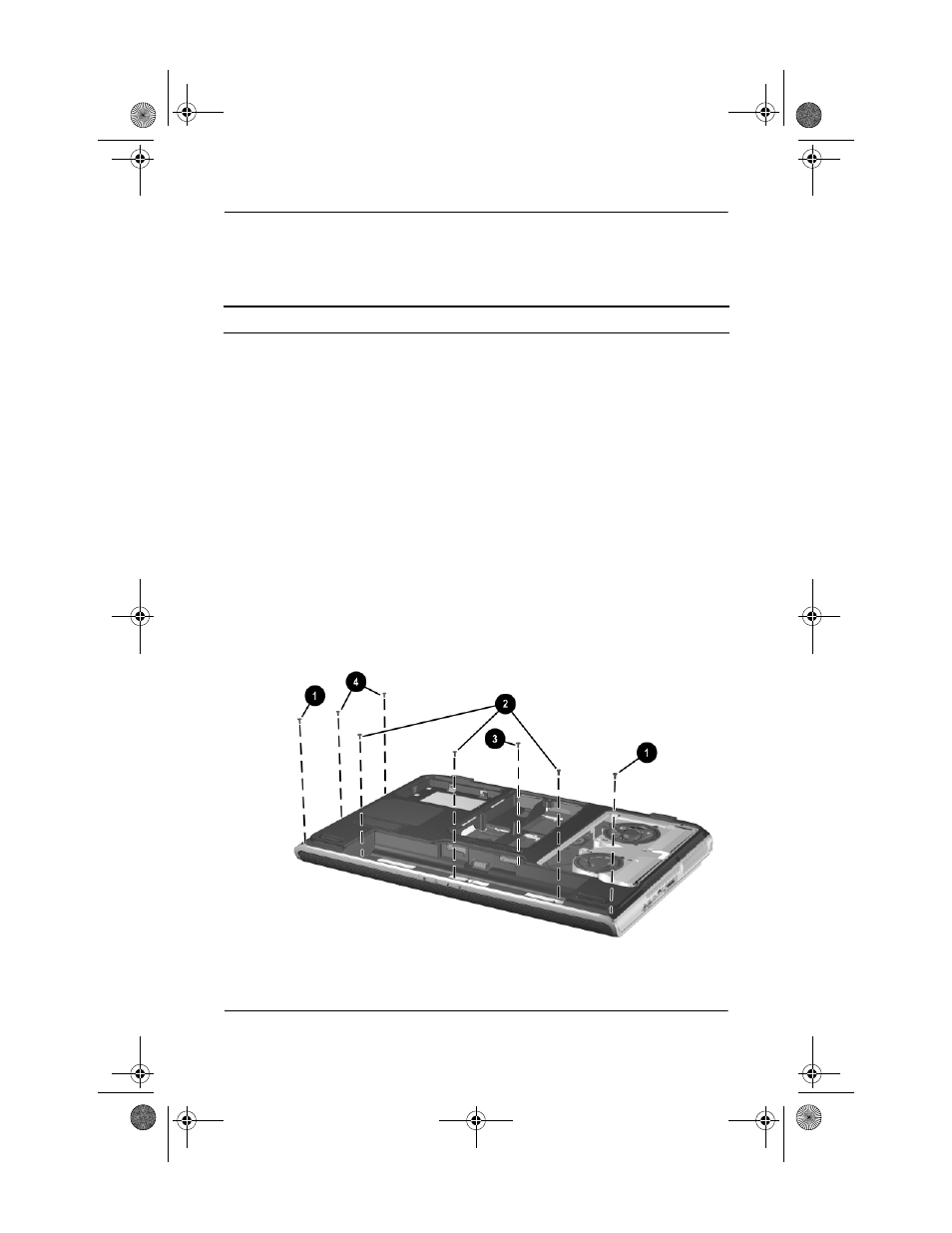

Removing the Top Cover Screws
Spare Part Number Information
Top cover 344876-001
