Parts List
4/07
UDC2500 Universal Digital Controller Product Manual
177
8 Parts
List
8.1 Exploded View
Introduction
Figure 8-1 is an exploded view of the UDC2500 Controller. Each part is labeled with a
key number. The part numbers are listed by key number in Table 8-1. Parts not shown
are listed in Table 8-2.
4
1
2
3
5
6
7
8

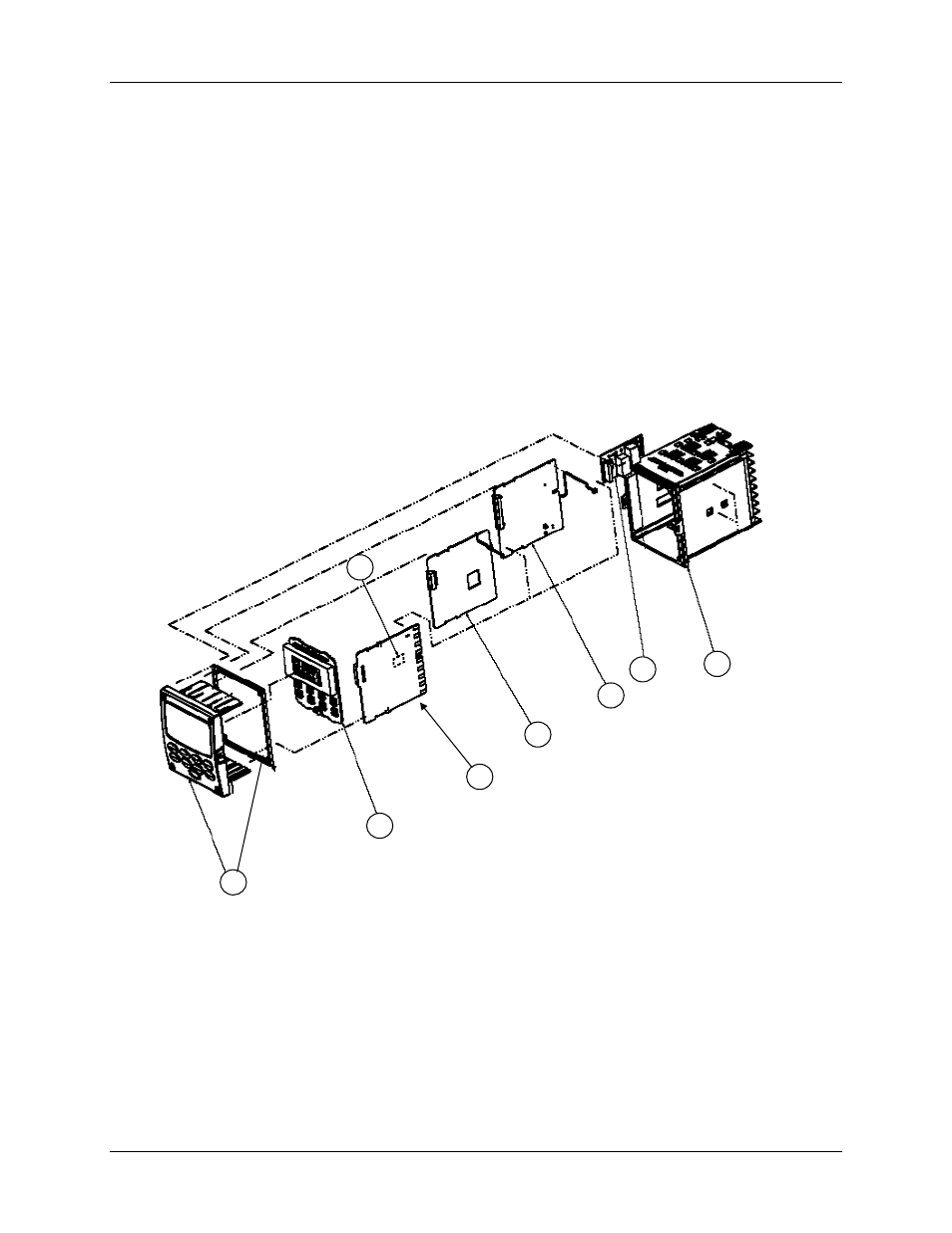

Figure 8-1 UDC2500 Exploded View
