Monitoring and Operating the Controller
4/07 UDC2500 Universal Digital Controller Product Manual 121
500
400
200
300
°
F
Time/Hours 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
SEG 2
SEG 3
SEG 4
SEG 5
SEG 6
SEG 7
SEG 8
SEG 9
SG 10
SG 11
SG 12
SEG 1
F
20765
Setpoint

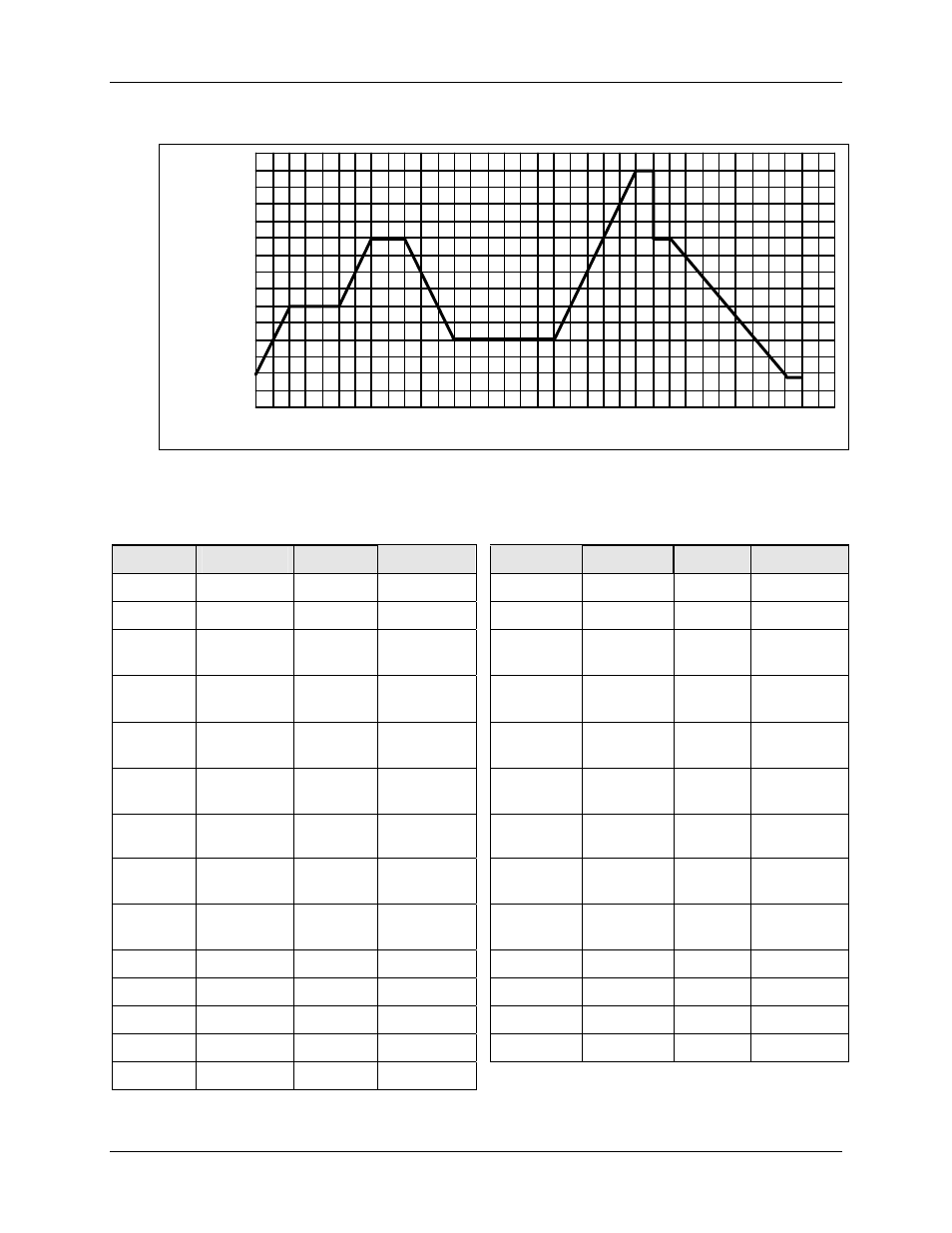

Figure 4-3 Ramp/Soak Profile Example
Ramp/Soak Profile Example
Prompt Function Segment Value Prompt Function Segment Value
STRSEG Start Seg. 1 SG4 TI Soak Time 4 1 hr.
ENDSEG End Seg. 12 SG5 RP Ramp Time 5 1 hr.:30 min.
RP UNIT Engr. Unit for
Ramp TIME SG6 SP Soak SP 6 250
PG END Controller
Status LAST SP SG6 TI Soak Time 6 3 hr.:0 min.
STATE Controller
State at end HOLD SG7 RP Ramp Time 7 2 hr.:30 min.
TO BEGIN Reset SP
Program
DIS SG8 SP Soak SP 8 500
PVSTRT Program starts
at PV value
DIS SG8 TI Soak Time 8 0 hr.:30 min.
RECYCL Number of
Recycles 2 SG9 RP Ramp Time 9 0
SOKDEV Deviation
Value
0 SG10 SP Soak SP 10 400
SG1 RP Ramp Time 1 1 hr. SG10 TI Soak Time 10 0 hr.:30 min.
SG2 SP Soak SP 2 300 SG11 RP Ramp Time 11 3 hr.:30 min.
SG2 TI Soak Time 2 1 hr.:30 min. SG12 SP Soak SP 12 200
SG3 RP Ramp Time 3 1 hr. SG12TI Soak Time 12 0 hr.:30 min.
SG4 SP Soak SP 4 400
