Chapter 2
Indicators, switches, and displays
Operator panel
TOC
The TOC (Transfer Of Control) button is a recessed switch that resets
the system.
DVD-ROM drive
The DVD-ROM drive is located on the left of the operator panel, as
shown in Figure 13 on page 22. Figure 15 shows the DVD-ROM drive
front panel in detail.

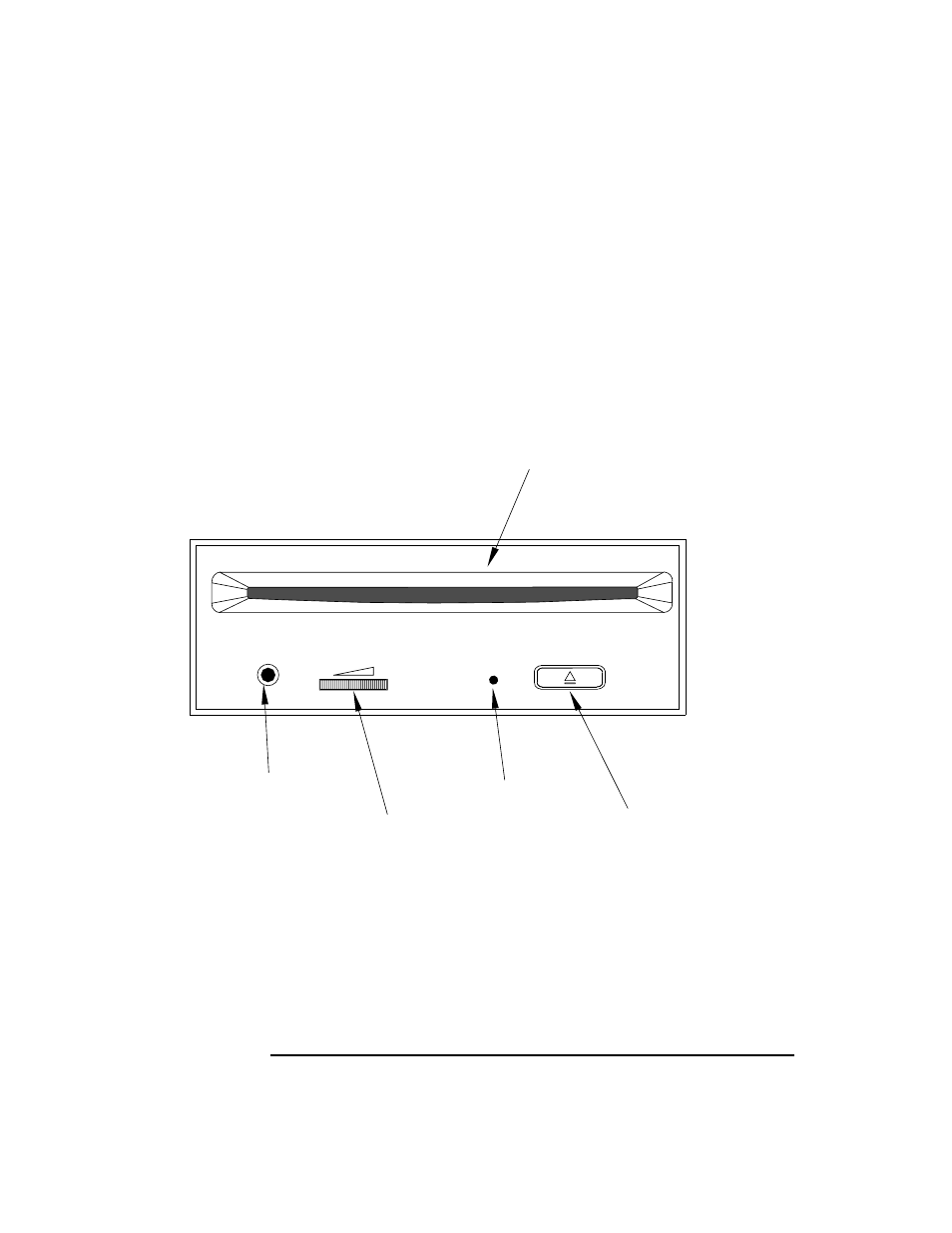

Figure 15
DVD-ROM drive
Disk loading slot
Place the disk into the slot with the label side up. Gently push the front
edge of the disk to load it into the drive. When an 8-cm disk is used, it
must be set into an adapter prior to loading.
3/17/99
V25U101
Headphone jack
Volume control
Busy indicator
Disk loading slot
Eject button
