IP Multicast (IGMP) Features—Multimedia Traffic Control
C
o
n
fig
u
rin
g
th
e
Sw
itc
h
Figure 6-67. The Advantage of Using IGMP

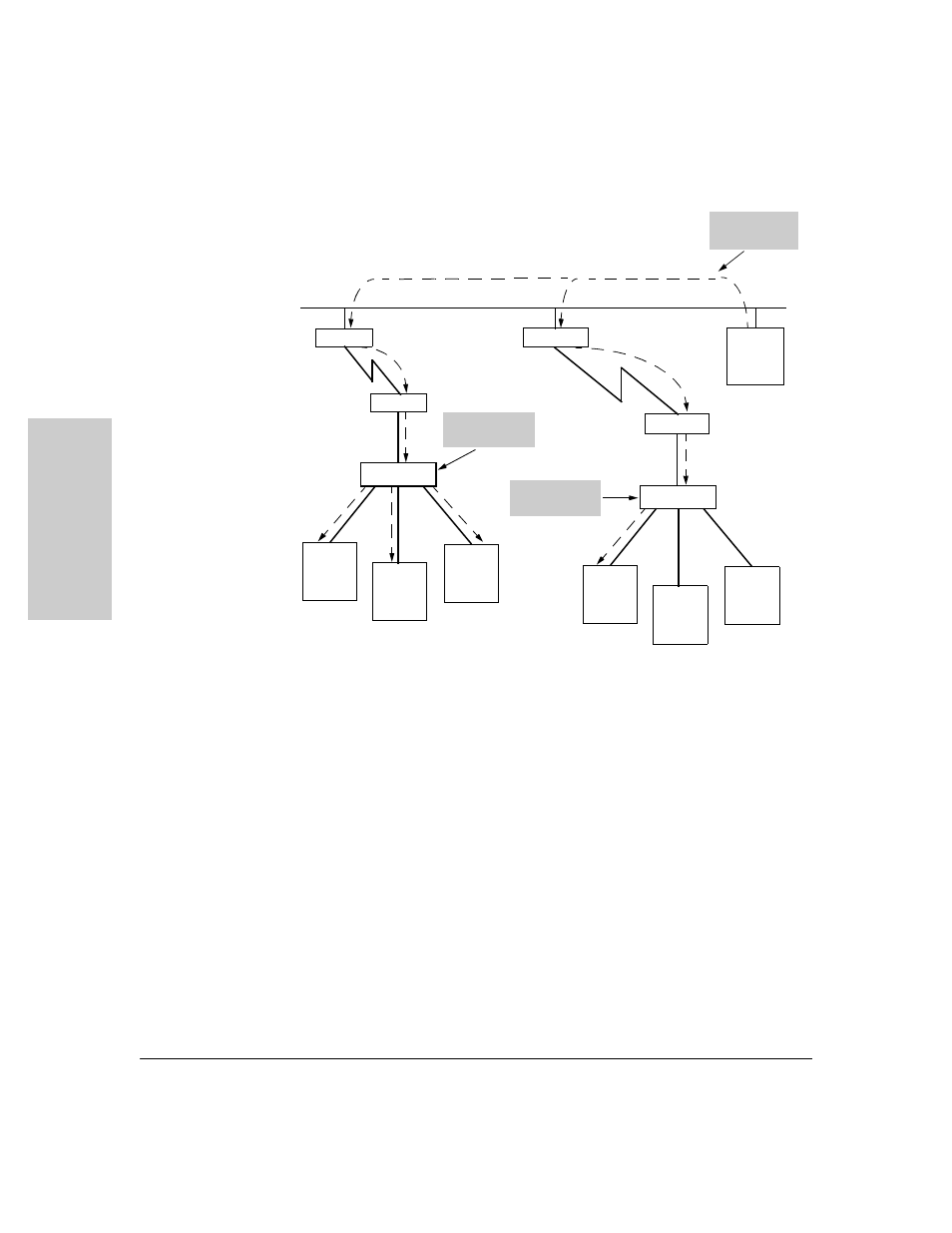

The next figure (6-68) shows a network running IP multicasting using IGMP
without a multicast router. In this case, the IGMP-configured switch runs as a
querier.
PCs 2, 5, and 6 are members of the same IP multicast group.
IGMP is configured on switches 3 and 4. Either of these switches can operate
as querier because a multicast router is not present on the network. (If an
IGMP switch does not detect a querier, it automatically assumes this role,
assuming the querier feature is enabled—the default—within IGMP.)
PC X
Video
Server
Router Router
PC 1
Video
Client
Switch 1
Router
Router
Switch 2
PC 2
PC 3 PC 4
Video
Client
PC 5
PC 6
Multicast
Data Stream
IGMP is NOT
Running Here
IGMP IS
Running Here
