6-33
Configuring the Switch
Port Settings
C
o
n
fig
u
rin
g
th
e
Sw
itc
h
Configuring Port Parameters from the Switch Console
To Access Port Settings:
1. From the Console Main Menu, Select:
3. Switch Configuration...
2. Port Settings

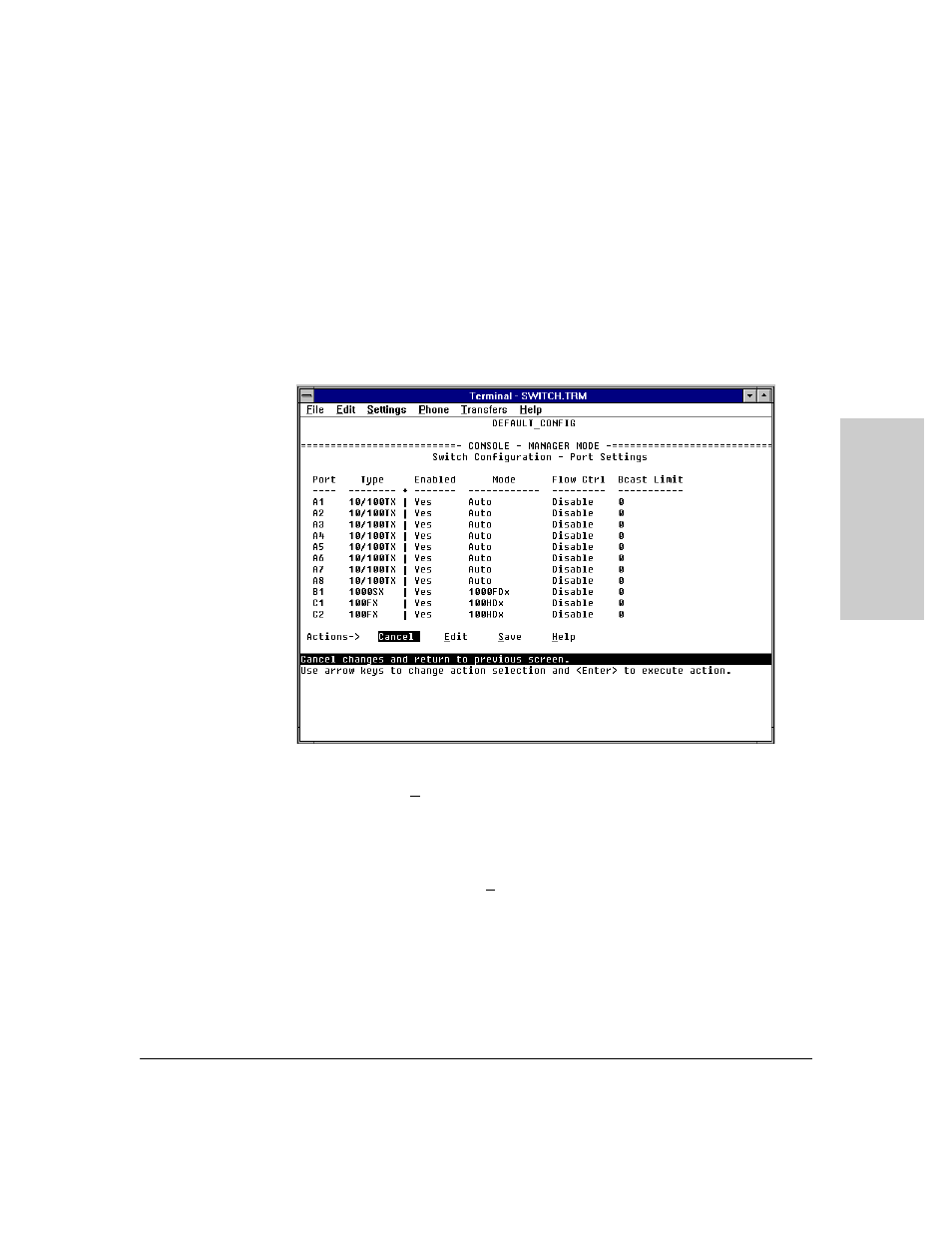

Figure 6-21. Example of the Port Settings Screen
2. Press [E] (for Edit). The cursor moves to the Enabled field for the first port.
3. Refer to the online help provided with this screen for further information
on configuration options for these features.
4. When you have finished making changes to the above parameters, press
[Enter], then press [S] (for Save) and return to the Main Menu.
