6-9 MLC 104 Plus Series • Labeling, installation, and Mounting
PRELIMINAR
Y

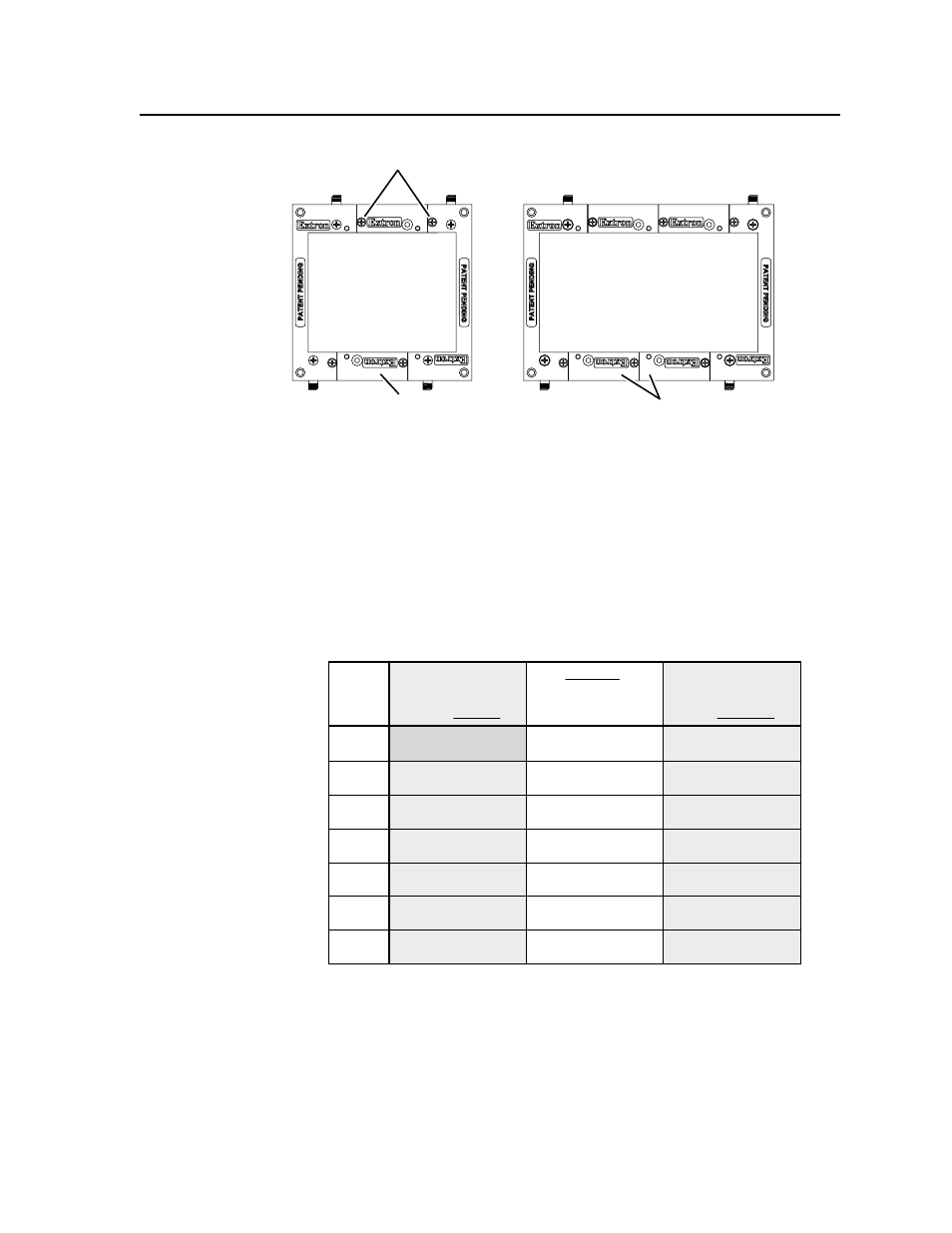

Segment Assembly Screws
Small Top/Bottom
Segment
MR 200 2-gang Mud Ring MR 200 Modified to be a 3-gang Mud Ring
2 Small Top/Bottom
Segments
N The 1‑gang mud ring cannot be made smaller.
Modify an MR Series mud ring as follows:
1. If necessary, remove the mounted device(s) from the mud ring.
2. If necessary, remove the mud ring from the installation surface.
3. As necessary, remove the segment assembly screws that hold the segments
together and add, remove, or replace a top segment and a bottom segment.
The following table shows the modifications required to enlarge and shrink
each mud ring model.
Mud
Ring
Model
Standard
number of
top/bottom
segments
0 MR 100
MR 200
MR 300
MR 400
MR 500
MR 600
MR 700
1 small (top)
1 small (bottom)
2 small (top)
2 small (bottom)
1 large (top)
1 large (bottom)
1 small, 1 large (top)
1 small, 1 large (bottom)
2 large (top)
2 large (bottom)
3 large (top)
3 large (bottom)
1 small, 3 large (top)
1 small, 3 large (bottom)
1 small, 2 large (top)
1 small, 2 large (bottom)
1 small (top)
1 small (bottom)
1 large, 2 small (top)
1 large, 2 small (bottom)
2 small, 2 large (top)
2 small, 2 large (bottom)
1 small, 1 large (top)
1 small, 1 large (bottom)
1 small, 2 large (top)
1 small, 2 large (bottom)
N/A
0
1 small (top)
1 small (bottom)
1 large (top)
1 large (bottom)
2 large (top)
2 large (bottom)
1 small, 1 large (top)
1 small, 1 large (bottom)
1 small, 2 large (top)
1 small, 2 large (bottom)
Number of
top/bottom
segments
when reduced
Number of
top/bottom
segments
when expanded
As an example, to modify an MR 300 to be a 4-gang mud ring, you add one
small segment on the top and on the bottom. To modify the same MR 300 to
be a 2-gang mud ring, you replace the large segments on the top and bottom
with small segments.
4 Replace and install new segment assembly screws as necessary.
5. If necessary, enlarge the opening in the mounting surface.
6. If necessary, reinstall the mud ring in the mounting suface.
7. If necessary, reinstall the mounted device(s) in the mud ring.
