Special Applications, cont’d
MLC 104 Plus Series • Special Applications 5-8
PRELIMINAR
Y
To configure a single MLC 104 Plus Series’ input button to control the IRCM-DV+
and DVD-VCR player, follow this procedure:
1. Cable the MLC, input/output devices, and the PC as described in chapter 2,
“Installation.”
2. Create or open a Global Configurator (GC) project, and add an MLC to the
project, if that has not already been done. For instructions, refer to chapter 3
of the MLC 104 Plus Series Setup Guide or the GC help file.
3. In Global Configurator, add device drivers and assign them to the Display
control (RS-232 and IR) port. For instructions, refer to chapter 3 of the setup

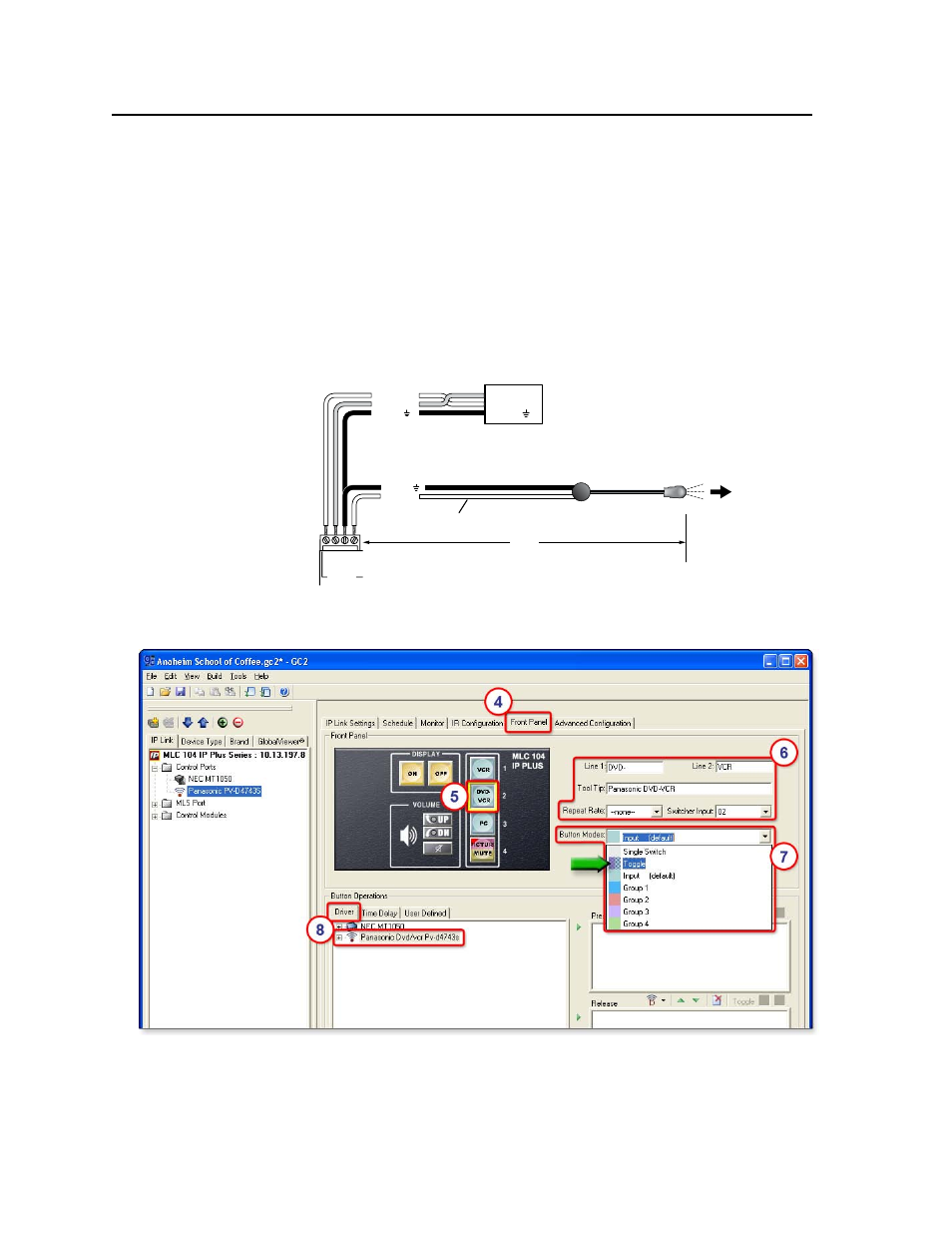

guide. See the diagram below to wire the MLC’s Display port, and place the
emitter head near the DVD-VCR player’s IR receiver.
Projector
Panel
MLC 104 Plus Series
Right Side Panel
To a Source’s
IR Receiver
Ground ( )
Receive (Rx)
Transmit (Tx)
Ground ( )
Receive (Rx)
Transmit (Tx)
Bidirectional RS-232
Ground ( )
IR Signal
Unidirectional IR Output
via White Striped Wire
IR Emitter
100'
(30.5 m)
G
RO
U N
D
IR
O
U T
Tx R
x
DISPLAY
RS-232/IR
4. Click on the Front Panel tab.
5. Click the input button (button 2 for this example) that will be used with the
DVD-VCR player.
6. If desired, type in text for the onscreen button label, the tool tip (text that
appears when the mouse pointer hovers over that button in GlobalViewer),
and assign an input to the button.
