Control
User Mode
The first of the Control Web pages is User Mode, which is a representation of the
controller’s front panel buttons, volume control, and any optional control modules
(IRCMs, RCMs, ACMs) that are part of the system. Clicking on a button on screen
emulates a button press on the corresponding device. This page is accessible to
both administrators and users.
From the factory, the MLC 104 IP Plus comes with a preloaded Web page with
a basic representation of the MLC’s front panel controls and the buttons of any
optional attached control modules. See the example below.

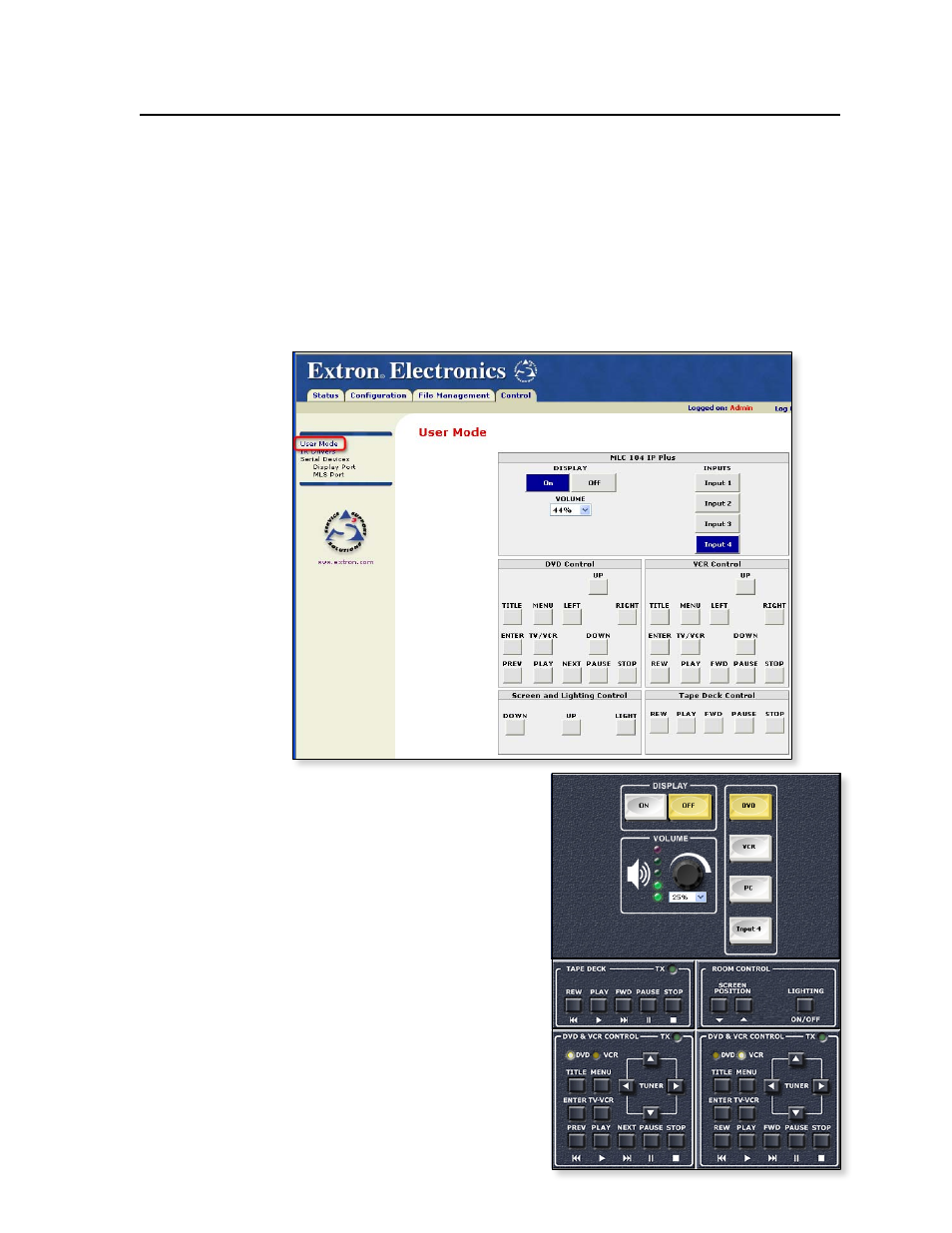

Typical User Mode page
Web pages that show a more
realistic representation of the MLC’s
front panel and of control modules
(as shown at right) are included with
the configuration software. These
pages (over 200 files) can be
uploaded into the MLC if you select
Upload Enhanced Web Pages
from
the Advanced Configuration page in
Global Configurator before you
build the configuration and load it
into the MLC.
Enhanced User Mode page
