Panels and Cabling
Host/Config port cabling
CONFIG
DISPLAY
VOLUME
MLC 104 IP PLUS
ON
VCR
DVD
PC
OFF
1
2
3
4
MLC 104 Plus Series
Front Panel
1
a

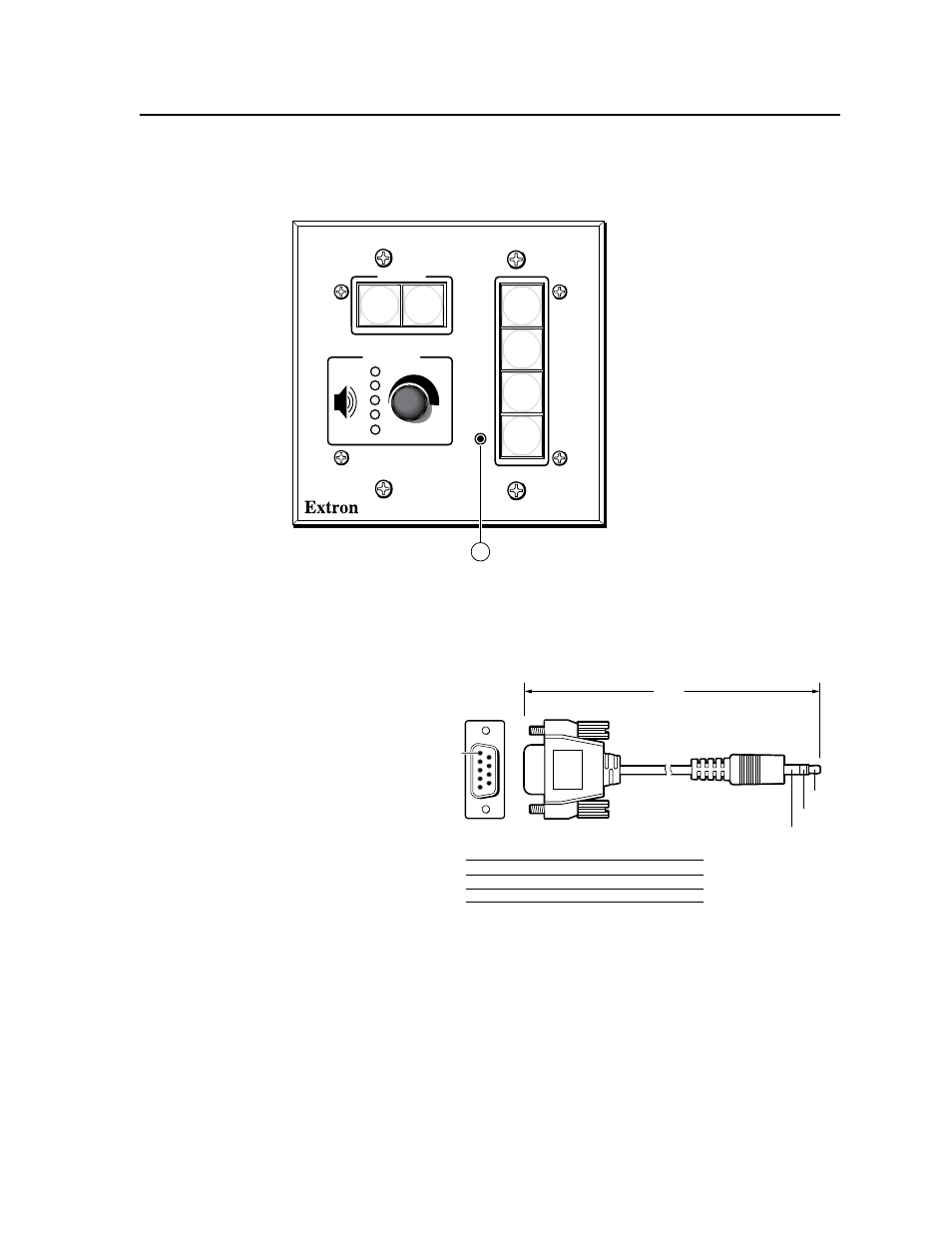

Front panel Config (host control) port — For MLC configuration and control,
connect a Windows
®
-based PC or an RS-232 control system to the MLC via
this 2.5 mm mini stereo jack. This port is accessible even after the MLC has
been installed and cabled. The optional 9-pin D to 2.5 mm stereo mini TRS
RS-232 cable (part #70-335-01, shown below) can be used for this connection.
RS-232 protocol:
• 38400 baud
• 1 stop bit
• no parity
• 8 data bits
• no flow control
N
This configuration port requires 38400 baud communication. This is a higher
speed than many other Extron products use. Global Configurator software
may automatically set the connection for the appropriate speed. If using
HyperTerminal or a similar application, make sure the PC or control system
connected to these ports is set for 38400 baud.
N
For the IP models, Extron recommends configuring and controlling the MLC via
the LAN connector on the right side panel. Ethernet connections are faster and
more reliable.
6 feet
(1.8 m)
Part #70-335-01
9DBF-2.5mm TRS cable_031504.eps
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D
Connection
TRS Plug
Pin 2
Computer's RX line
Tip
Pin 3
Computer's TX line
Ring
Pin 5
Computer's signal ground
Sleeve
