A-17 MLC 104 Plus Series • Reference Material
PRELIMINAR
Y
MLM 104 6GWP
MLM 104 6GWP

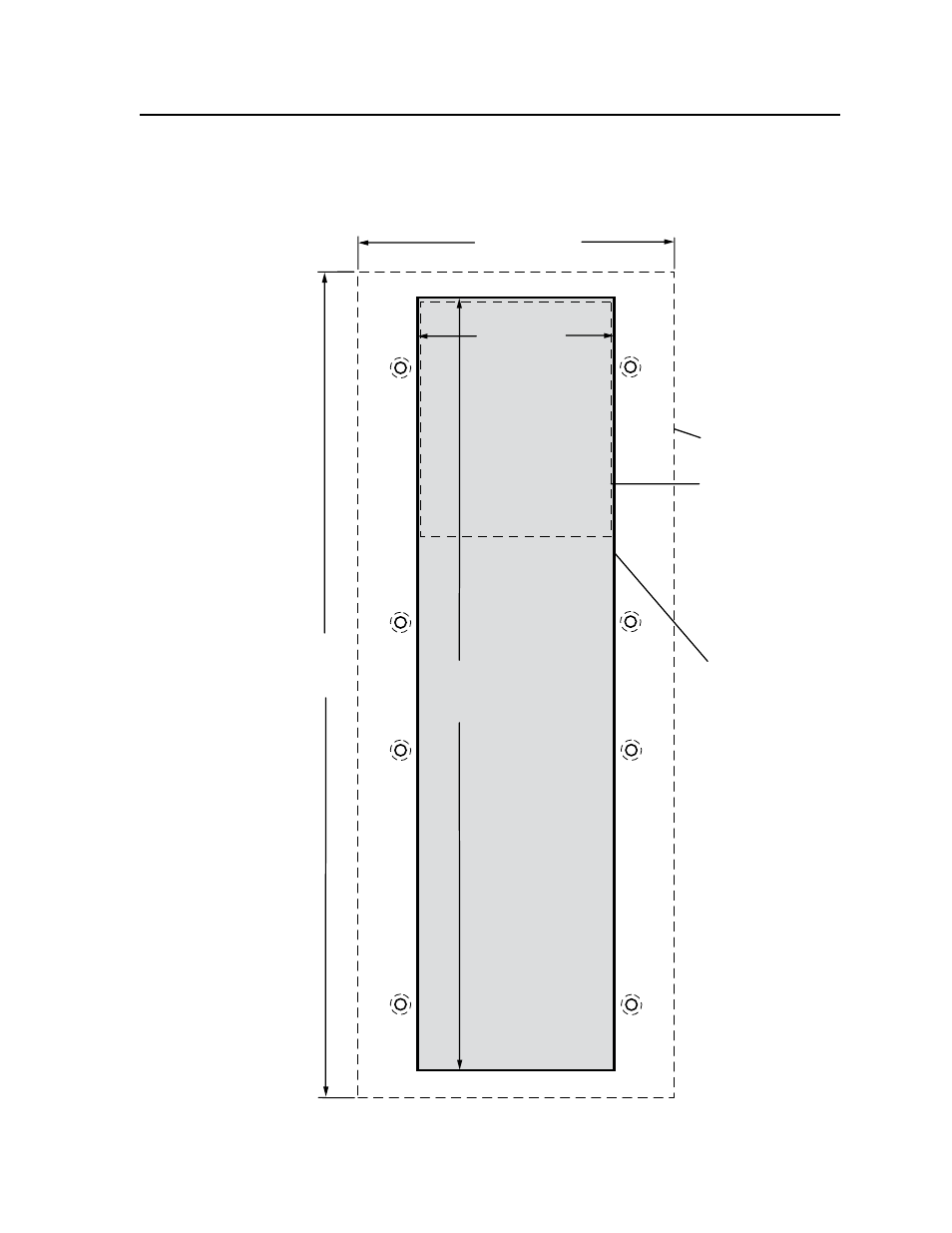

Cut-Out Template for Extron's
TEMPLATE IS NOT FULL SIZE.
To install the
MLM 104 6GWP
directly into furniture,
cut along this line.
Top Panel
2.8" (7.1 cm)
11.0"
(28 cm)
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
Location of
MLC 104 IP Plus
4.5" (11.43 cm)
11.75"
(29.85 cm)
N The solid
lines on the
templates
define the
cut‑out
area, not the
dashed line.
