Reference Material, cont’d
MLC 104 Plus Series • Reference Material A-16
PRELIMINAR
Y
MLM 104 LAAP
2.8" (7.1 cm)
7.9"
(20.0 cm)
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
MLM 104 LAAP
10"
(25.4 cm)

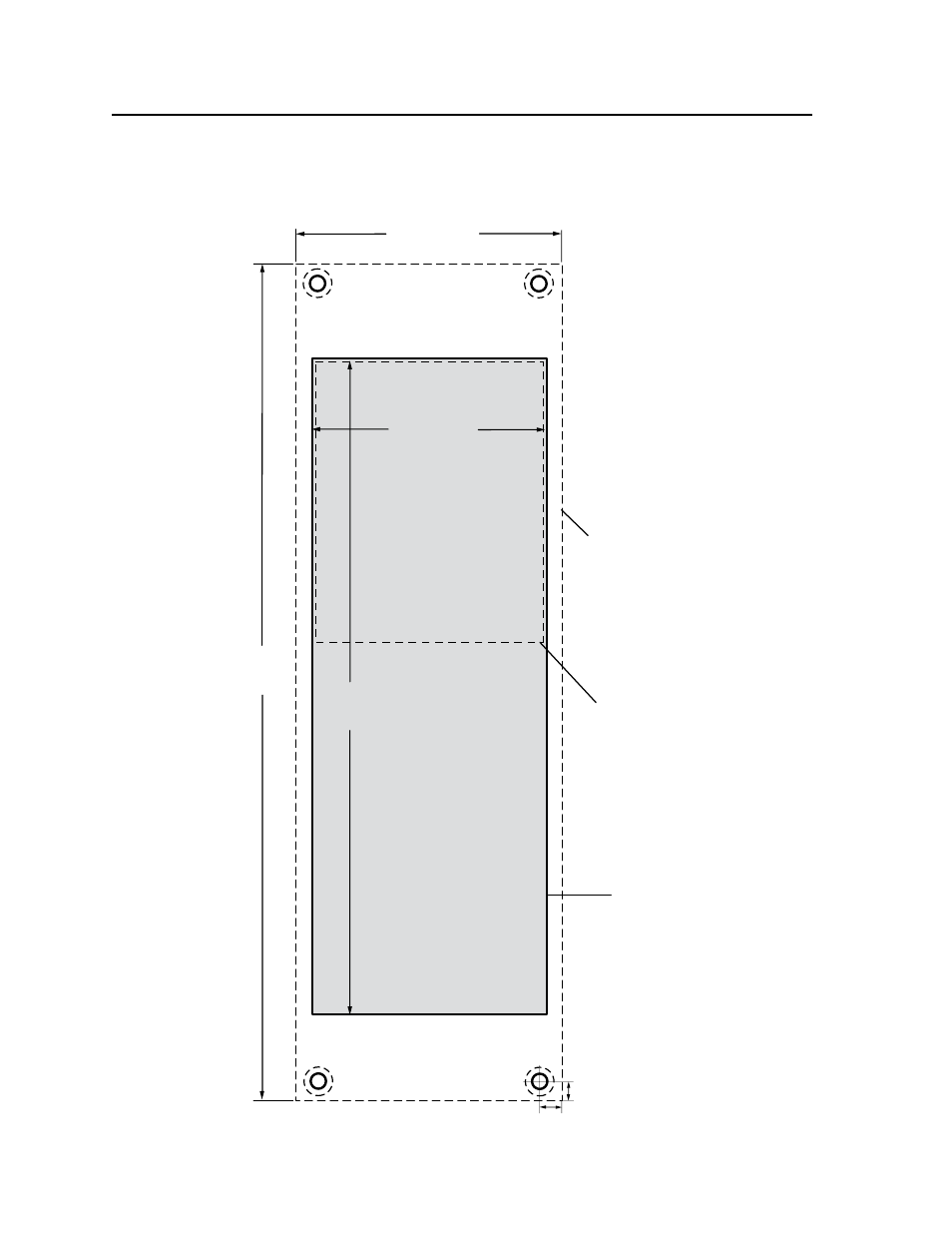

Cut-Out Template for Extron's
TEMPLATE IS NOT FULL SIZE.
To install the MLC 104 IP Plus
and MLM 104 LAAP
directly into furniture,
cut along this line.
Top Panel
Location of MLC 104 IP Plus
3.15" (8.0 cm)
.295" (.75 cm)
.250" (.64 cm)
N The solid lines
on the templates
define the cut‑
out area, not the
dashed line.
