A-13 MLC 104 Plus Series • Reference Material
PRELIMINAR
Y
Cut-out Templates
This section includes templates for the MLC 104 IP Plus/MLC 104 Plus,
MLC 104 IP Plus AAP, MLC 104 IP Plus DV+, MLC 104 IP Plus L; and for the
MLM 104 LAAP and MLM 104 6GWP faceplates. Templates for MLM 104 IP Plus
Series faceplates are available in the MLM 104 Faceplates Installation Guide, which you
can download from http://www.extron.com .
N The solid lines on the templates define the cut‑out area, not the dashed line.

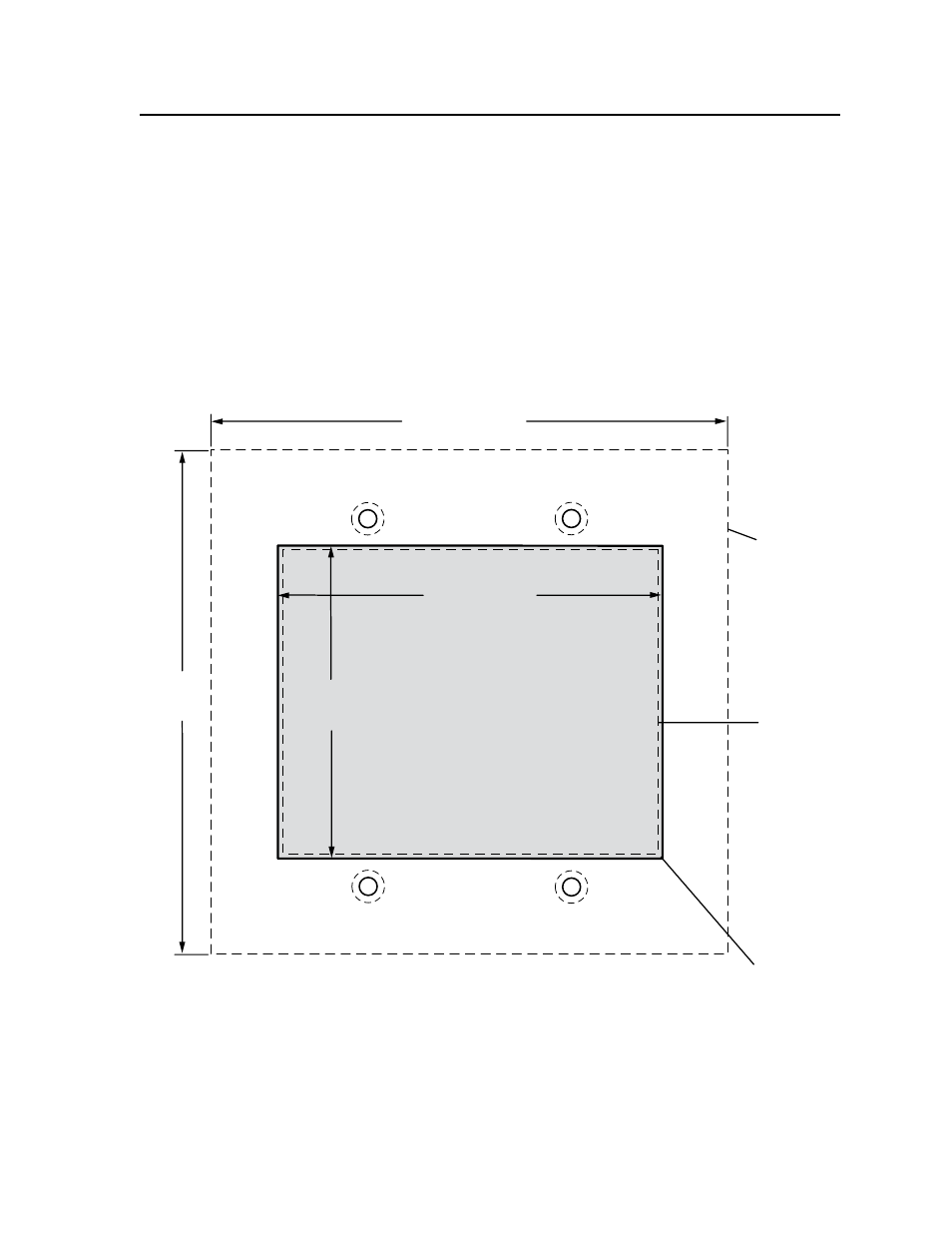

MLC 104 Plus and MLC 104 IP Plus
MLC 104 Plus & MLC 104 IP Plus
Cut-Out Template for Extron's
TEMPLATE IS NOT FULL SIZE.
4.50"
(11.43 cm)
4.60" (11.68 cm)
To install the MLC 104 Plus
and MLC 104 IP Plus
directly into furniture,
cut along this line.
Top Panel
2.8"
(7.1 cm)
3.50" (8.90 cm)
SURFACE CUT-OUT AREA
FOR FURNITURE MOUNT
Location of
MLC 104 Plus and
MLC 104 IP Plus
