Volume control software setup
To configure the MLC to work with the MLA-VC10 volume controller, perform
these steps:

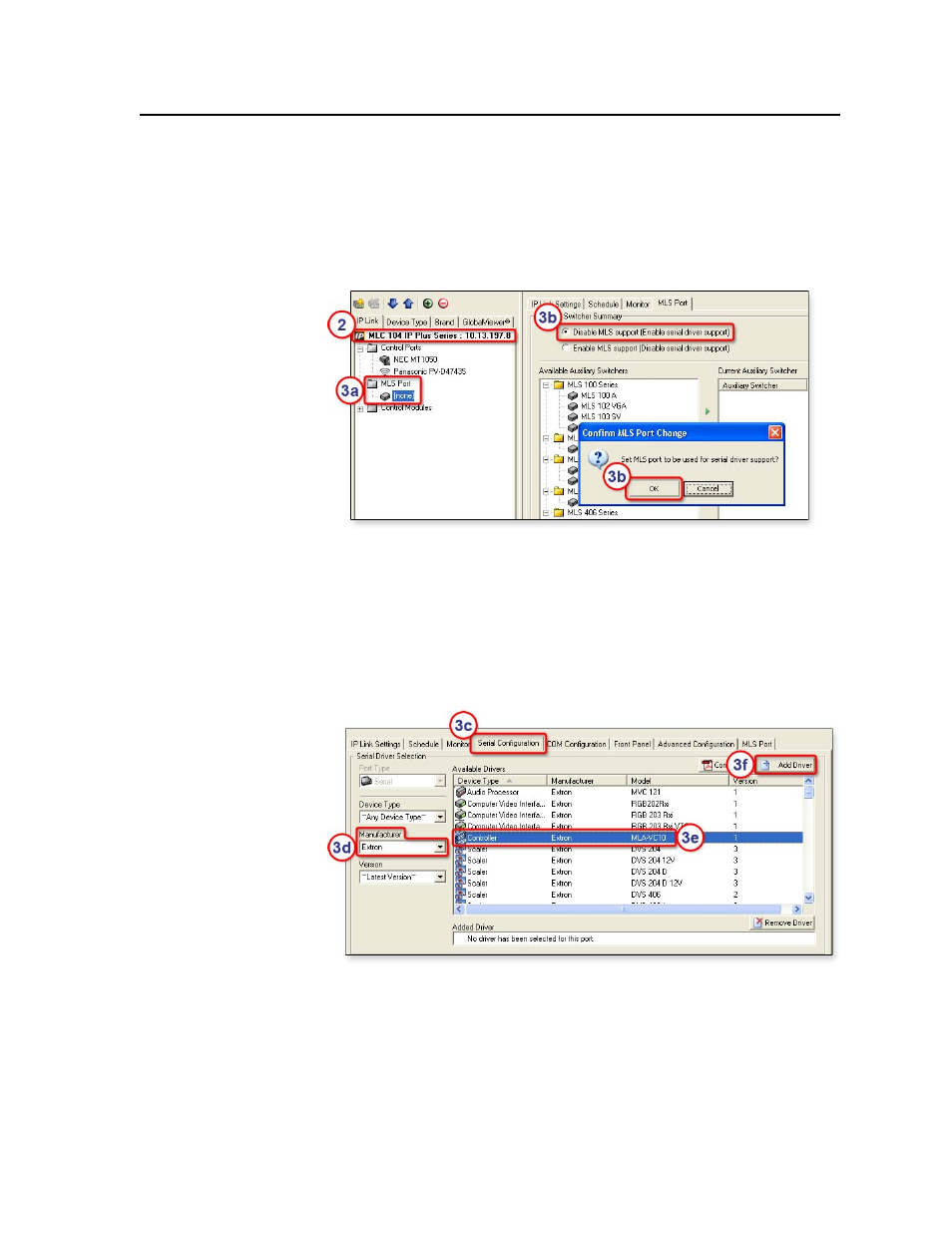

1. Start the Global Configurator software and open a project that includes an
MLC 104 Plus Series unit.
2. In the IP Link tree view window, click on the MLC to be configured.
3.
Configure the MLS port with the correct driver.
a.
Click on MLS Port. The MLS Port tab displays in the right side of the
window.
b. Click the Disable MLS support (Enable serial driver support) radio
button. If the Confirm MLS Port Change window appears, click OK.
c. Click on the Serial Configuration tab.
d. Select the manufacturer (Extron, in this example).
e. Locate and select (click on) the model name (MLA-VC10) in the Available
Drivers area.
f. Click Add Driver. The MLA-VC10’s name appears in the Added
Drivers field, and the commands available in its driver appear in the
GlobalViewer area at the bottom of the window.
g. If desired, in the Driver Command and State Configuration area (near the
bottom of the screen) you can make the following changes, which will
